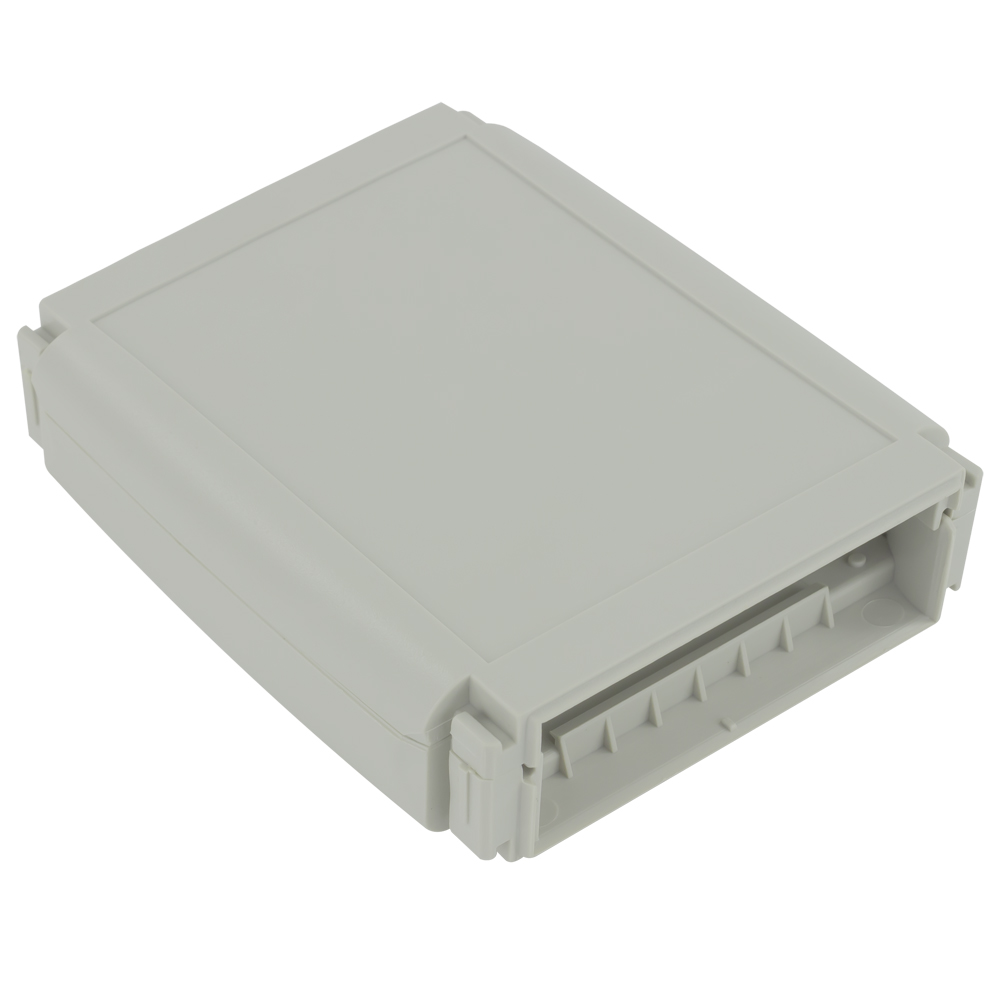

CHH642BGY - 64 Series End Cap ABS Handheld Enclosure, Battery Door, Grey, ABS UL94-V0, 100x80x30mm

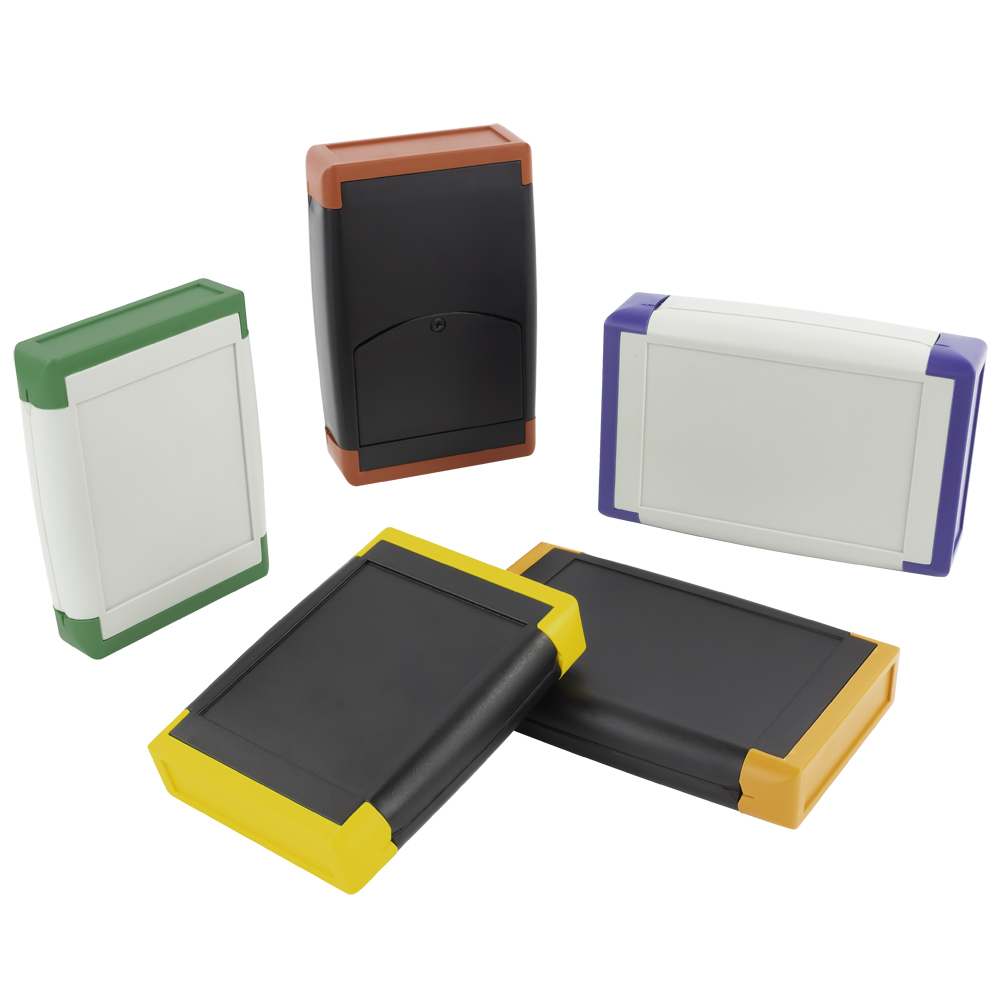

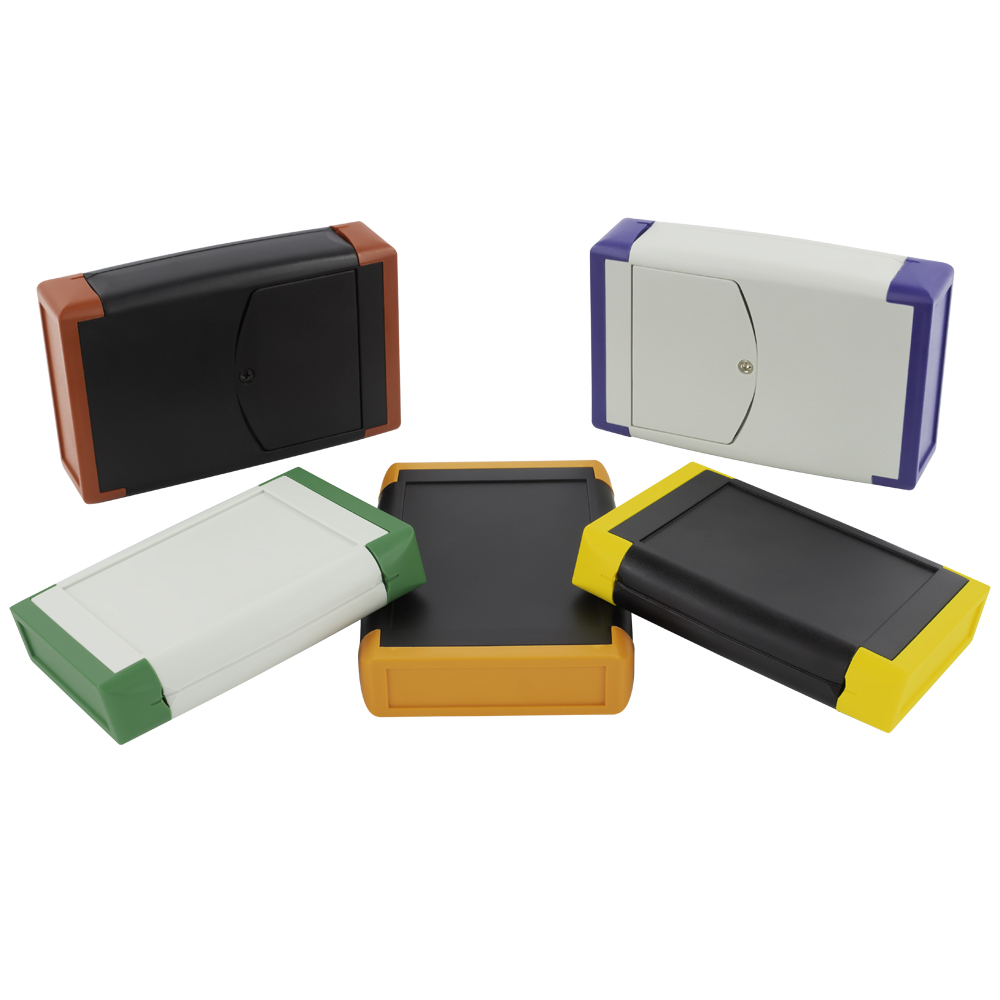

64 Series clip together handheld enclosure with recessed faces for overlays component entry or keypads. Select from different coloured end caps.
- Moulded in high grade ABS, UL94-V0
- Snap-fit base & lid assembly, via end caps
- Battery compartment lid M3 retaining screw
- Recesses in lid, base and end caps for membrane keypads or overlays

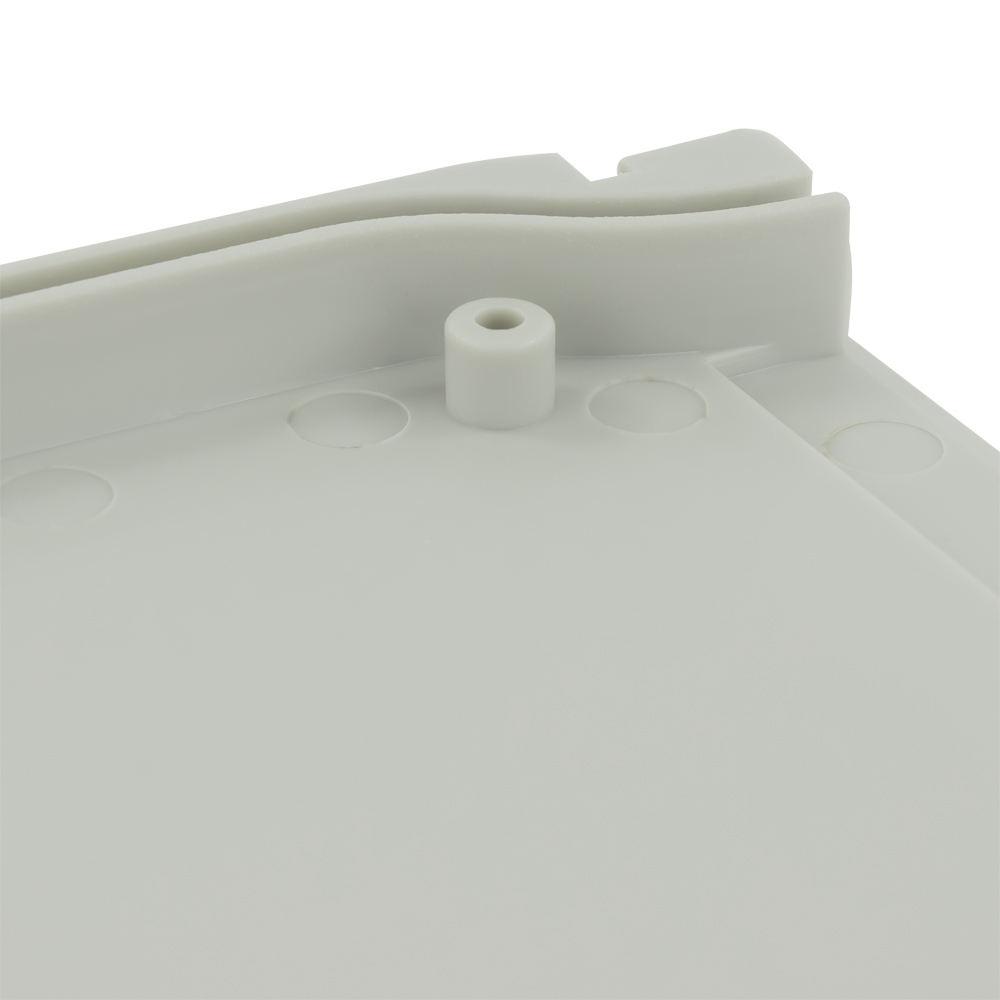

- PCB pillars in lid and base
- 64 series has been designed to meet the requirements of IP54
- Or additionally, IP65 with the optional gasket accessory
- End Caps sold separately
| External Length (mm) | 100 |
| External Width (mm) | 80 |
| External Height (mm) | 30 |
| Weight (G) | 58 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP62 |
| Special Features | Battery Compartment |
| Brand | CamdenBoss |
| Size | 100 x 80 x 30 |
| Battery Door | Yes |
| Battery Compartment Type | AA or PP3 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
