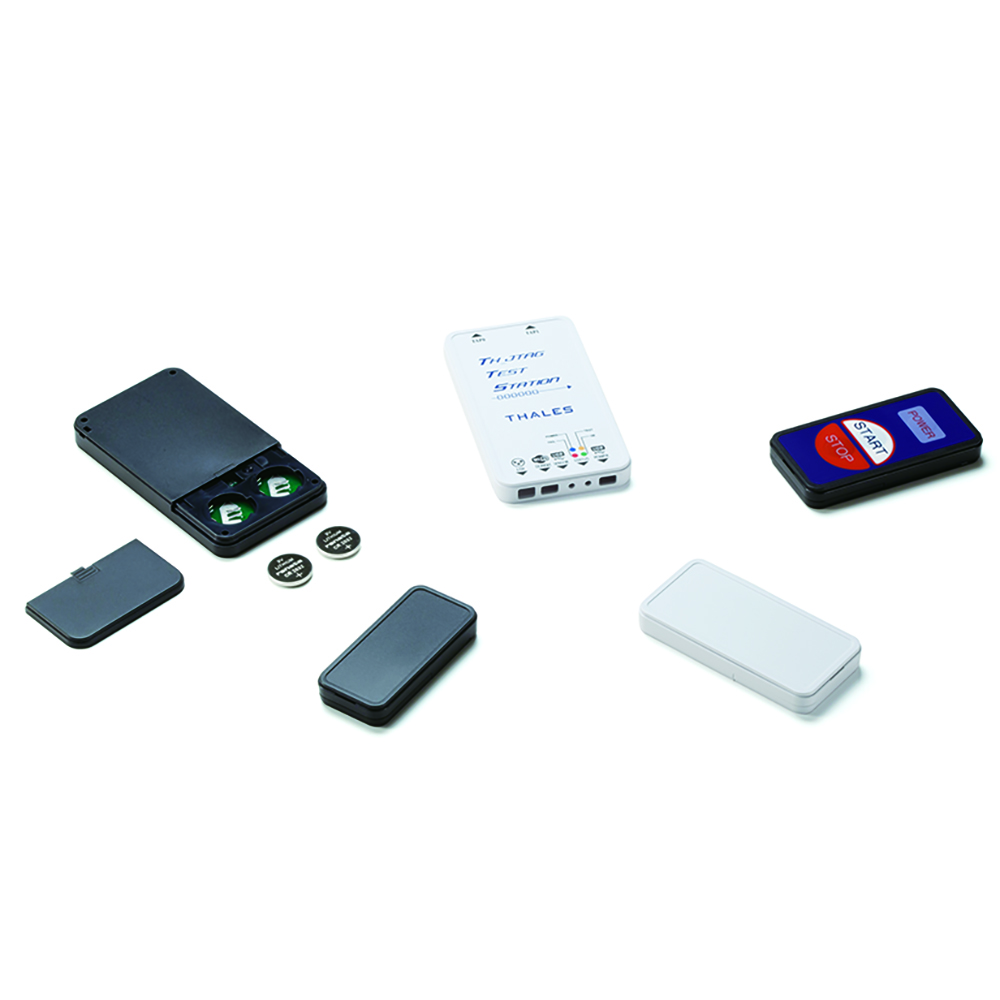

CHH803BWH - 80 Series Slim Plastic Handheld Enclosure, white with battery compartment to accommodate 2 x CR2032 batteries, Size 3 115x63x12mm

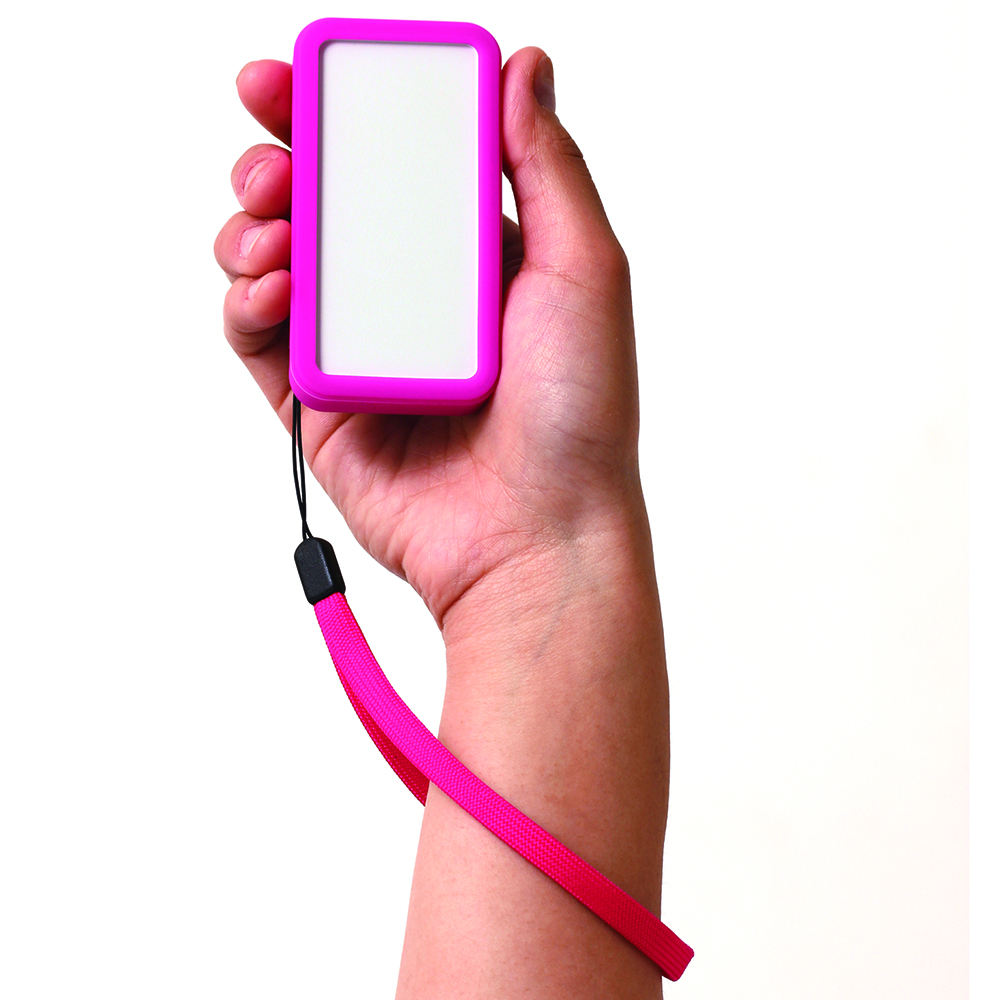

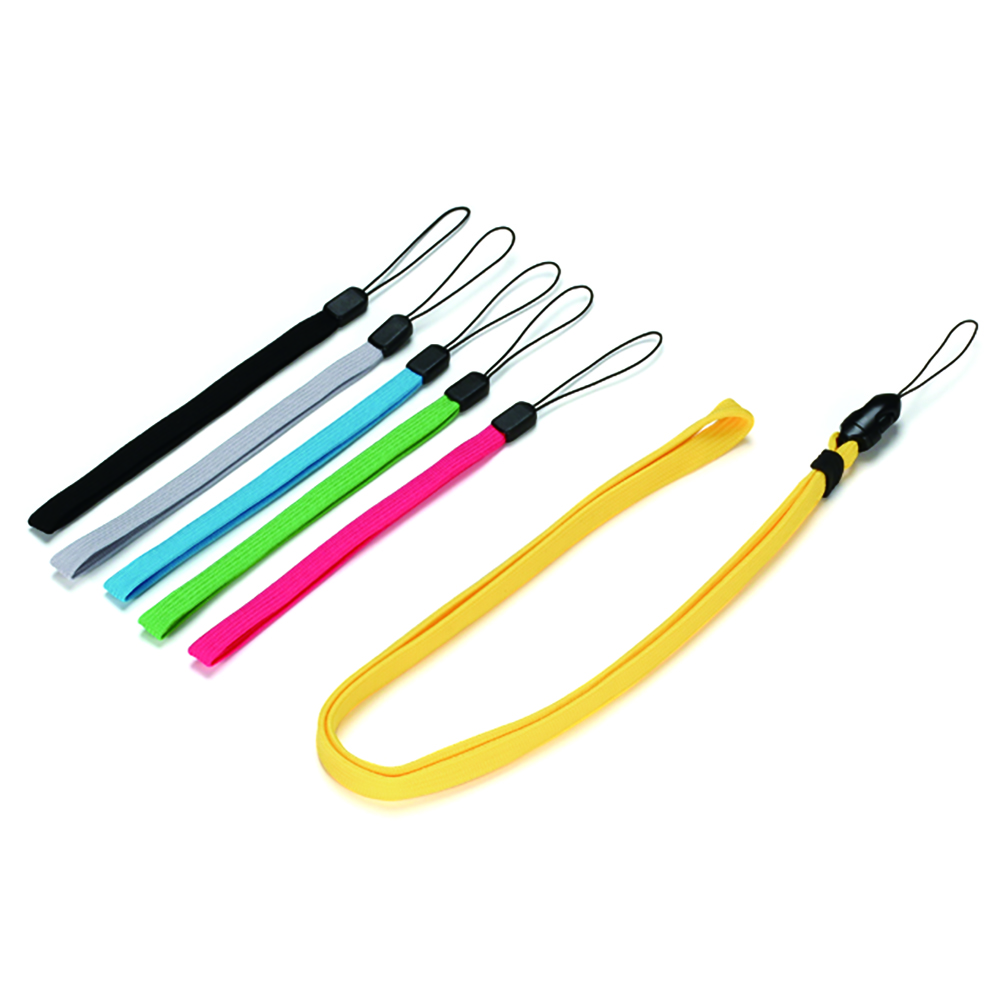

80 Series Slim Plastic Handheld Enclosure is available in two colours, with and without a battery compartment. Accessories include protective silicon boots and neck and wrist straps in a variety colours
- Moulded in UL94-HB ABS

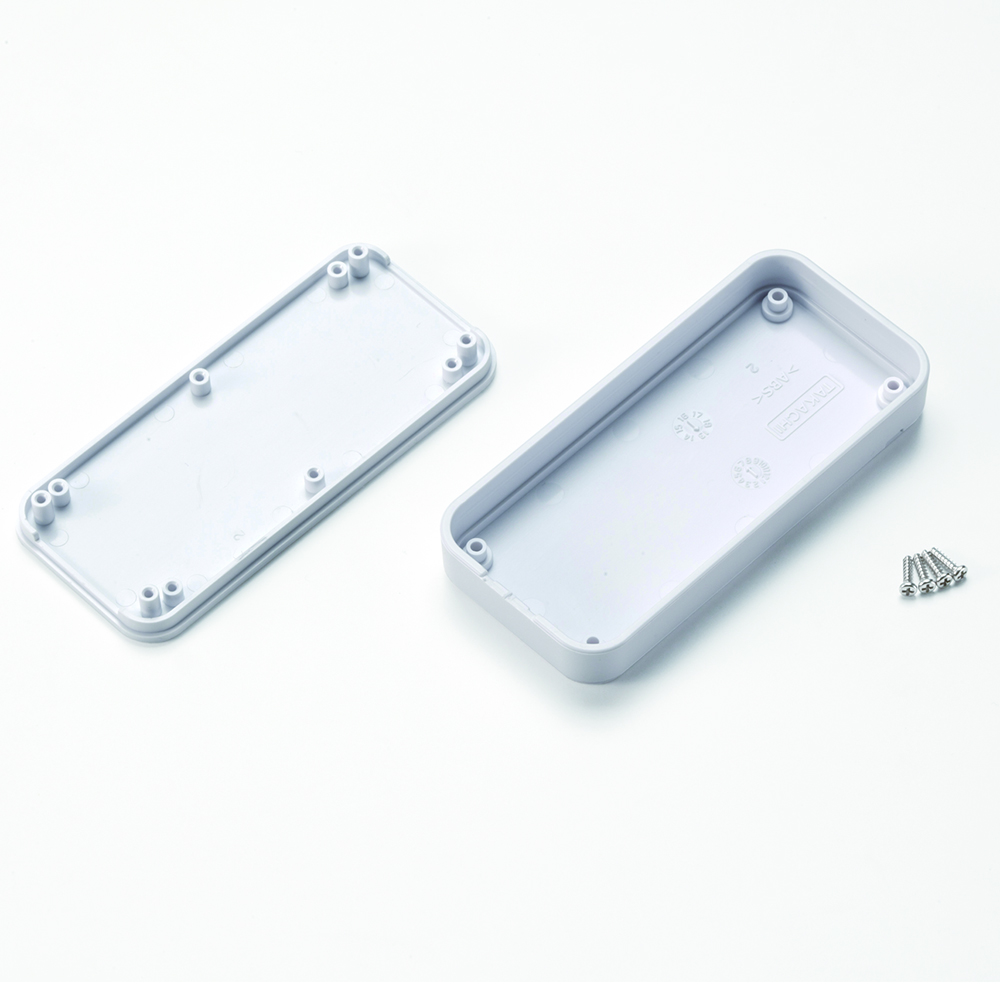

- Lid mounted by four self-tapping screws

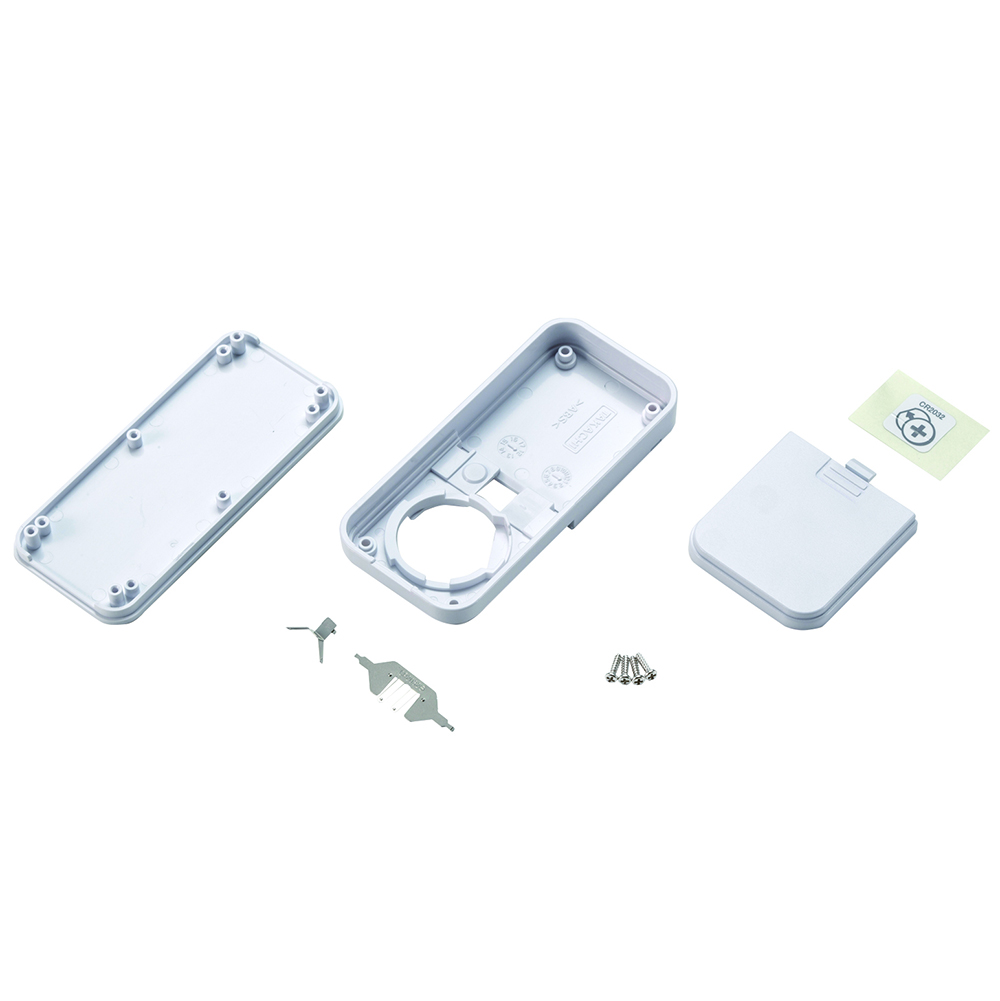

- Sliding battery compartment lid options for a CR 2032 battery (contacts included)
- Three sizes available
- Optional rubber case, open or closed variations
- Recess in base for product labels, keypads and overlays
- 80 series has been designed to meet the requirements of IP40
| External Length (mm) | 115 |
| External Width (mm) | 63 |
| External Height (mm) | 12 |
| Internal Length (mm) | 110 |
| Internal Width (mm) | 58 |
| Internal Height (mm) | 5 |
| Weight (G) | 33 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | White |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP40 |
| Brand | Takachi |
| Size | 115 x 63 x 12 |
| Battery Door | Yes |
| Battery Compartment Type | 2x CR2032 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
