CHH878DGD - 87 Series Silicone Cover Handheld Enclosure, Dark Grey, 6x AAA Battery Compartment, Size 8, 145x96x27mm

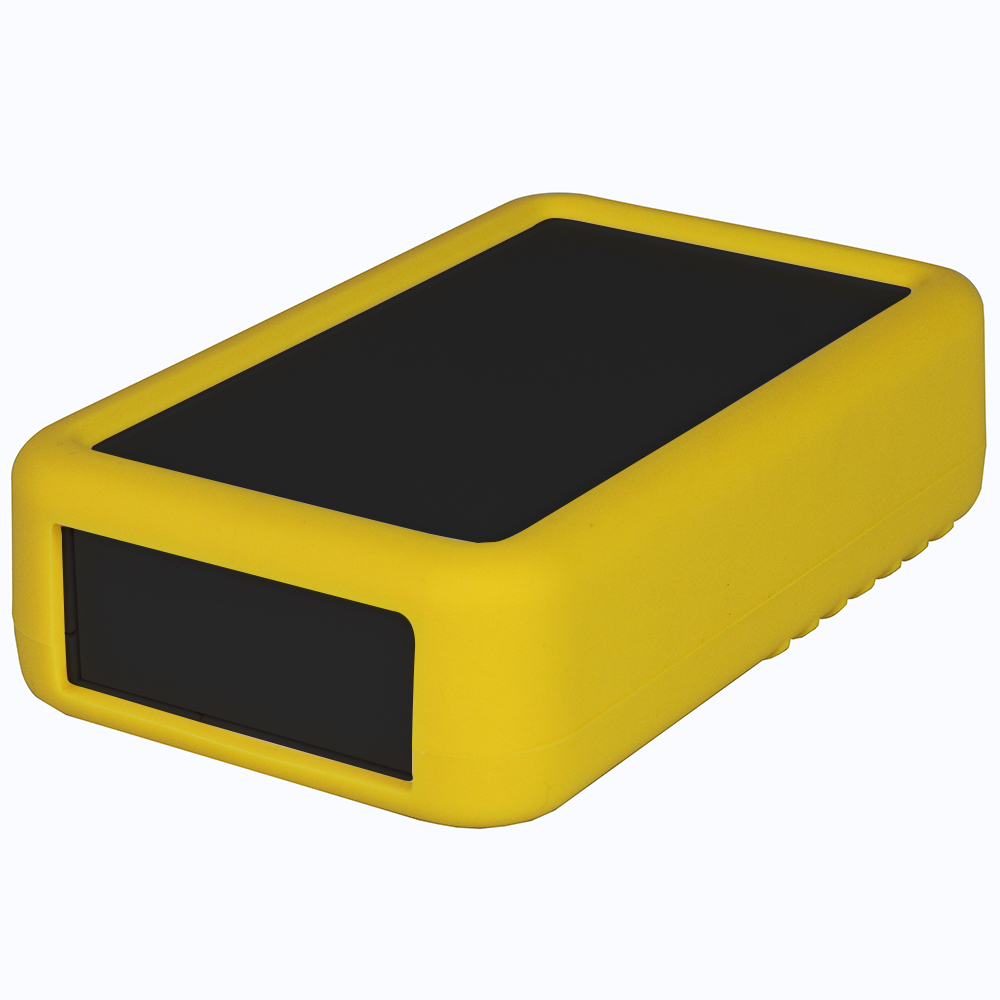

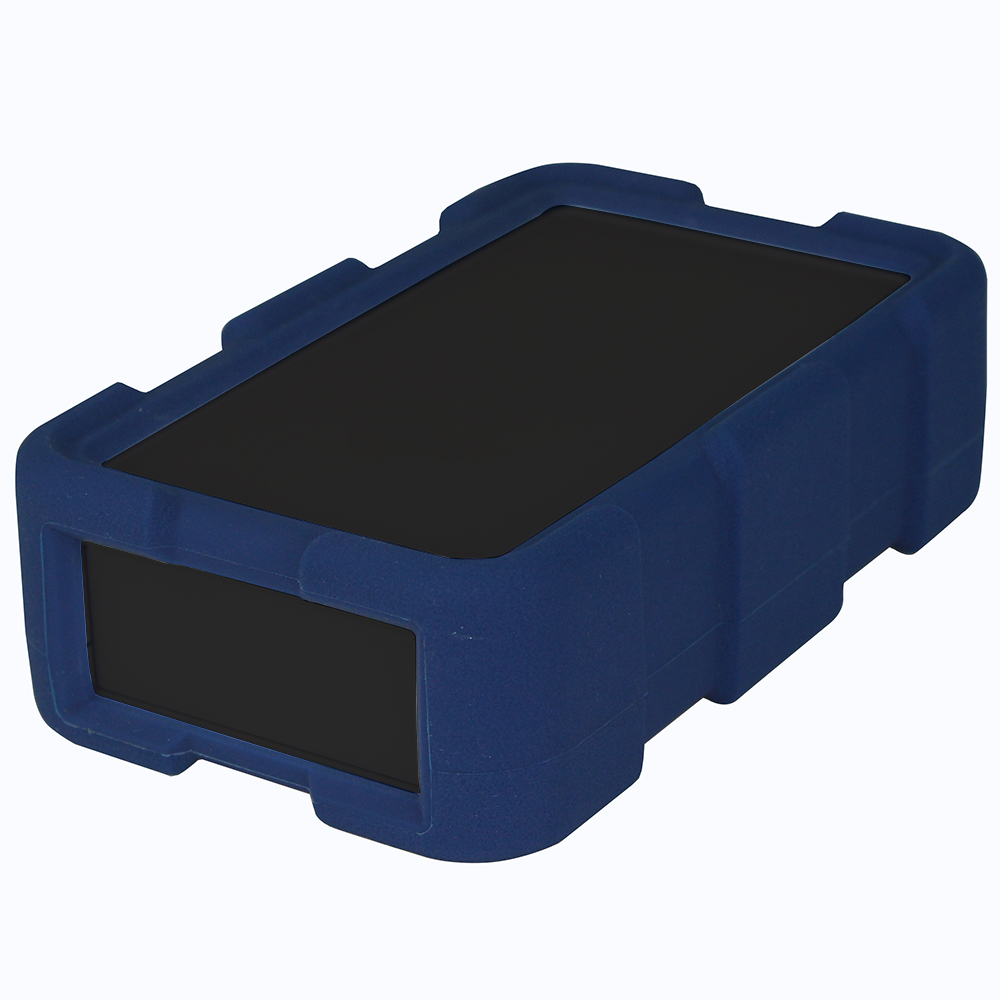

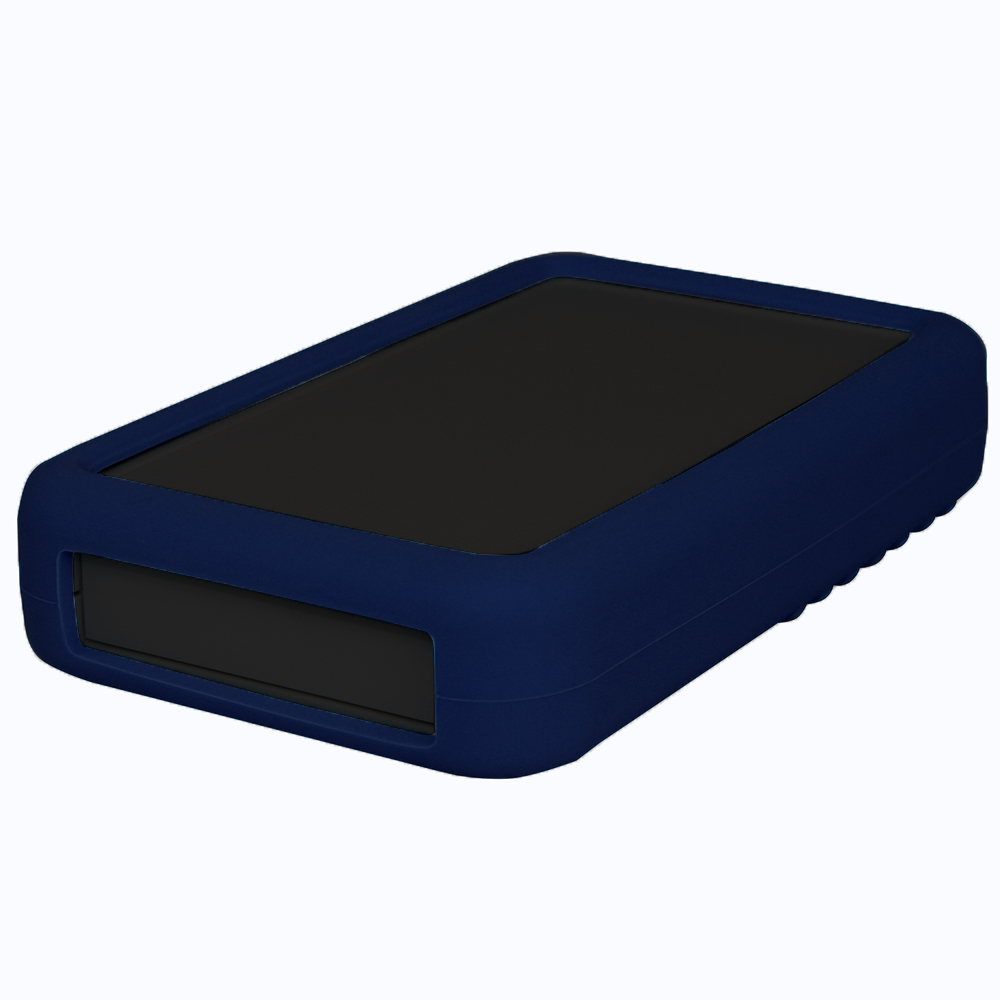

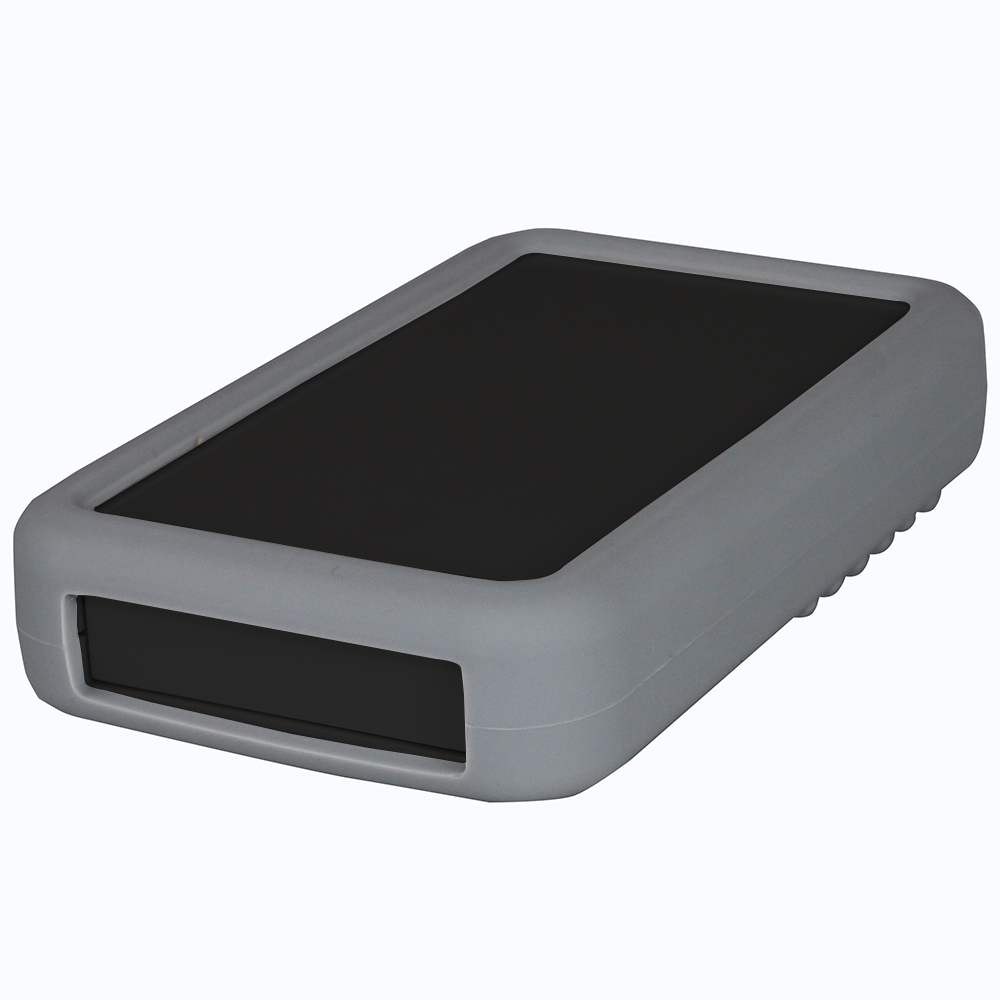

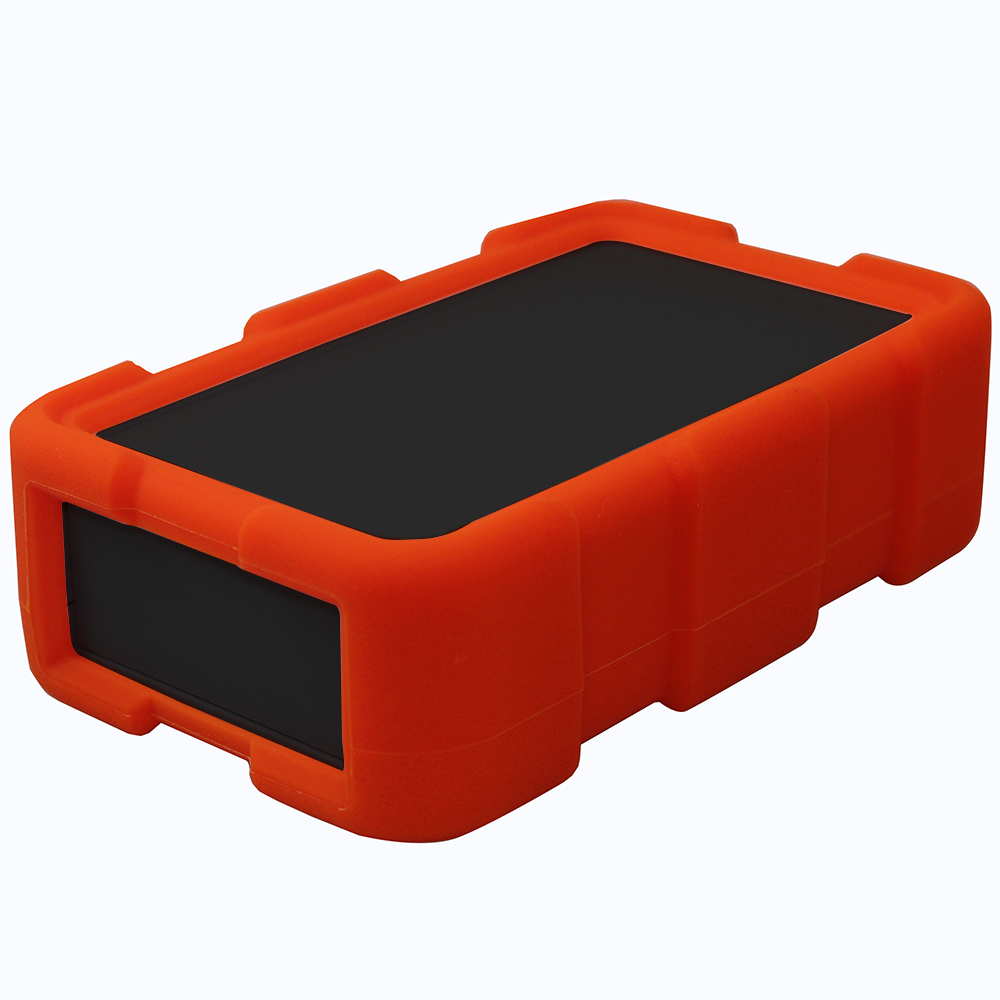

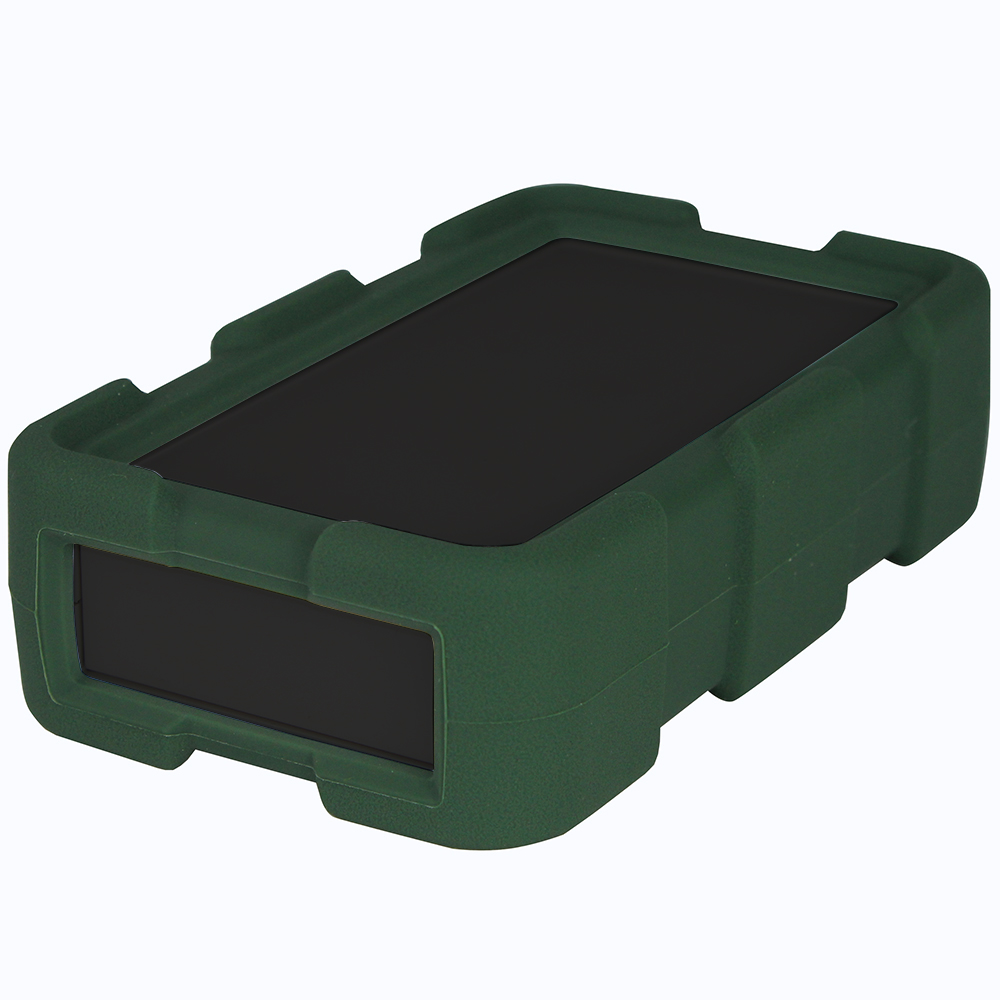

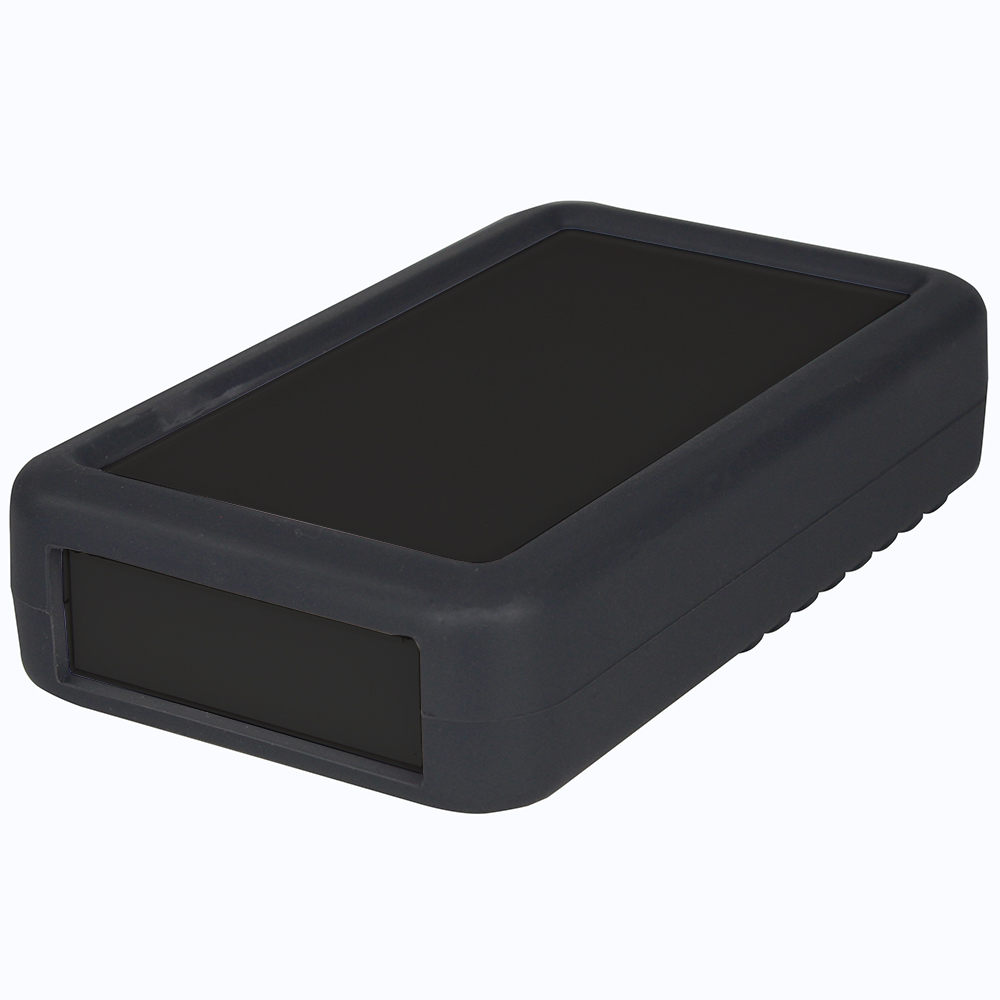

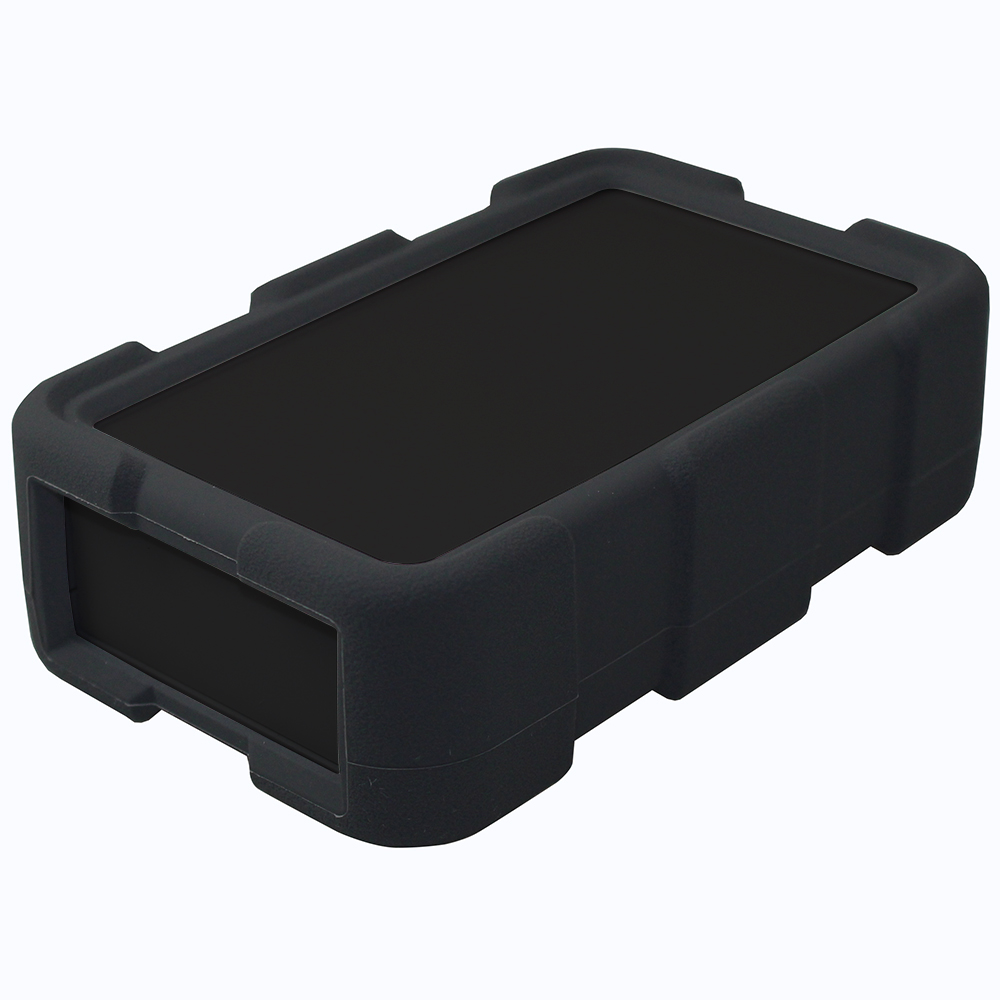

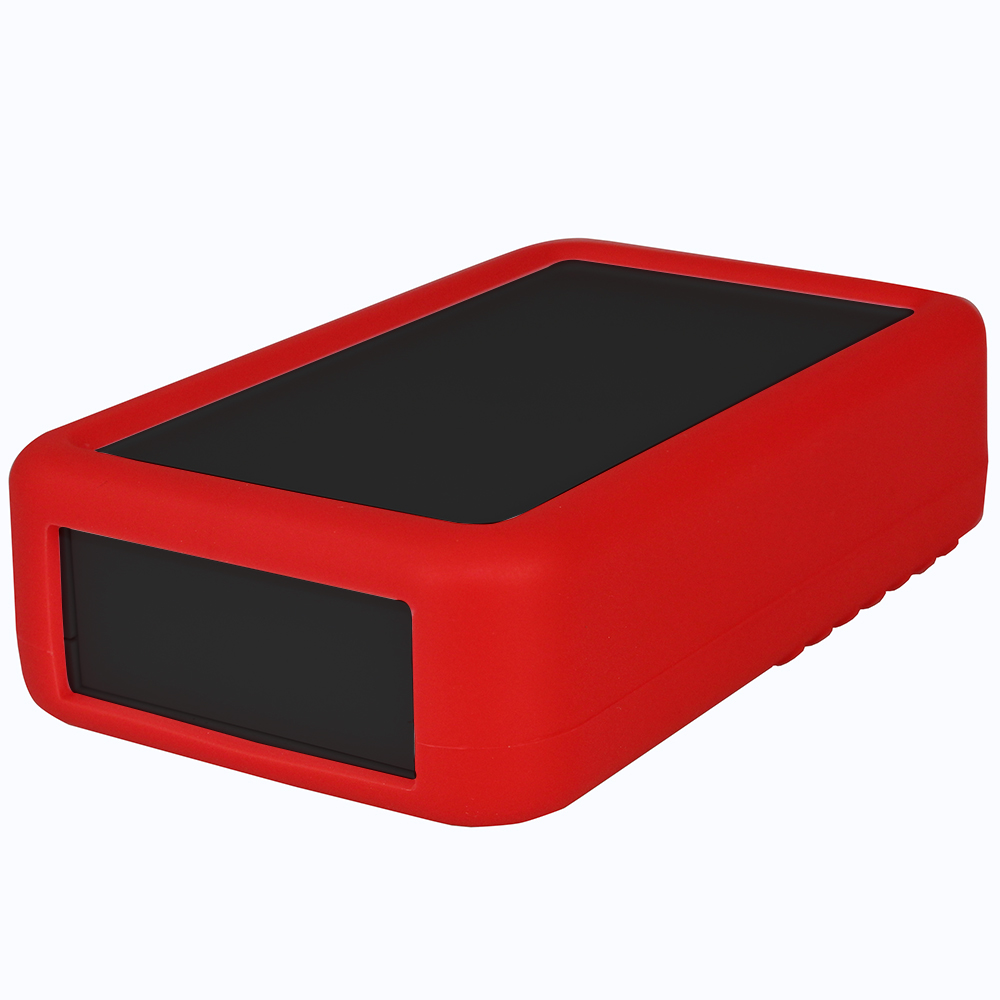

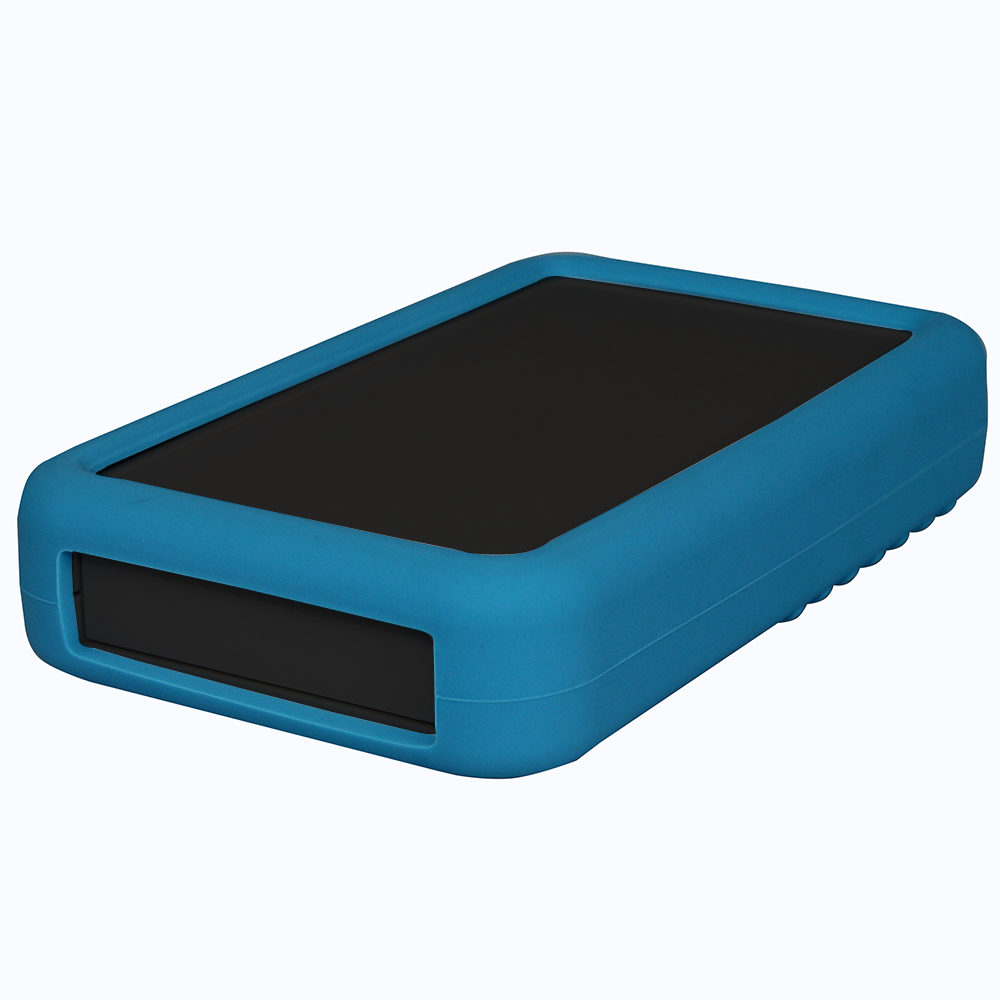

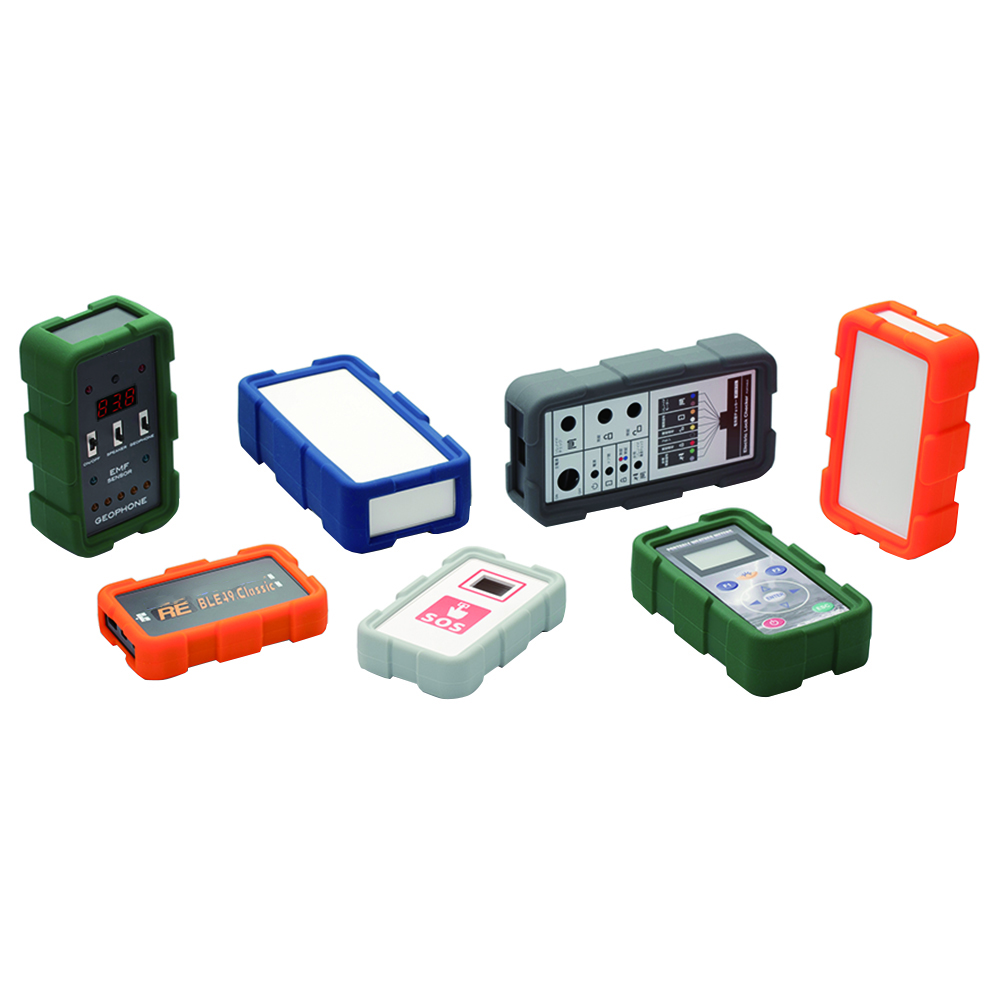

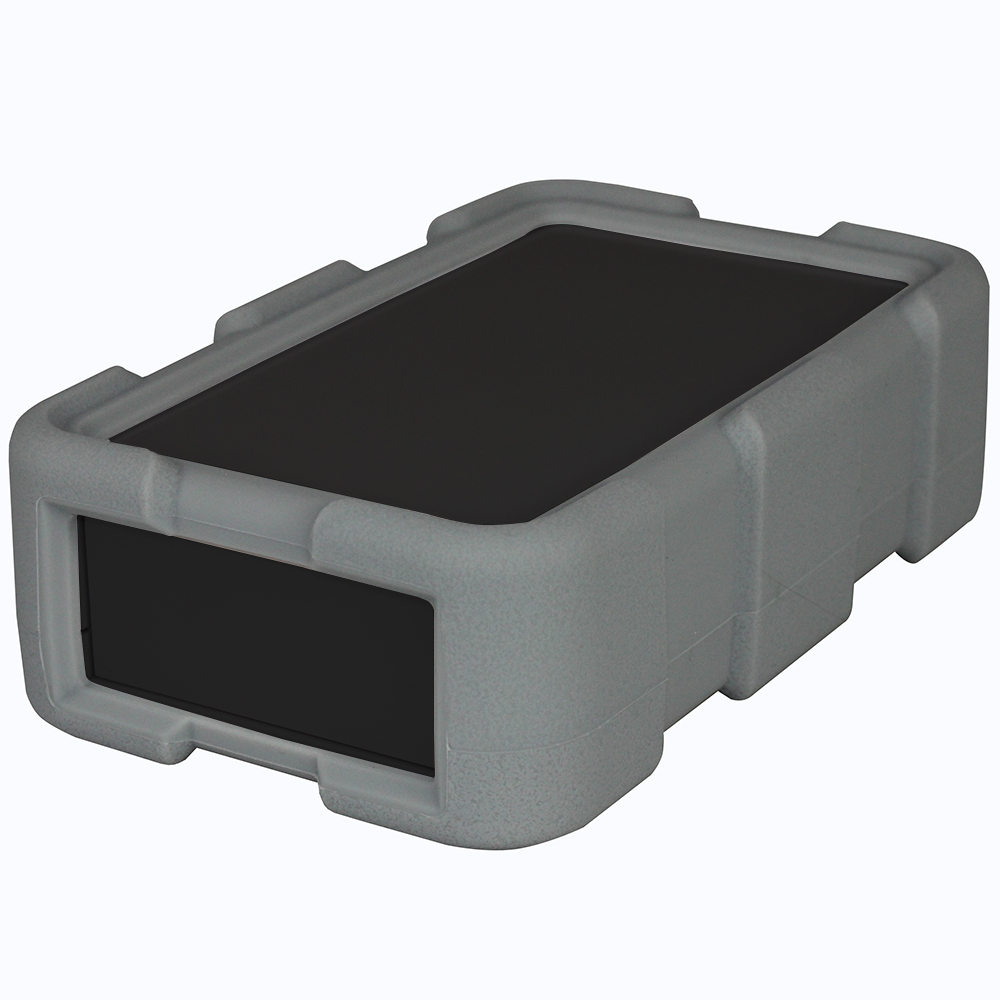

A high impact ABS handheld enclosure manufactured in UL94-V0. Protective silicon boots are available in a variety of colours, or as a shockproof version. Ideal for wireless portable devices in IIoT factory environments

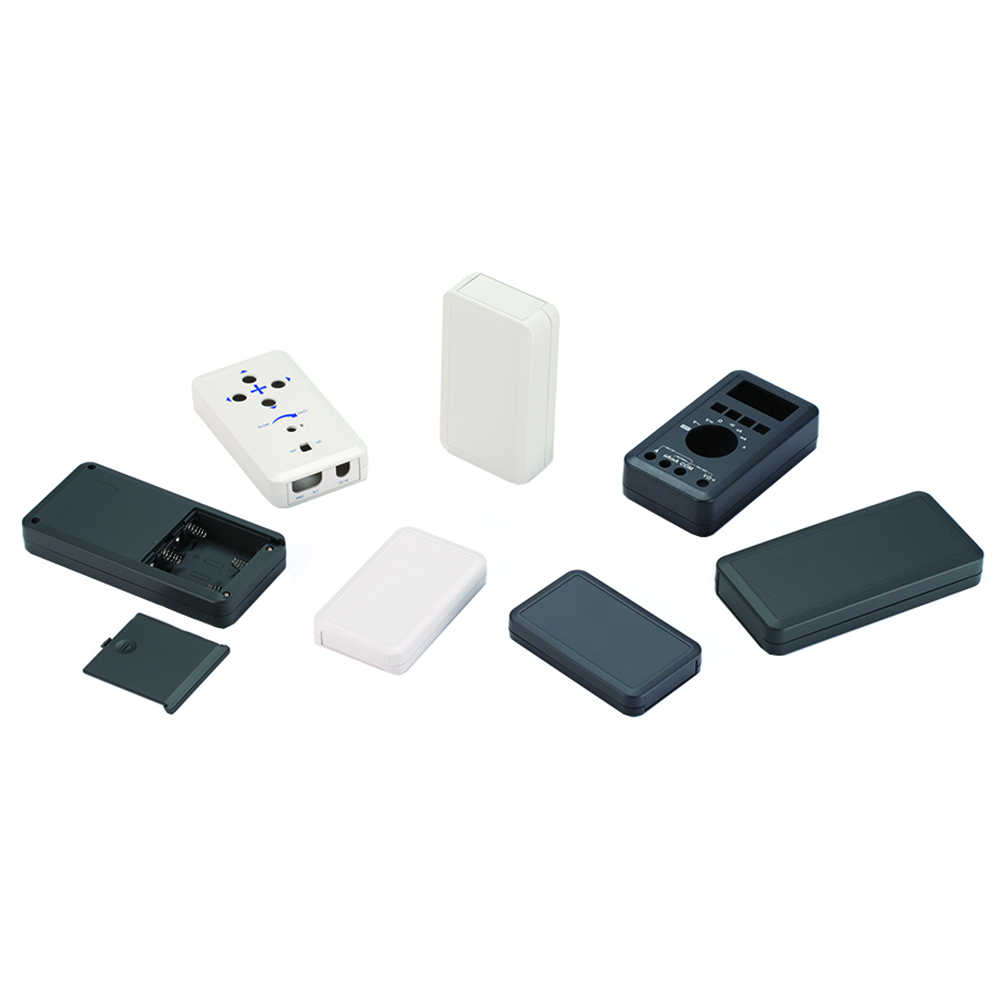

- Available in nine sizes, with or without moulded battery compartments
- Recessed front for keypads and labels
- Removable end panel
- Battery contacts supplied

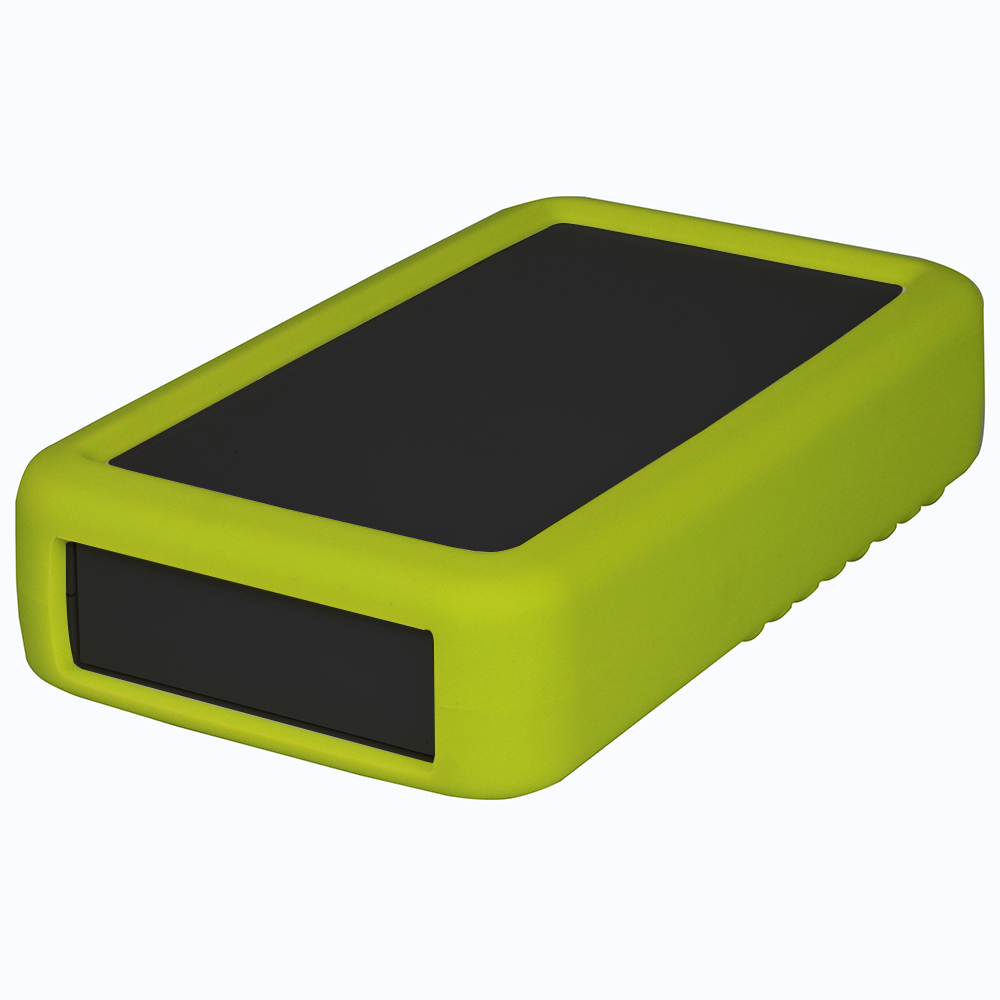

- Silicone cover accessory available
- Available in two colours: off-white & dark grey
- 87 series has been designed to meet the requirements of IP40
| External Length (mm) | 145 |
| External Width (mm) | 96 |
| External Height (mm) | 27 |
| Weight (G) | 141 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Dark Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP40 |
| CE Approval | Yes |
| UL Approval | Yes |
| Brand | Takachi |
| Size | 145 x 96 x 27 |
| Battery Door | Yes |
| Battery Compartment Type | 6x AAA |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
