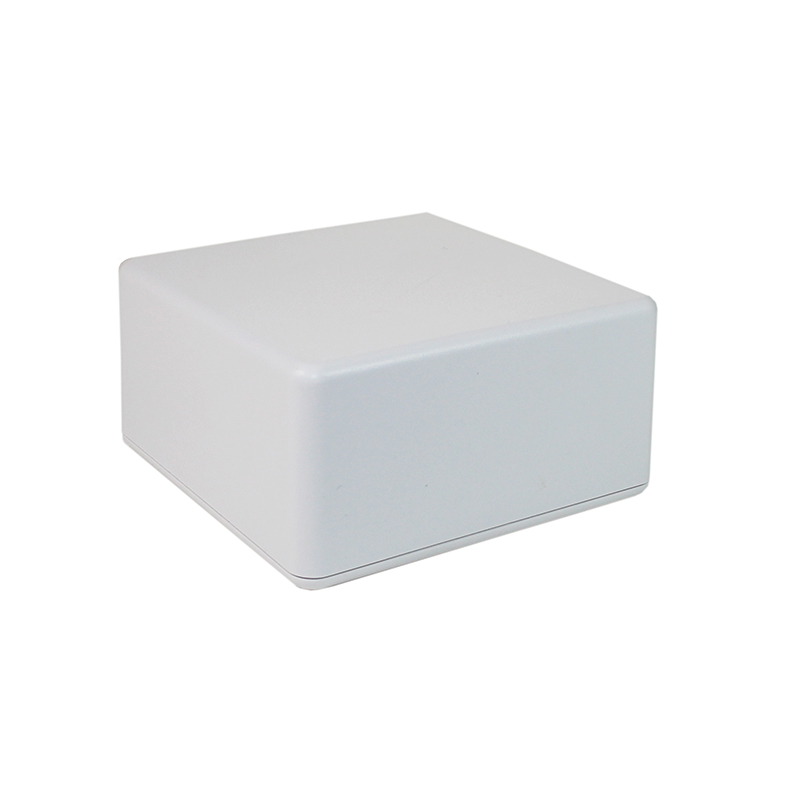

CUE8214WH - 82 Series Multipurpose ABS Enclosure, White, ABS UL94-V0, Size 14, 80x80x40mm
The 82 Series Multipurpose ABS Enclosure is available in either a black HB or white V1 and V0 material, for multipurpose indoor applications

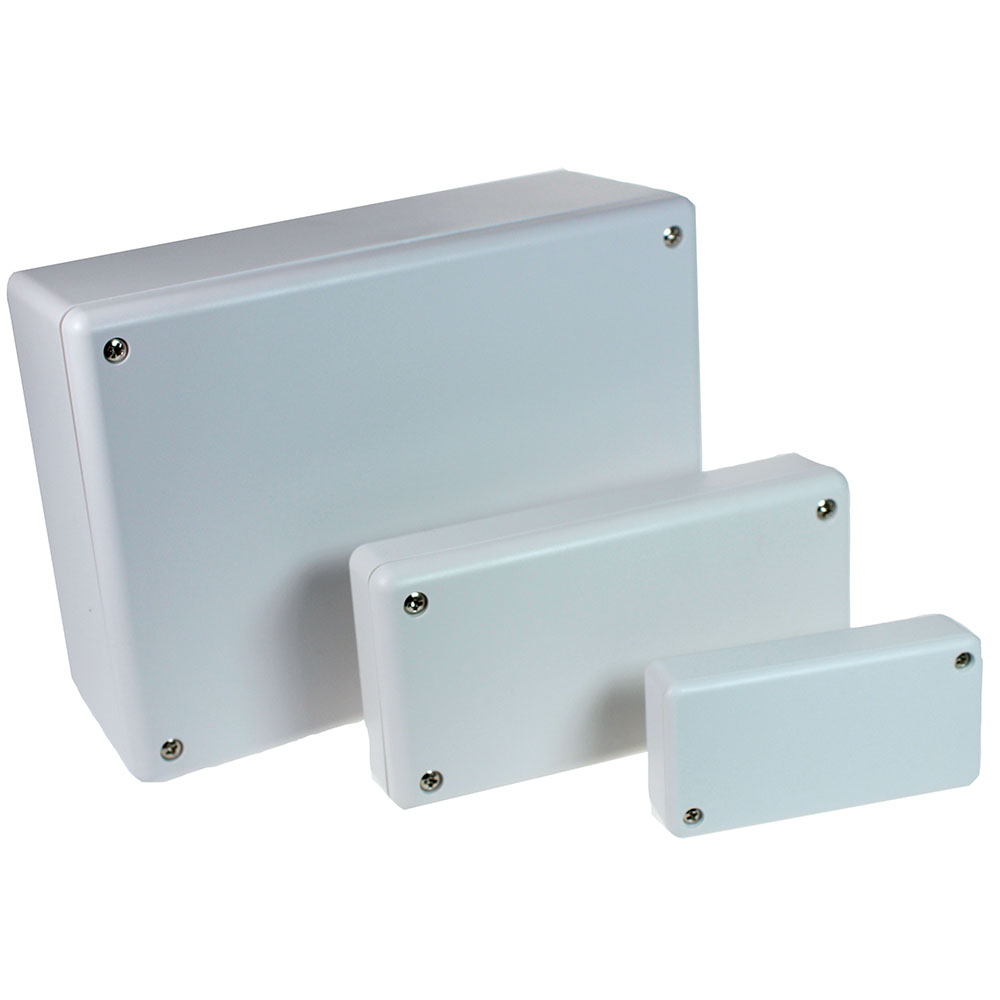

- Multi-purpose ABS cases, designed for a broad range of applications
- Universal plastic enclosure with screw fastening
- Suitable for measuring instruments, wireless communication devices, medical devices etc.

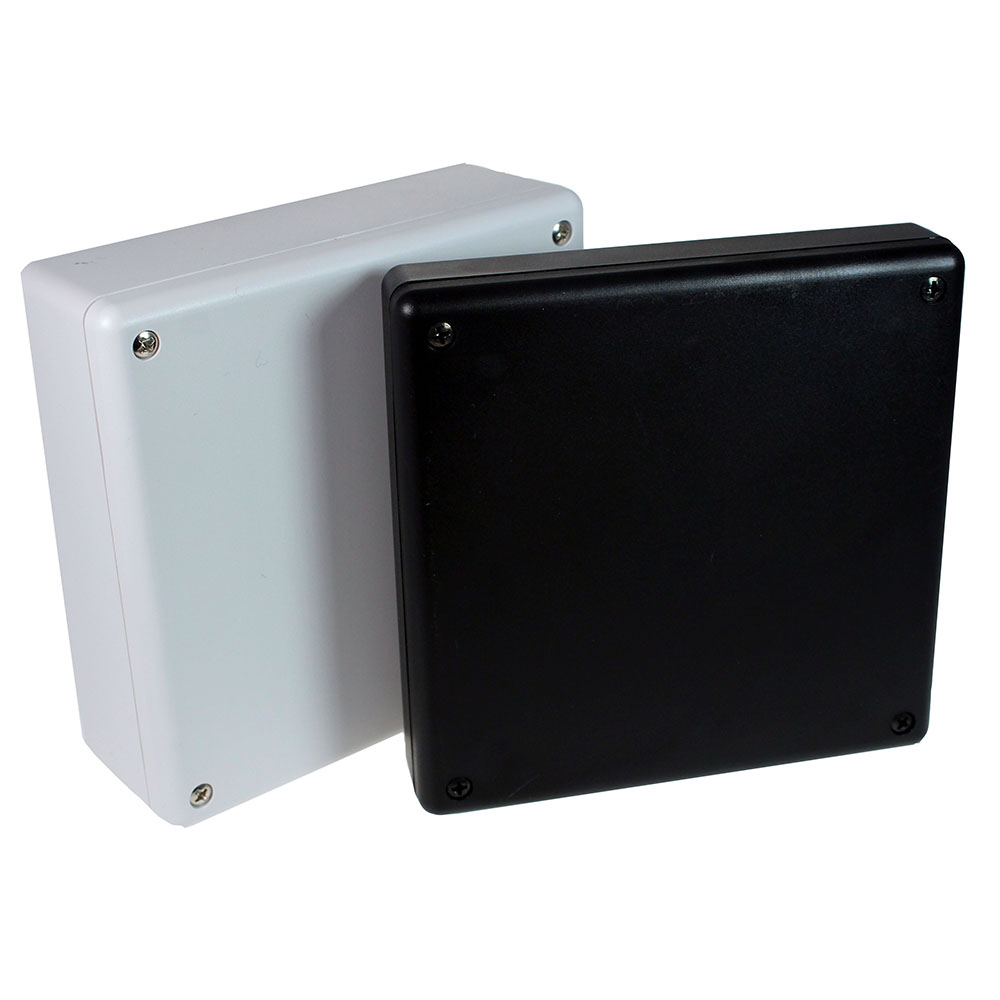

- Available in 23 sizes in two colours: white & black
- Black enclosures UL94-HB
- White enclosures UL94-V0 and UL94-V1
- 82 series has been designed to meet the requirements of IP40
| External Length (mm) | 80 |
| External Width (mm) | 80 |
| External Height (mm) | 40 |
| Internal Length (mm) | 72 |
| Internal Width (mm) | 72 |
| Internal Height (mm) | 35 |
| Weight (G) | 75 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | White |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP40 |
| Brand | Takachi |
| Size | 80 x 80 x 40 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
