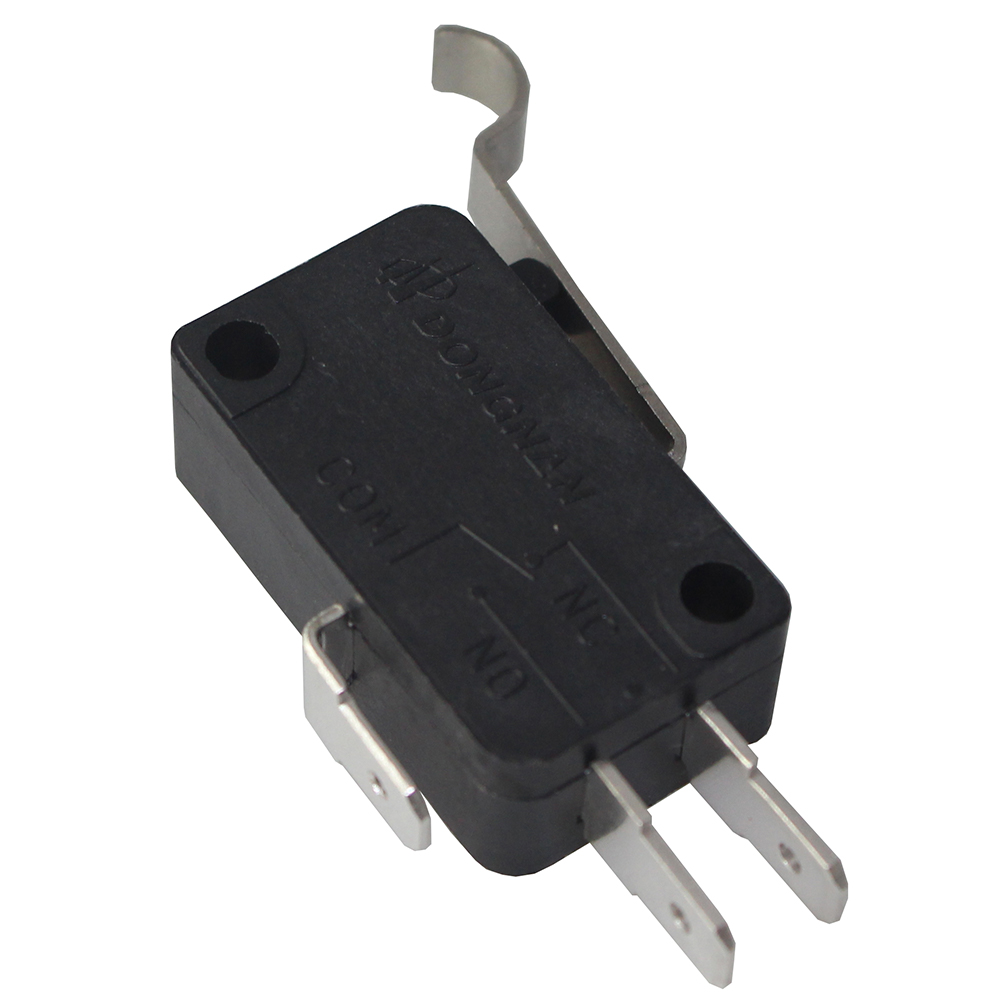

CSM31540A - V3 Type Microswitch
V3 Type Microswitch, 15A, Simulated Roller, Solder Terminals
- Rated 15A switching S.P.D.T.
- Coil spring mechanism
- 6.3mm (.250), 4.8mm (.187) quick connect solder & screw terminals
- Button, lever or roller actuators
- UL approved
| External Length (mm) | 28 |
| External Width (mm) | 10 |
| External Height (mm) | 16 |
| Weight (G) | 8 |
| Base Material | PBT |
| Colour | Black |
| General Current Rating (A) | 15 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 250 |
| Terminal Type | Solder Tag |
| Special Features | Simulated Roller Actuator |
| Operating Temperature | -10 Deg C to 105 Deg C |
| Actuator | Simulated Roller |
3D Step Drawing
