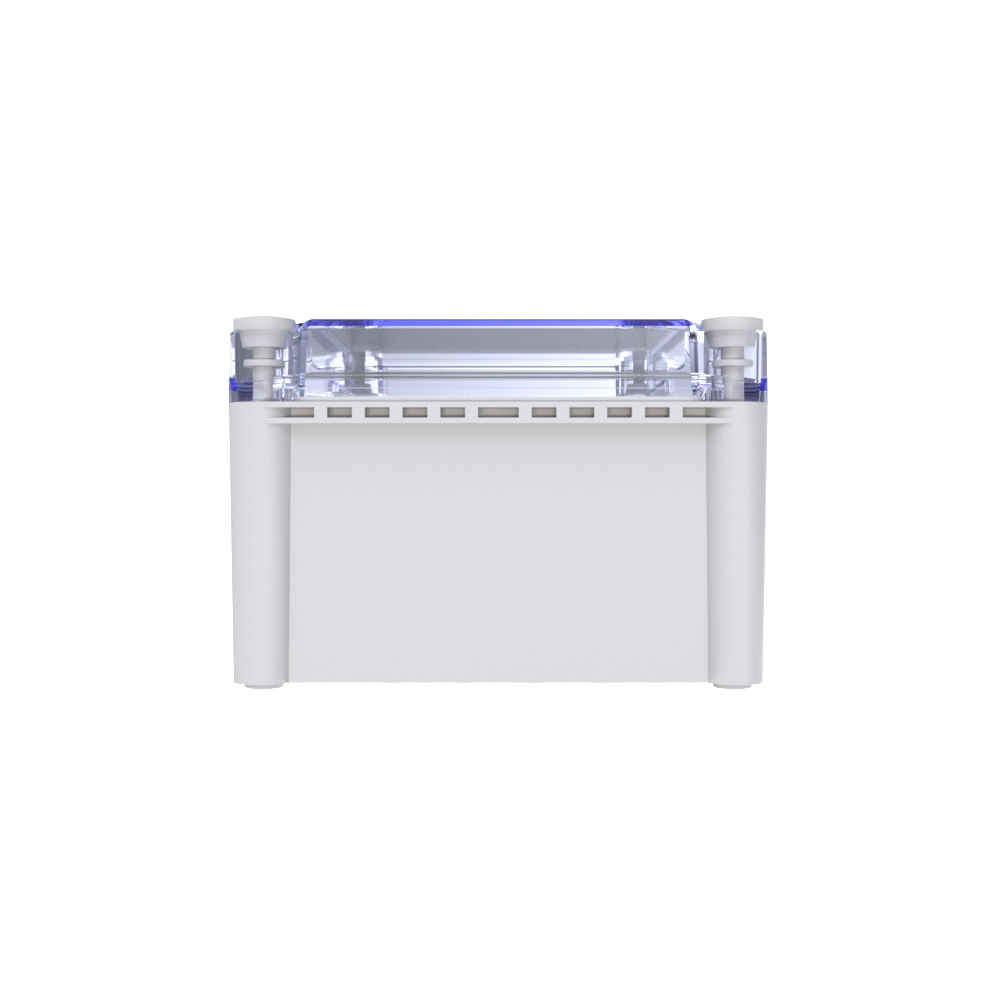

CHDX7-322C - X7 Series Electrical Heavy Duty Enclosure with Clear Lid, Grey, PC/ABS UL94-HB, 380x190x130mm
IP67 ABS enclosure with a clear lid featuring large heavy duty corners for added robustness. The mechanically strong enclosure provides the opportune environment for heavy duty IIoT enclosures 380x190x130
- X7 series has been designed to meet the requirements of IP67
- IK07/08 impact tested
- Heavy duty screw type enclosure
- Moulded in high quality ABS
- PCB pillers in the base for PCB mounting
- Brass inserts in the base
- Gasket supplied with the enclosure
- Captive, polyamide screws included
- Wall mounting facility accessories available
- Our client developed a IoT smart device using the X7 the purpose was to measure and send data
External Length (mm) | 380 |
External Width (mm) | 190 |
External Height (mm) | 130 |
Weight (G) | 1152 |
Base Material | Plastic |
Material Type | PC/ABS UL94-HB |
Colour | Grey |
UL Rating | UL94-HB |
IK Rating | IK08 |
IP Rating | IP67 |
Wall Mount | Yes |
Transparent Lid | Yes |
Operating Temperature | -40 Deg C to 70 Deg C |
Brand | CamdenBoss |
Size | 380x190x130 |
Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
