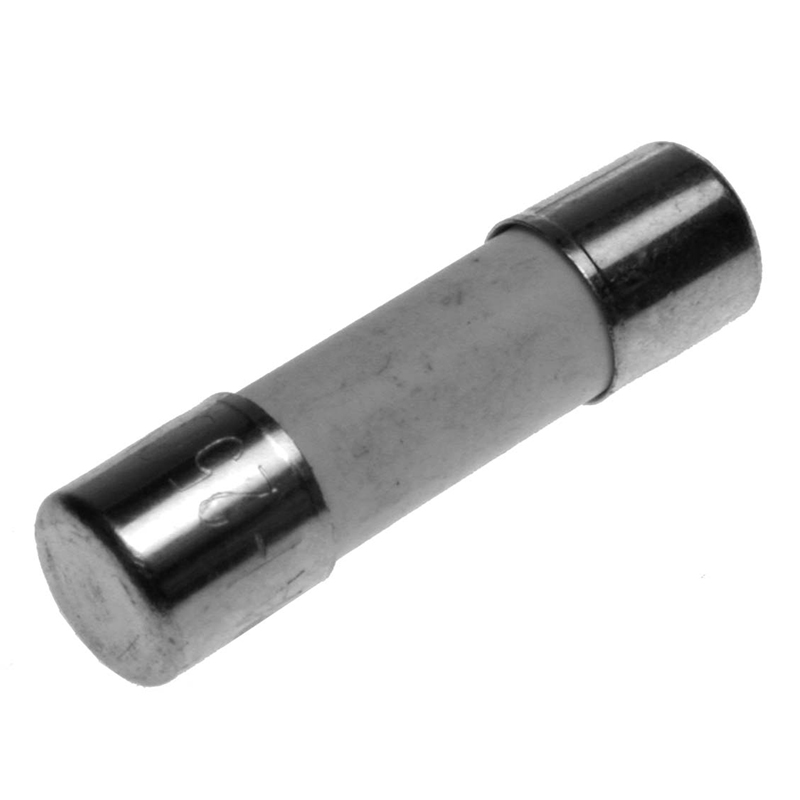

CFB06333CT/750 - 6.3x32mm Fuse
CamFuse Plus 6.3x32mm, Time Delay, Ceramic Fuse, 750mA
- Time delay (T)
- Excellent I2T characteristics
- Welded element for enhanced vibration tolerance
- Ceramic cartridge, nickel plated brass end caps
- Break capacity, 35A/250V (to 1A), 100A/250V (to 3.5A), 200A/250V (above 3.5A)
- UL Approved
| External Length (mm) | 32 |
| External Width (mm) | 6.3 |
| External Height (mm) | 6.3 |
| Weight (G) | 2.2 |
| Base Material | Ceramic |
| General Current Rating (A) | 0.75 |
| UL Current Rating (A) | 0.75 |
| UL Voltage Rating (V) | 250 |
| VDE Current Rating (A) | 0.75 |
| VDE Voltage Rating (V) | 250 |
| Operating Temperature | -55 Deg C to 125 Deg C |
| Blow Speed | SLOW |
| UL Approval | Yes |
| Fuse Size | 6.3 x 32 |
| Body Shape | Tube |
3D Step Drawing
