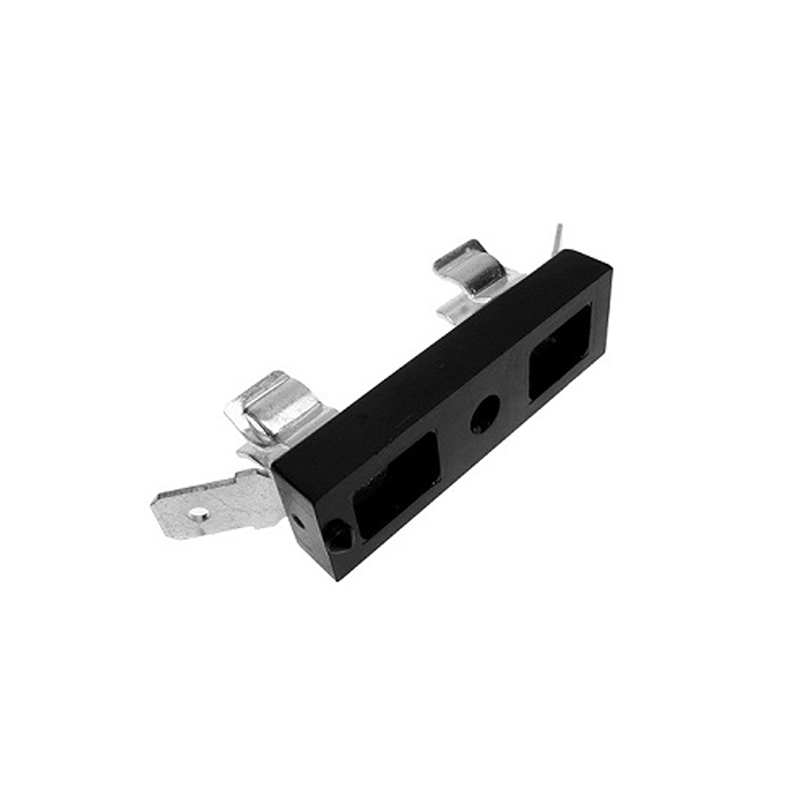

CFH16 - Chassis Mount Fuseholder
6.3x32mm Chassis Mounting 30A Fuseholder
- Centre hole fixing
- 6.3x32mm fuse
- High current rating
- UL Approved
| External Length (mm) | 60 |
| External Width (mm) | 7 |
| External Height (mm) | 17.8 |
| Weight (G) | 5 |
| Base Material | Metal |
| Material Type | Tinned brass |
| Colour | Black |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 30 |
| UL Current Rating (A) | 30 |
| UL Voltage Rating (V) | 250 |
| Operating Temperature | -30 Deg C to 85 Deg C |
| Fuse Size | 6.3 x 32 |
3D Step Drawing
