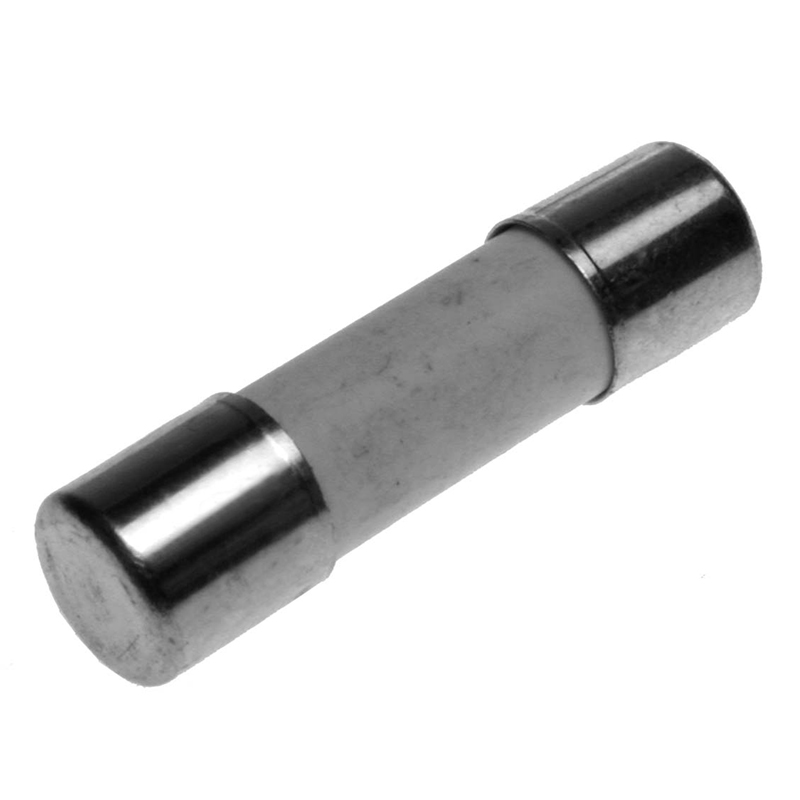

CFB06333CF/800 - 6.3x32mm Fuse
CamFuse Plus 6.3x32mm, Quick Blow, Ceramic Fuse, 800mA
- Quick blow (F)
- Excellent I2T characteristics
- Welded element for enhanced vibration tolerance
- Ceramic cartridge, nickel plated brass end caps
- Break capacity-35A/250 VAC- to 800mA 100/250 VAC - to 3.5A 200A/250 VAC - Above 3.5A
- UL Approved
| External Length (mm) | 32 |
| External Width (mm) | 6.3 |
| External Height (mm) | 6.3 |
| Weight (G) | 2.2 |
| Base Material | Ceramic |
| General Current Rating (A) | 0.8 |
| UL Current Rating (A) | 0.8 |
| UL Voltage Rating (V) | 250 |
| Operating Temperature | -55 Deg C to 125 Deg C |
| Blow Speed | FAST |
| UL Approval | Yes |
| Fuse Size | 6.3 x 32 |
| Body Shape | Tube |
3D Step Drawing
