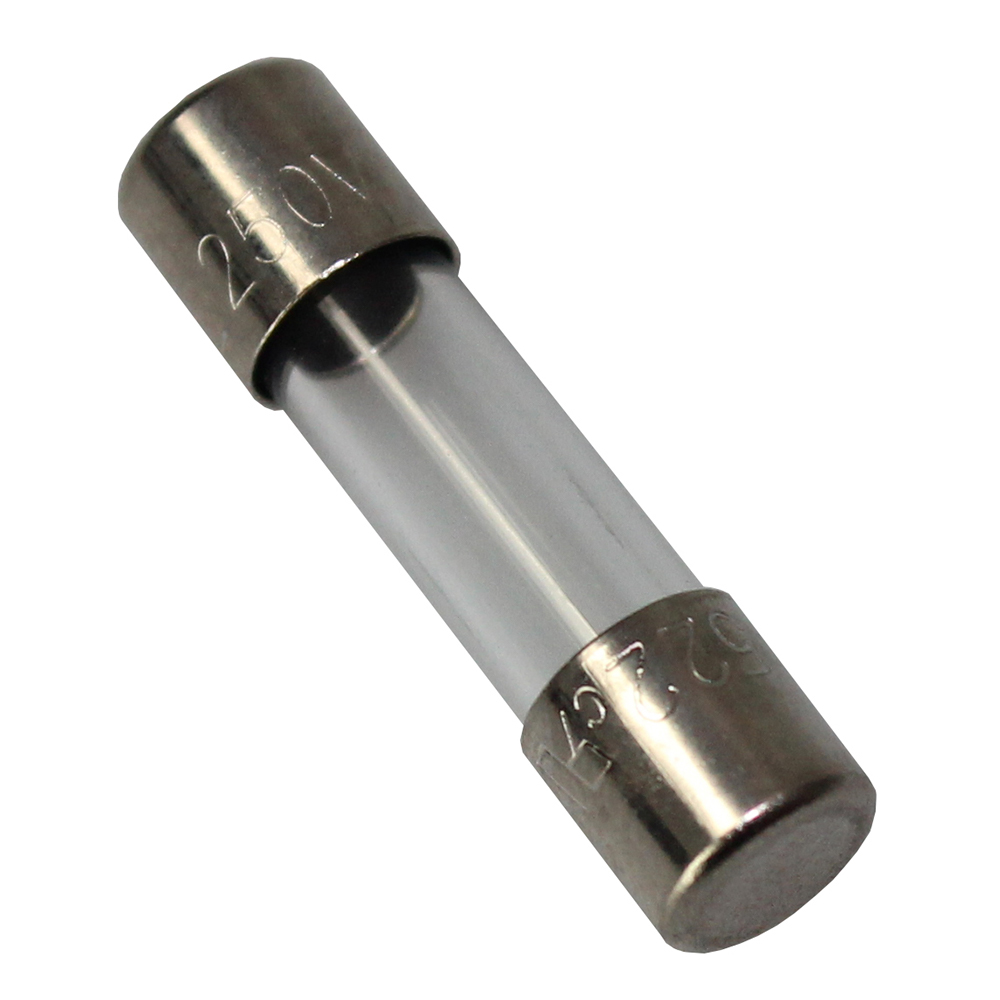

CFB0520F/500 - 5x20mm Fuse
CamFuse Plus 5x20mm, Quick Blow, Glass Fuse, 500mA
- Quick blow (F) IEC60127
- Excellent I2T characteristics
- Welded element for enhanced vibration tolerance
- Glass cartridge, nickel plated brass end caps
- Colour coded available
- Break capacity 100A/250VAC (250mA-16A)
- UL, VDE, PSE, CQC, CCC Approved
| External Length (mm) | 20 |
| External Width (mm) | 5 |
| External Height (mm) | 5 |
| Weight (G) | 0.8 |
| Base Material | Glass |
| General Current Rating (A) | 0.5 |
| UL Current Rating (A) | 0.5 |
| UL Voltage Rating (V) | 250 |
| VDE Current Rating (A) | 0.5 |
| VDE Voltage Rating (V) | 250 |
| Operating Temperature | -55 Deg C to 125 Deg C |
| Blow Speed | FAST |
| UL Approval | Yes |
| VDE Approval | Yes |
| CCC Approval | Yes |
| Fuse Size | 5 x 20 |
| Body Shape | Tube |
3D Step Drawing
