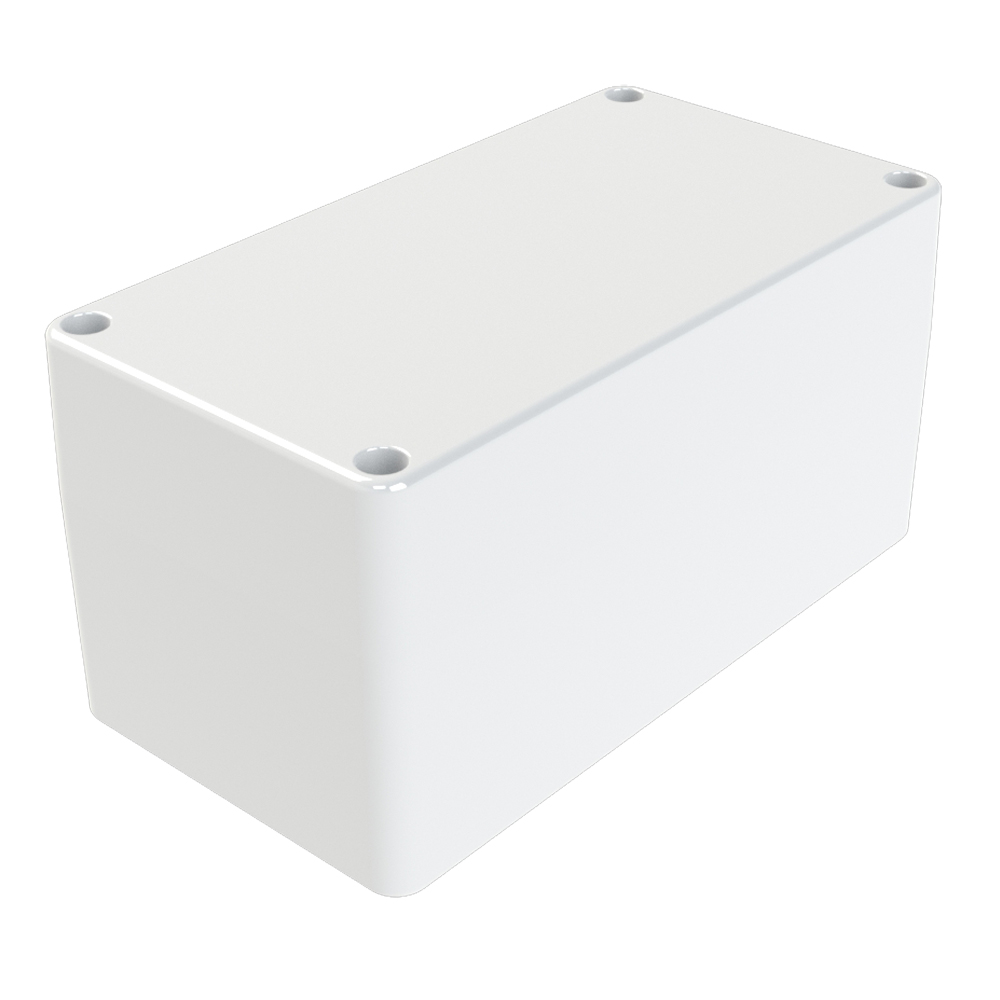

BIM2005/25-WH/WH - 2000 Series General Purpose ABS Enclosure, Deep Profile, White, ABS UL94-HB, 150x80x76mm
Multipurpose electronics enclosure suitable for deep internal requirements for industrial technology. This UK manufactured enclosure is moulded in UL94-HB ABS.
- Multi-purpose enclosures for application where extra height is required
- The deep profile 2000 series electronic enclosure provides increased internal volume
- Deep profile Lid and base moulded in ABS
- Brass inserts in base for repeated removal of the lid
- Excellent properties for machining
- Integral mounting guides in base to accept 1.6mm PCB's
- Available in other colours on request (subject to MOQ)
- 2000 series has been designed to meet the requirements of IP54
- General purpose enclosures, EMC/RFI, flanged or lugged lid enclosures available
- Customise your BIM enclosure using our digital printing service
| External Length (mm) | 150 |
| External Width (mm) | 80 |
| External Height (mm) | 76 |
| Internal Length (mm) | 146 |
| Internal Width (mm) | 76 |
| Internal Height (mm) | 72 |
| Weight (G) | 164 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | White |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP54 |
| Brand | CamdenBoss |
| Size | 150 x 80 x 76 |
| Development Board | N/A |
| Country Of Origin | Great Britain (GB) |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
