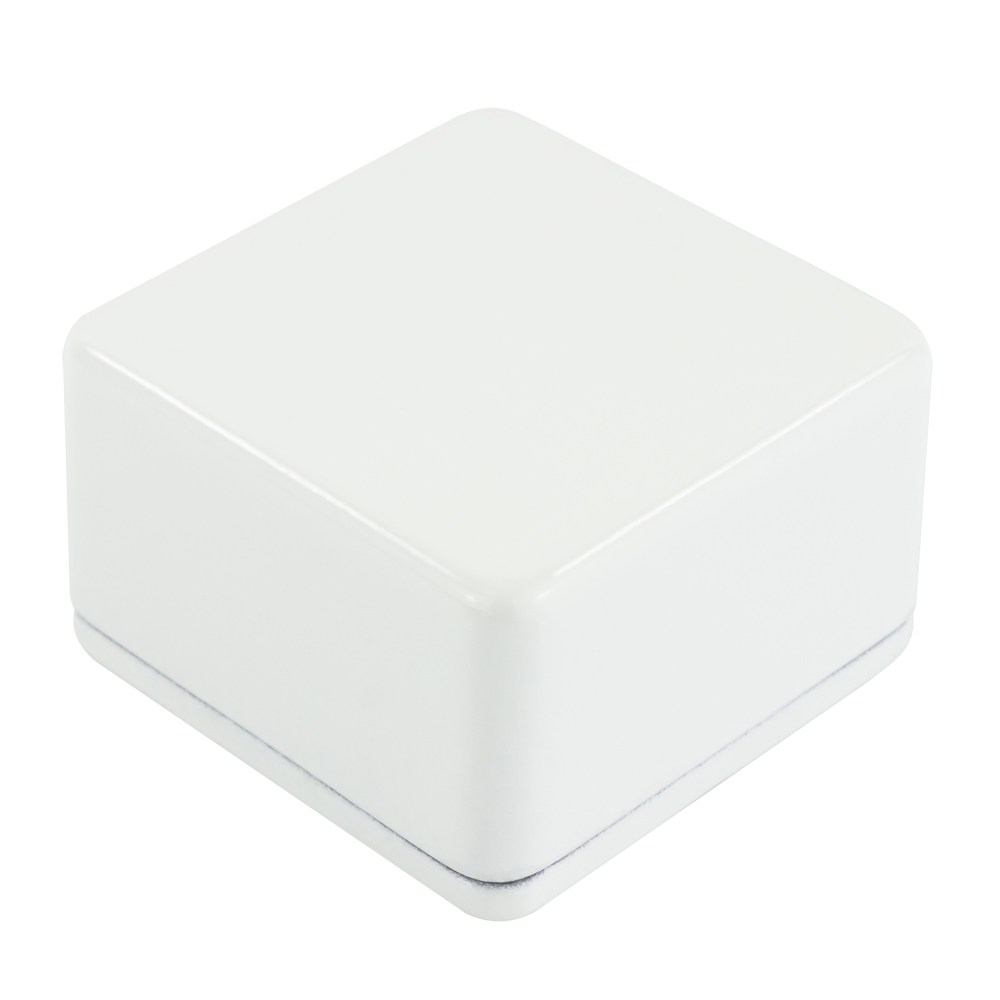

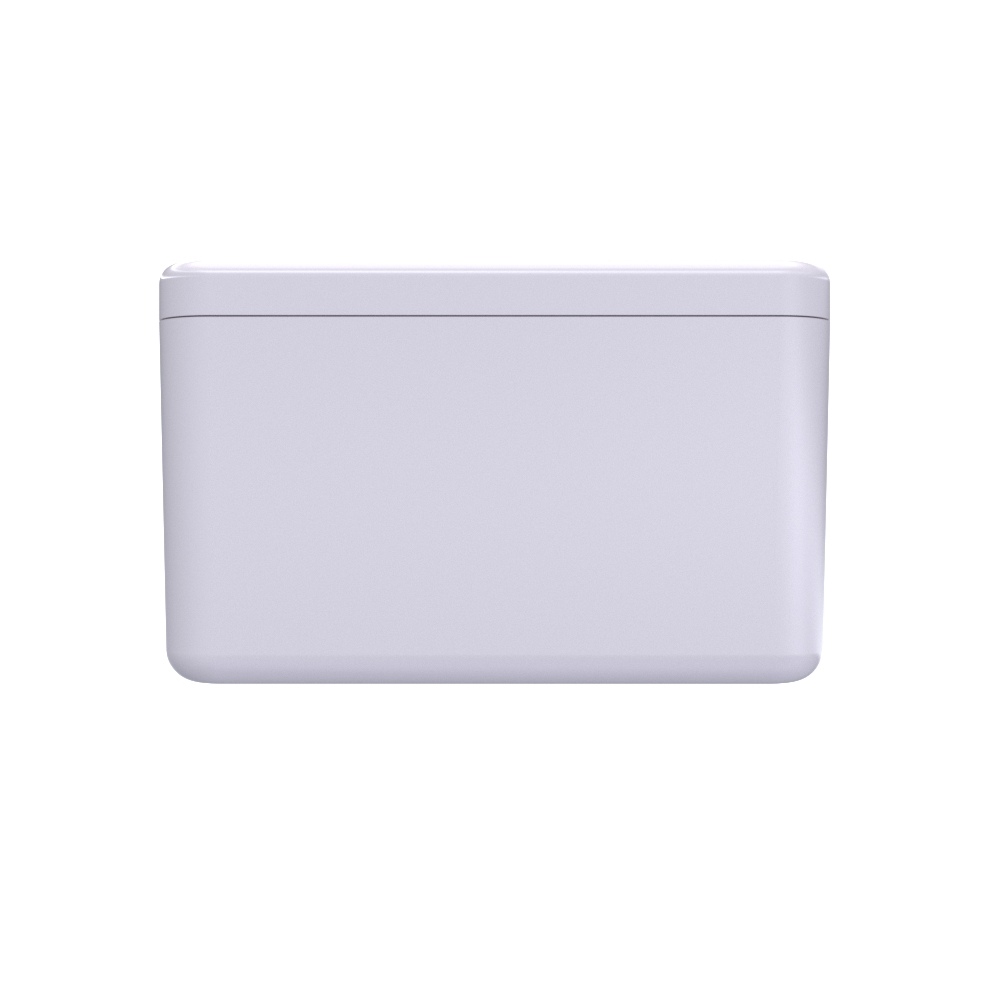

RTM5001/11-WH - 5000 Series Multipurpose Diecast Enclosure, 50x50x31mm,white
This durable aluminium enclosure is ideal for use as an industrial stomp box or to protect your electronics
- Diecast aluminium

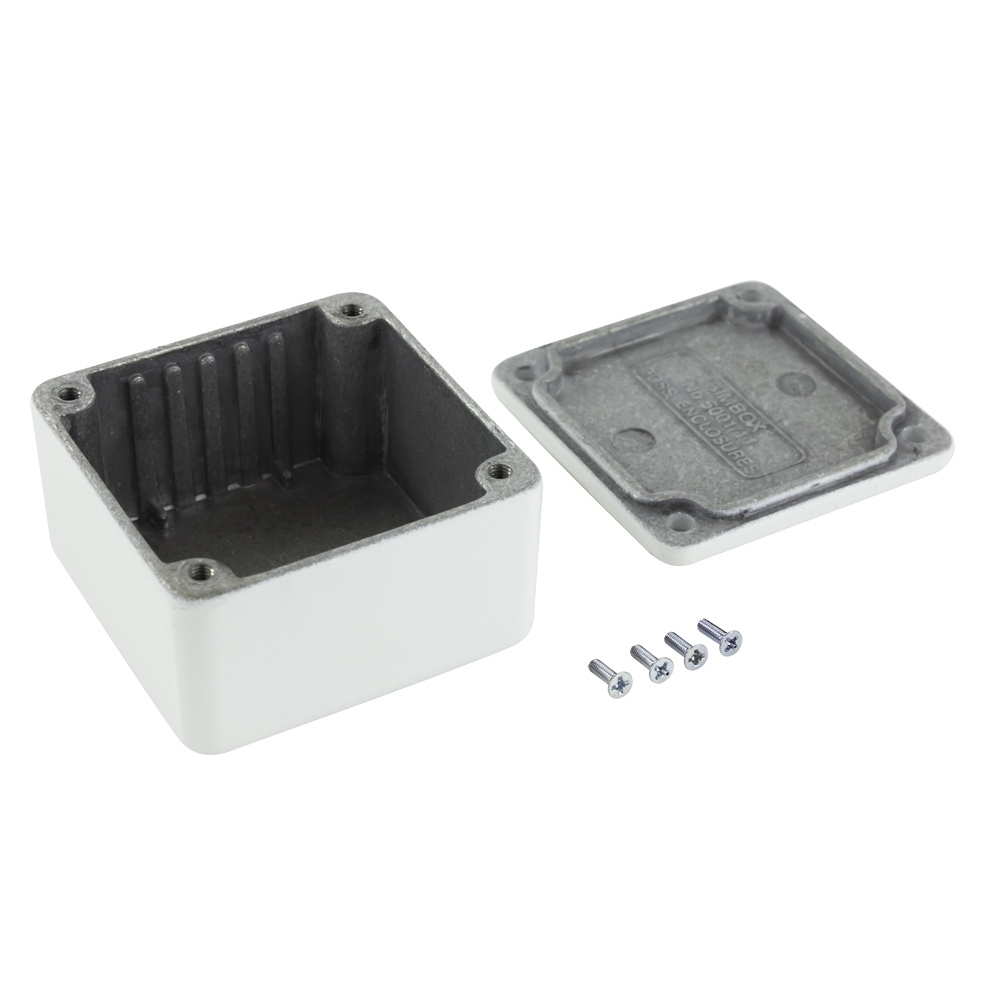

- Lid mounted by four M3 machine screws
- Temperature resistant up to 260 degrees C (without gasket)
- Highly Durable and shock resistant
- Vertical guides for PCB fixing
- Optional neoprene gasket for IP65 seal
| External Length (mm) | 50 |
| External Width (mm) | 50 |
| External Height (mm) | 31 |
| Internal Length (mm) | 46 |
| Internal Width (mm) | 46 |
| Internal Height (mm) | 25 |
| Weight (G) | 66 |
| Base Material | Metal |
| Material Type | Aluminium |
| Colour | White |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP65 |
| Brand | CamdenBoss |
| Size | 50 x 50 x 31 |
| Development Board | N/A |
| Diecast | Yes |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
