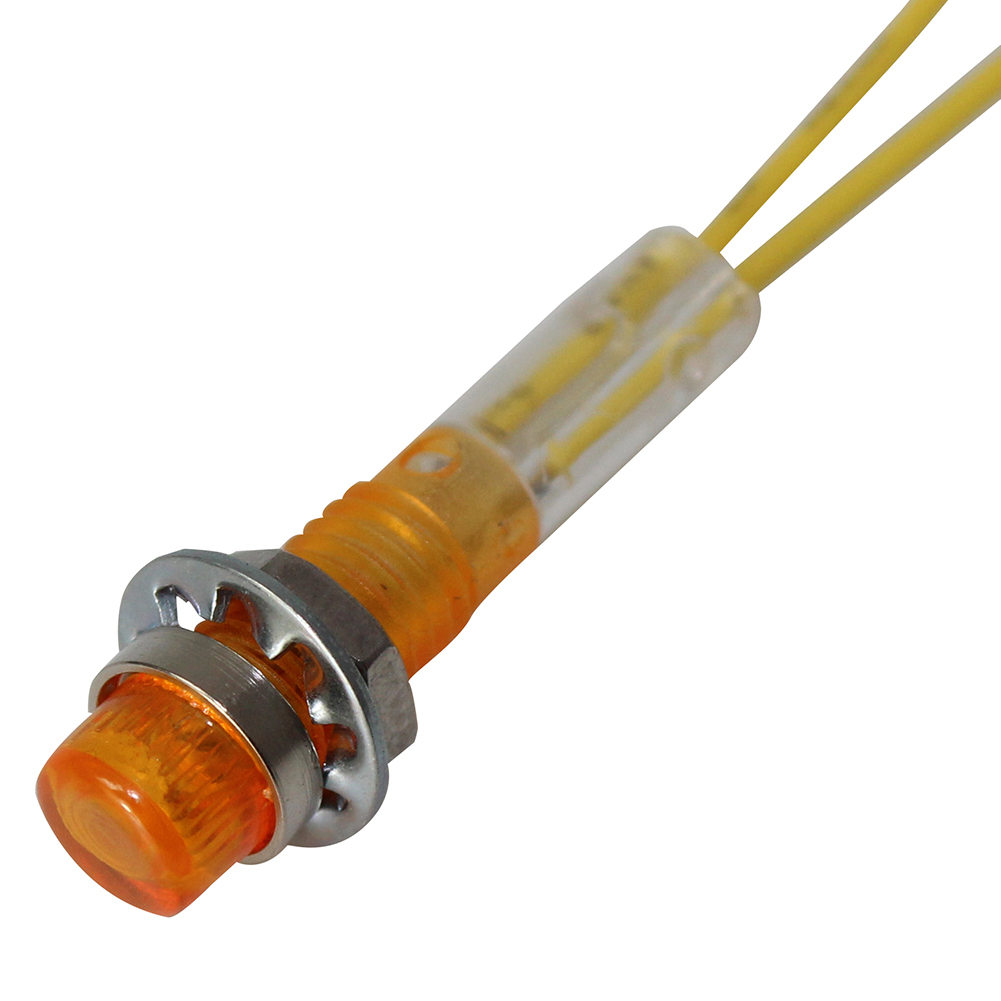

IND515205-1235-T/AMB - 515 Series Indicator
6.4mm Cutout Threaded, 12V, Filament, Stripped Wire, Amber Indicator
- Threaded body for panel thicknesses 0.5-3.5mm, panel cut-out 6.4mm diameter
- Stripped wire termination 164mm long, PVC stripped dimensions 10mm
- LED, Filament 6-28V 30-40mA and Neons 125-240V 0.8-1mA, as standard
- Neon-replacement LED version is fitted with a resistor and operates at 240VAC.
- Polycarbonate lens/body, chrome bezel, supplied with nut and washer
- Red, green, amber, clear and opal lens colour options
- Maximum working temperature 105 Degrees C
- Operating life 50,000 hours
| External Length (mm) | 31 |
| External Width (mm) | 7.5 |
| External Height (mm) | 7.5 |
| Weight (G) | 2 |
| Colour | Amber |
| General Current Rating (A) | 0.035 |
| Terminal Type | Stripped Wire |
| Special Features | Transparent |
| Light Source | Filament |
| Fitting Type | Threaded, long wires |
3D Step Drawing
