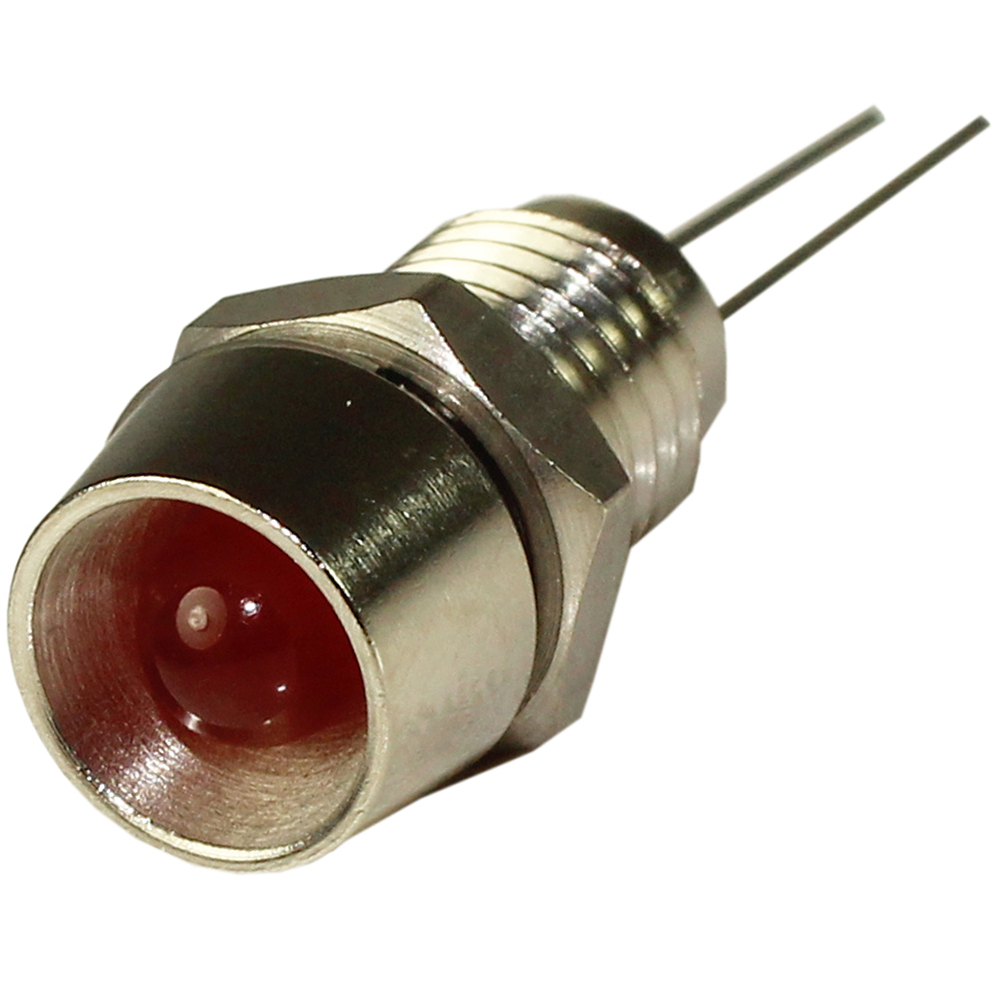

IND513113-LED-RD - 513 Series Indicator
8mm Cutout Threaded, 5V Red LED, Pin Terminal
- Threaded body for panel thicknesses 0.5-3.5mm, panel cut-out 8.0mm diameter
- 5.0mm LED with pin termination, anode pin cut short
- Chrome plated brass body/ bezel, supplied with nut spring washer
- Chrome plated brass body/ bezel, supplied with nut spring washer
- Maximum working temperature 80?C
| External Length (mm) | 20 |
| External Width (mm) | 10 |
| External Height (mm) | 10 |
| Weight (G) | 1 |
| Colour | Red |
| General Current Rating (A) | 0.01 |
| Terminal Type | Pin |
| Special Features | Transparent |
| Light Source | LED |
| Fitting Type | Chrome recessed 5mm LED |
