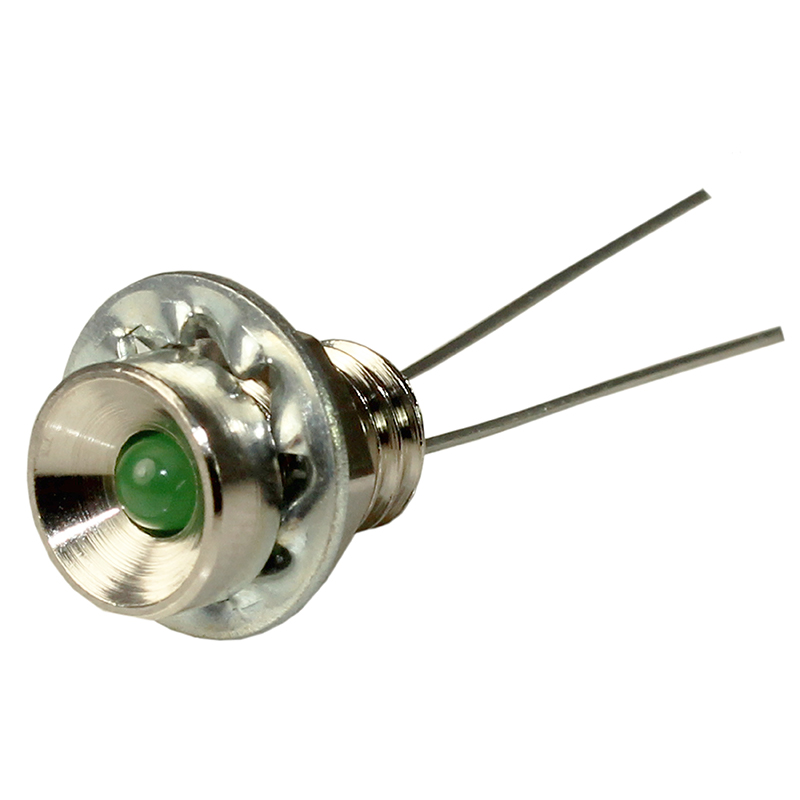

IND512113-LED-GRN - 512 Series Indicator
6.5mm Cutout Threaded, 5V Green LED, Pin Terminal
- Threaded body for panel thicknesses 0.5-3.5mm, panel cut-out 6.5mm diameter
- 3.2mm LED with pin termination, anode pin cut short
- Chrome plated brass body/ bezel, supplied with nut and shakeproof washer
- Red, green, amber, and blue lens colour options as standard
- Maximum working temperature 80 Degrees C
| External Length (mm) | 10 |
| External Width (mm) | 7.5 |
| External Height (mm) | 7.5 |
| Weight (G) | 1 |
| Colour | Green |
| General Current Rating (A) | 0.1 |
| Terminal Type | Pin |
| Special Features | Transparent |
| Light Source | LED |
| Fitting Type | Chrome recessed 3mm LED |
3D Step Drawing
