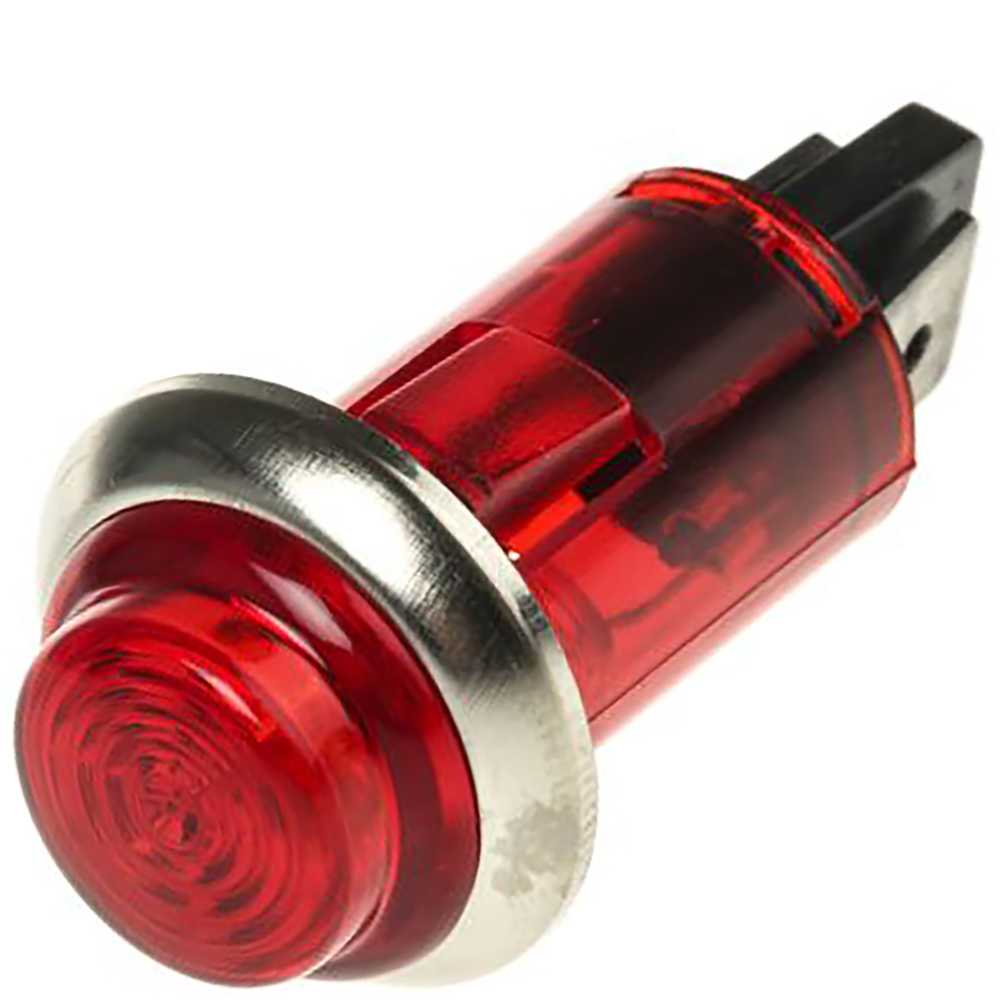

IND504203-240-T/RD - 504 Series Indicator
13mm Cutout Press-Fit 240V Red Neon Indicator Quick Connect Terminals
- Snap fit body for panel thicknesses 0.5-3.5mm, panel cut-out 13mm diameter
- 6.3mm quick-connect terminals as standard
- Neons 240V 0.8mA, as standard
- Polycarbonate lens/body and brushed chrome bezel
- Maximum working temperature 105?C
- Red, green, amber lens colour options as standard
| External Length (mm) | 35 |
| External Width (mm) | 12 |
| External Height (mm) | 12 |
| Weight (G) | 4 |
| Colour | Red |
| General Current Rating (A) | 0.8 |
| Terminal Type | Quick-Connect |
| Special Features | Transparent |
| Light Source | Neon |
| Fitting Type | Snap fit |
3D Step Drawing
