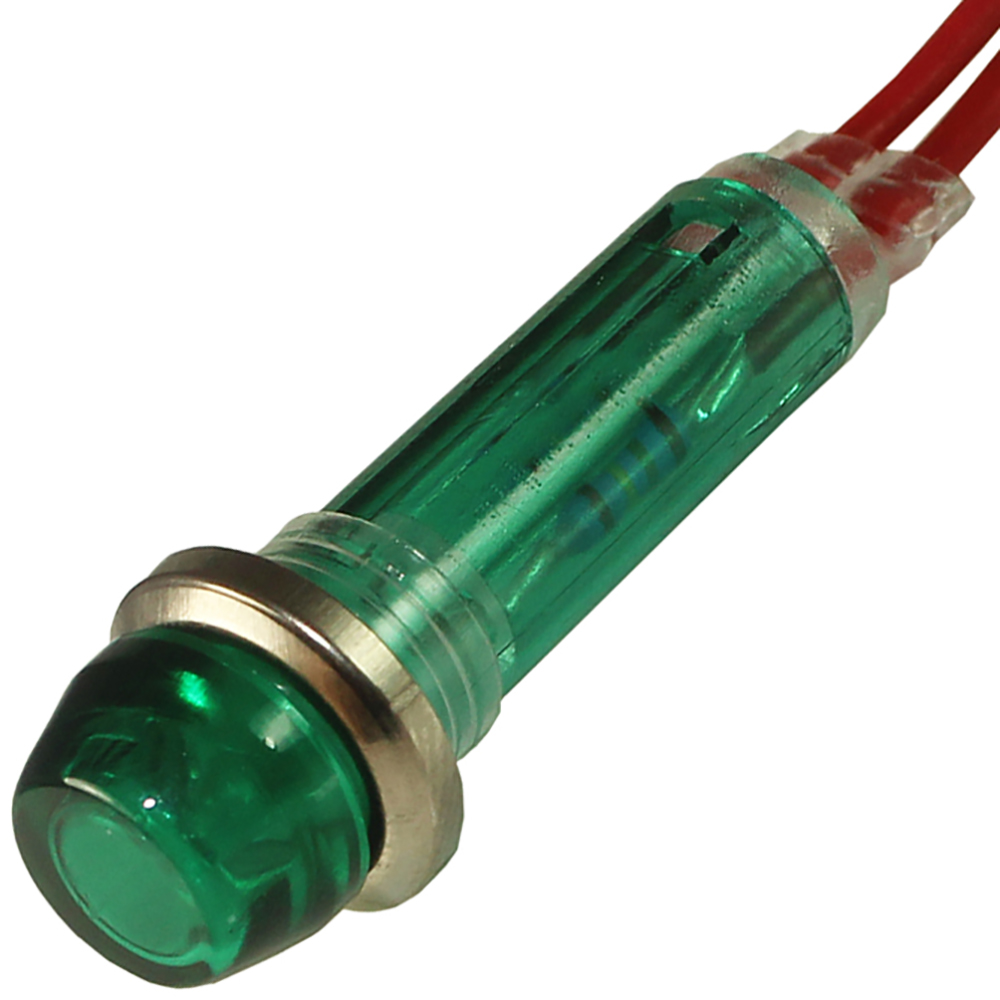

IND5032405-240-T/GRN - 503 Series Indicator
8mm Cutout, Press Fit, 240V Green Neon Indicator
- Press fit body for various panel thicknesses, panel cut-out 8mm diameter
- Available with solder tags and wire termination
- Operating life 50,000 hours
- Polycarbonate lens/body and brushed chrome bezel
- Maximum working temperature 105 Degrees C
- Red, green, amber lens colour options as standard
- Custom wire lengths and specification to order
- Removable collar fits to rear of panel for improved retention
| External Length (mm) | 25.4 |
| External Width (mm) | 10 |
| External Height (mm) | 10 |
| Weight (G) | 2 |
| Colour | Green |
| General Current Rating (A) | 0.008 |
| Terminal Type | Stripped Wire |
| Special Features | Transparent |
| Light Source | Neon |
| Fitting Type | Snap fit |
3D Step Drawing
