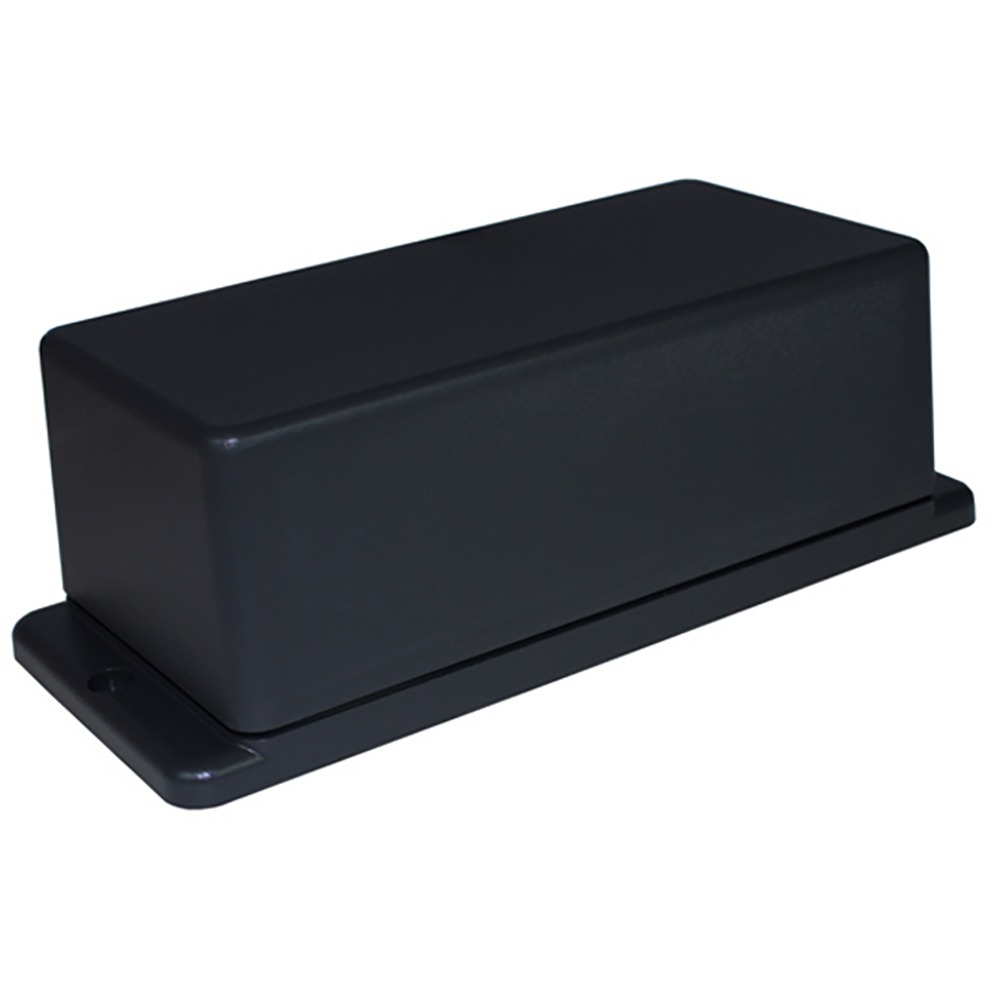

CUE8312DG - 83 Series Multipurpose Flanged ABS Enclosure, Dark Grey, ABS UL94-V0, 150x65.5x50mm

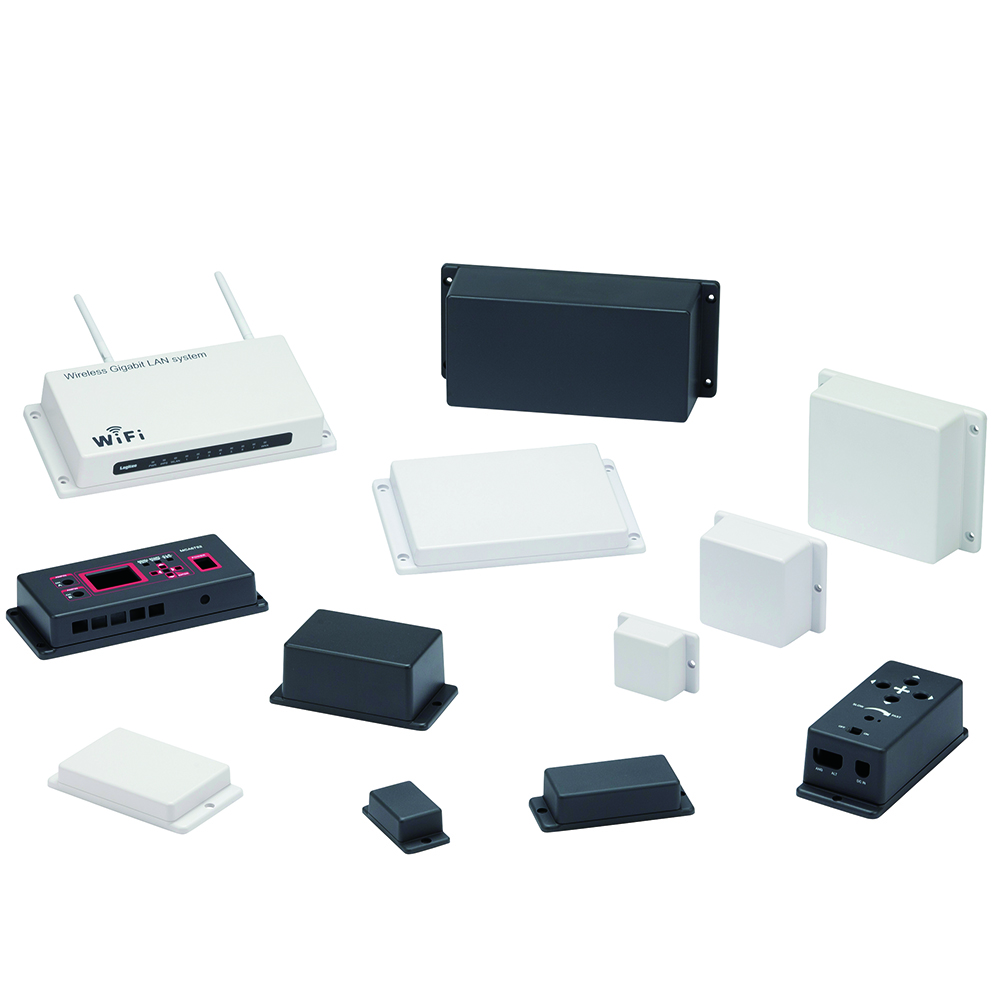

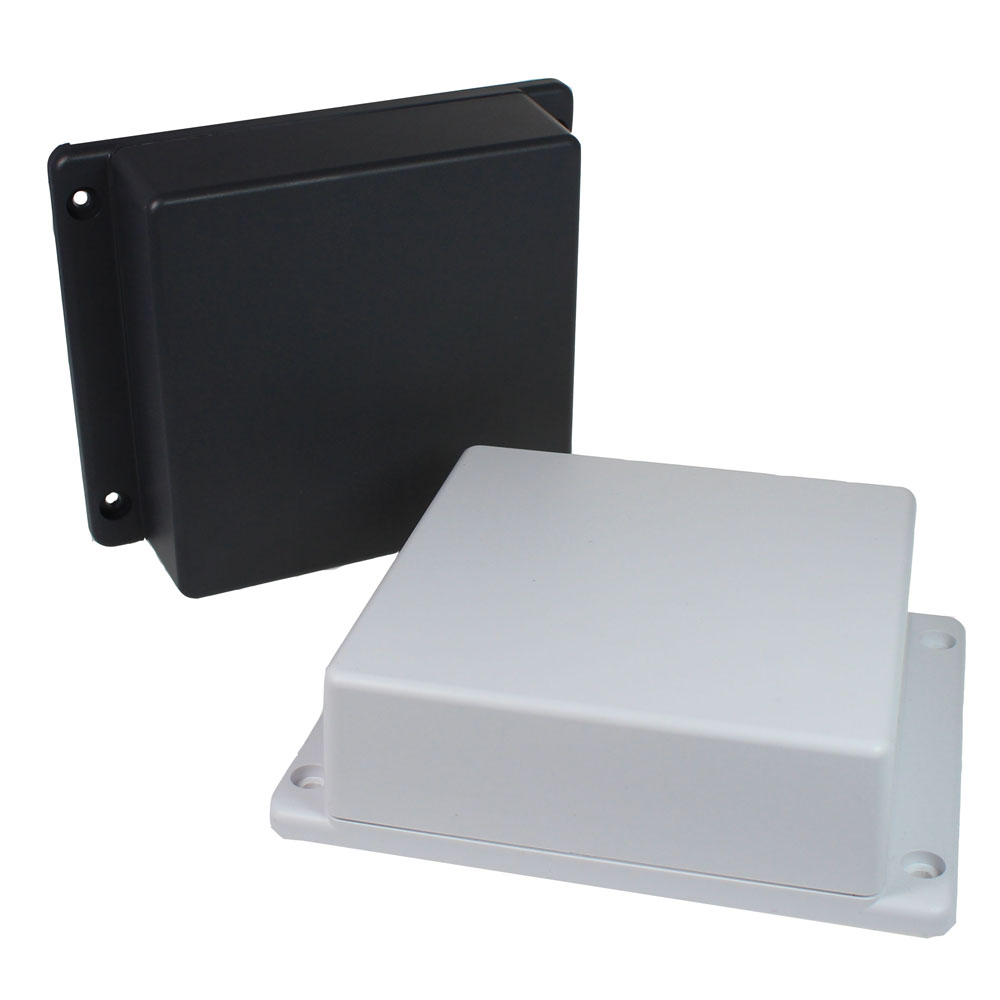

Surface mountable multipurpose enclosure for control and IoT applications available in a dark grey or white finish
- Multi-purpose flanged enclosure designed for wall-mounting or surface mount devices
- Suitable for measuring instruments, communication device, controller etc.
- Lid and base moulded in flame resistant ABS
- Lid mounted by four M3 machine screws
- Excellent properties for machining
- Available in 18 sizes in white & dark grey, UL94-V0
- 83 series has been designed to meet the requirements of IP40
| External Length (mm) | 150 |
| External Width (mm) | 65.5 |
| External Height (mm) | 50 |
| Internal Length (mm) | 124 |
| Internal Width (mm) | 59 |
| Internal Height (mm) | 61 |
| Weight (G) | 114 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Dark Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP40 |
| Wall Mount | Yes |
| Brand | Takachi |
| Flanges/Lugs | Yes |
| Size | 150 x 65.5 x 50 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
