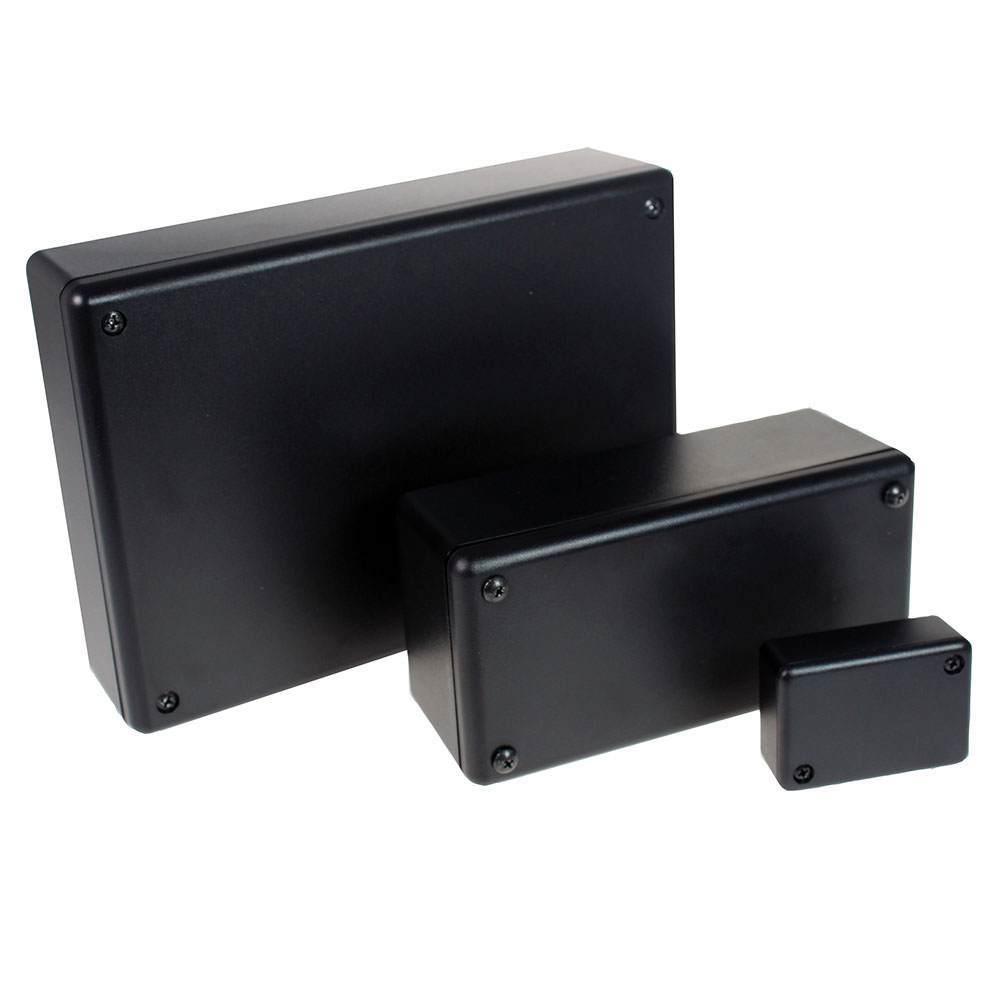

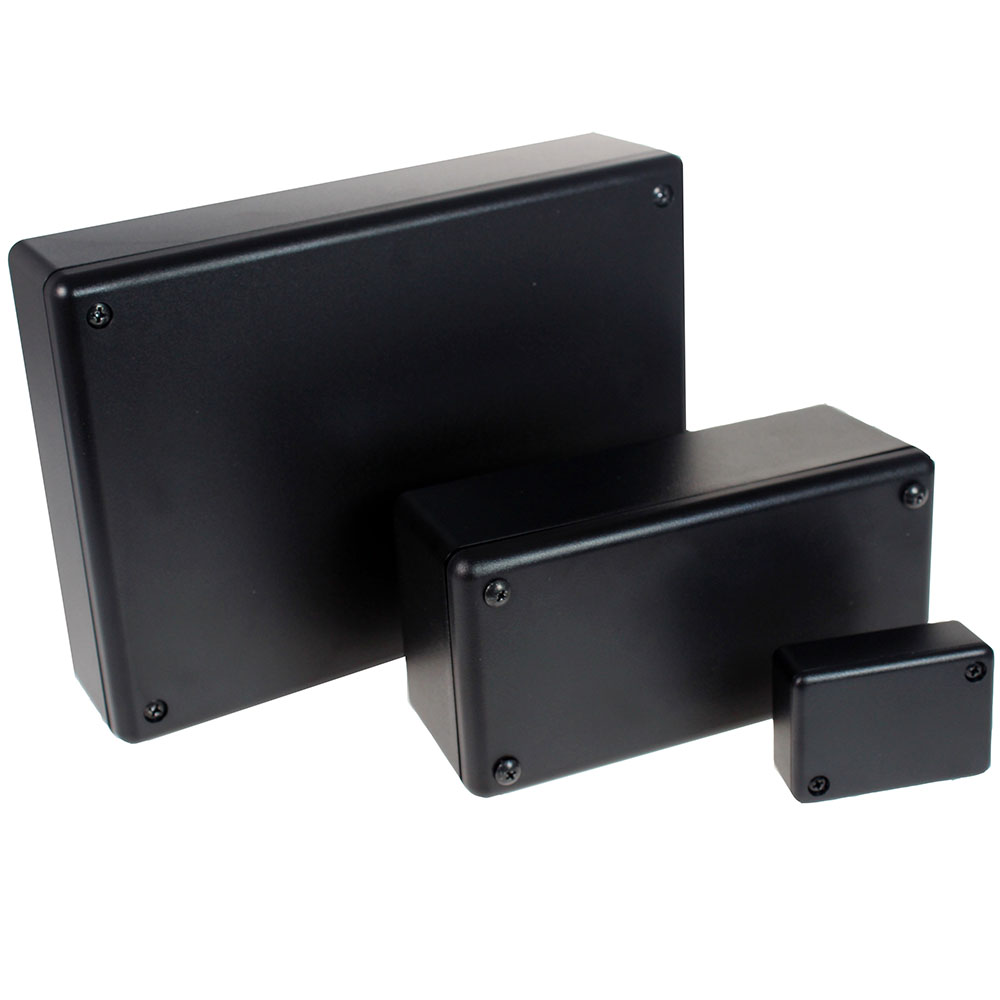

CUE8221BK - 82 Series Multipurpose ABS Enclosure, Black, ABS UL94-HB, Size 21, 175x125x25mm
The 82 Series Multipurpose ABS Enclosure is available in either a black HB or white V1 and V0 material, for multipurpose indoor applications
- Multi-purpose ABS cases, designed for a broad range of applications
- Universal plastic enclosure with screw fastening
- Suitable for measuring instruments, wireless communication devices, medical devices etc.
- Available in 23 sizes in two colours: white & black
- Black enclosures UL94-HB
- White enclosures UL94-V0 and UL94-V1
- 82 series has been designed to meet the requirements of IP40
| External Length (mm) | 175 |
| External Width (mm) | 125 |
| External Height (mm) | 25 |
| Internal Length (mm) | 168 |
| Internal Width (mm) | 118 |
| Internal Height (mm) | 20 |
| Weight (G) | 184.5 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | Black |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP40 |
| Brand | Takachi |
| Size | 175 x 125 x 25 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
