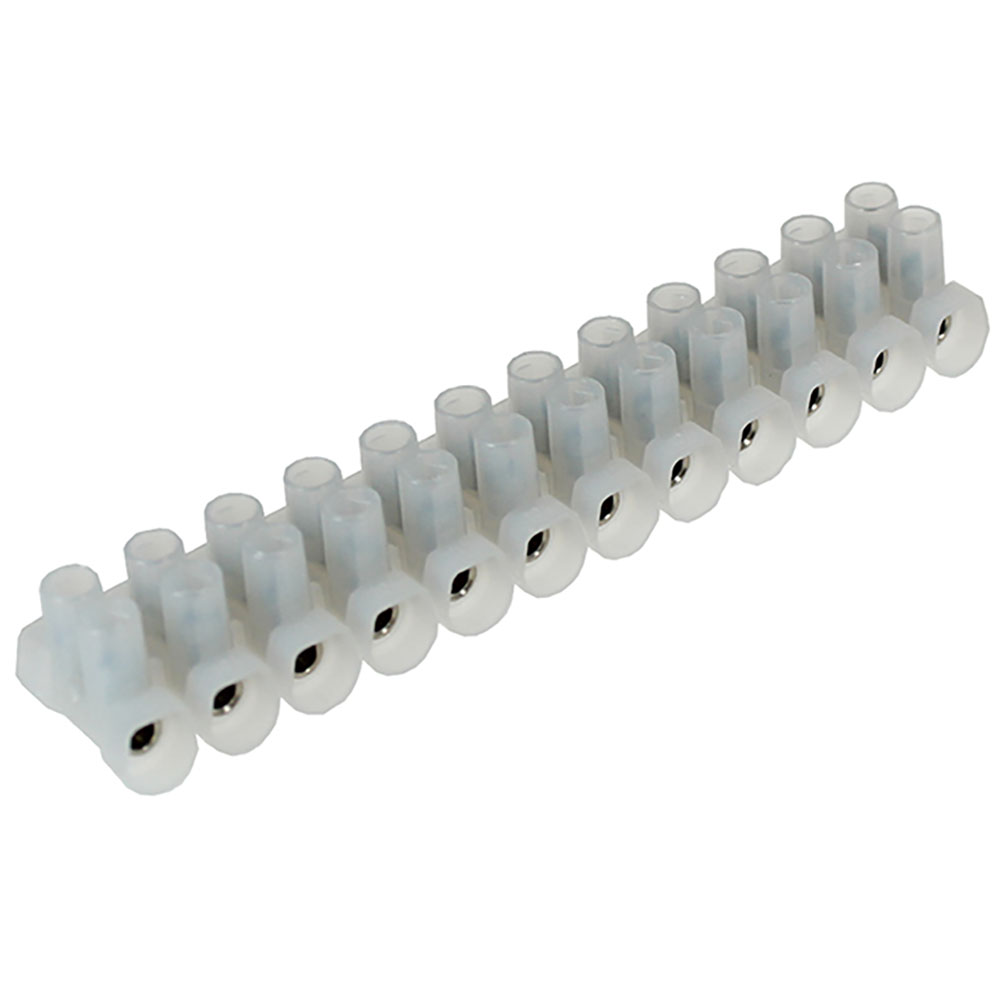

CTSOS431/12 - Easy Break Terminal Strip
2.5mm Easy Break Natural Terminal Strips
- Easily snapped to required numbered of poles
- No remaining burrs
- No tools required to cut to length
- Supplied with screws in raised position
- 12 poles as standard
- Halogen free
- Passes 960 Degree C glow-wire test according to EN 60695-2-11
| External Length (mm) | 95.5 |
| External Width (mm) | 17.5 |
| External Height (mm) | 14.75 |
| Weight (G) | 19 |
| Base Material | Nylon |
| Material Type | Polyamide 6 |
| Colour | Natural |
| UL Rating | UL94-V2 |
| General Current Rating (A) | 24 |
| Clamping Method | Screw Terminal |
| Max Wire size (mm) | 25 |
| Operating Temperature | -30 Deg C to 110 Deg C |
| Pitch (mm) | 8 |
| No. of Poles | 12 |
3D Step Drawing
