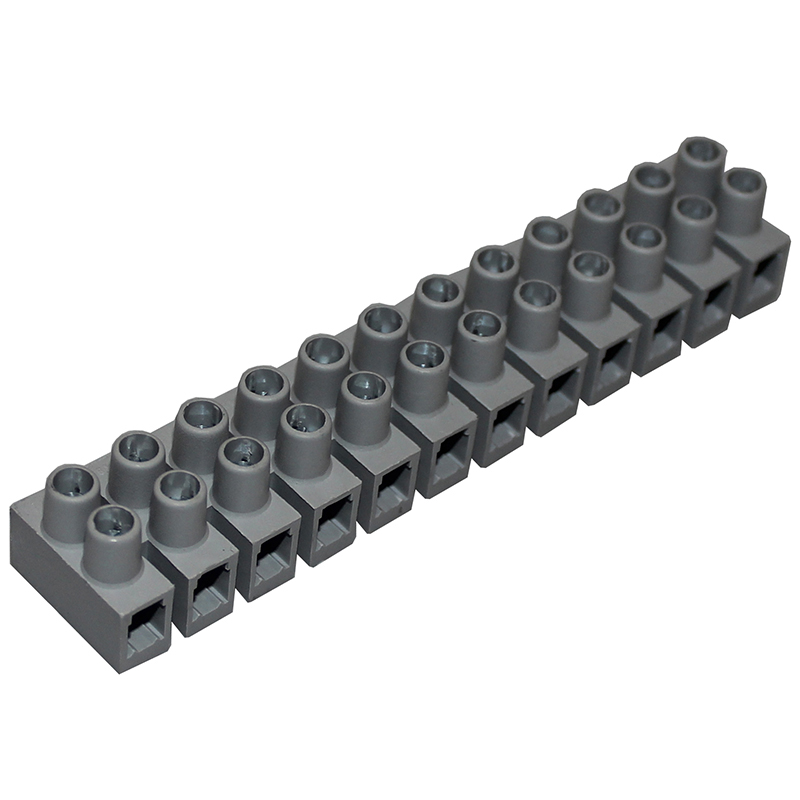

CTSN631/12 - Nylon Terminal Strip
12 Pole Terminal Strip, Wire Protector, 8mm Pitch, PA66+GF
- Moulded from Natural PA6, Cream PA66, Grey PA66 Glass fibre
- Available with or without wire protection
- UL94-V2 Self-extinguishing as standard
- Middle barrier option available
- Printing available on request
- Easily cut to size
- Supplied cut to length on request
- Closed inserts (middle barrier) option
- Captive terminal screws
- Passes 960 Degree C glow-wire test according to EN 60695-2-11
External Length (mm) | 94 |
External Width (mm) | 18 |
External Height (mm) | 16 |
Weight (G) | 25 |
Base Material | Glass-filled Nylon |
Material Type | GF Polyamide 66 |
Colour | Grey |
UL Rating | UL94-V0 |
General Current Rating (A) | 24 |
VDE Current Rating (A) | 15 |
VDE Voltage Rating (V) | 450 |
Clamping Method | Wire Protector |
Max Wire size (mm) | 25 |
Operating Temperature | -5 Deg C to 160 Deg C |
Pitch (mm) | 8 |
No. of Poles | 12 |
Glow Wire Test | Yes |
