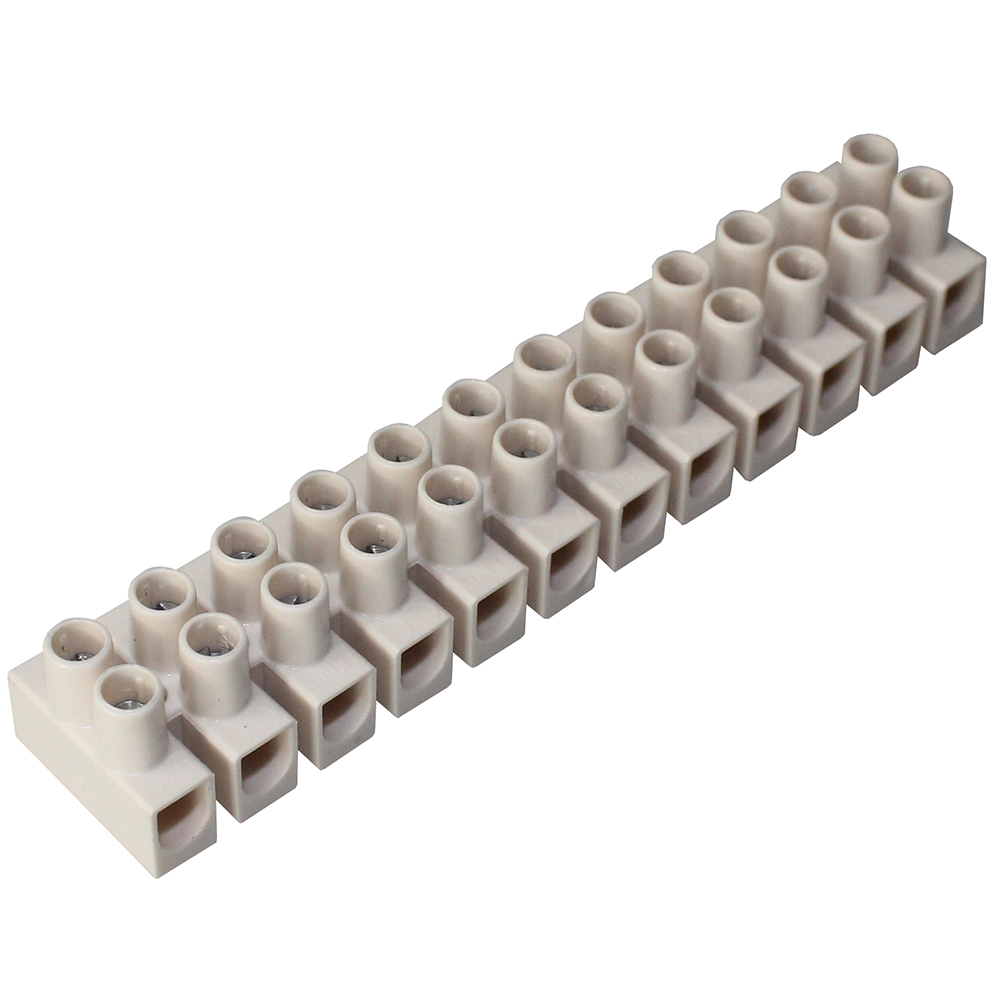

CTSN531/12 - Nylon Terminal Strip
12 Pole Terminal Strip, Wire Protector, 8mm Pitch, PA66
- Moulded from Natural PA6, Cream PA66, Grey PA66 Glass fibre
- Available with or without wire protection
- UL94-V2 Self-extinguishing as standard
- Passes 960 Degree C glow-wire test according to EN 60695-2-11
- Middle barrier option available
- Printing available on request
- Easily cut to size
- Supplied cut to length on request
- Closed inserts (middle barrier) option
- Captive terminal screws
| External Length (mm) | 94 |
| External Width (mm) | 18 |
| External Height (mm) | 15.5 |
| Weight (G) | 24.6 |
| Base Material | Nylon |
| Material Type | Polyamide 66 |
| Colour | Cream |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 24 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 450 |
| VDE Current Rating (A) | 15 |
| VDE Voltage Rating (V) | 450 |
| Clamping Method | Wire Protector |
| Max Wire size (mm) | 25 |
| Operating Temperature | -30 Deg C to 110 Deg C |
| Pitch (mm) | 8 |
| No. of Poles | 12 |
| Glow Wire Test | Yes |
3D Step Drawing
