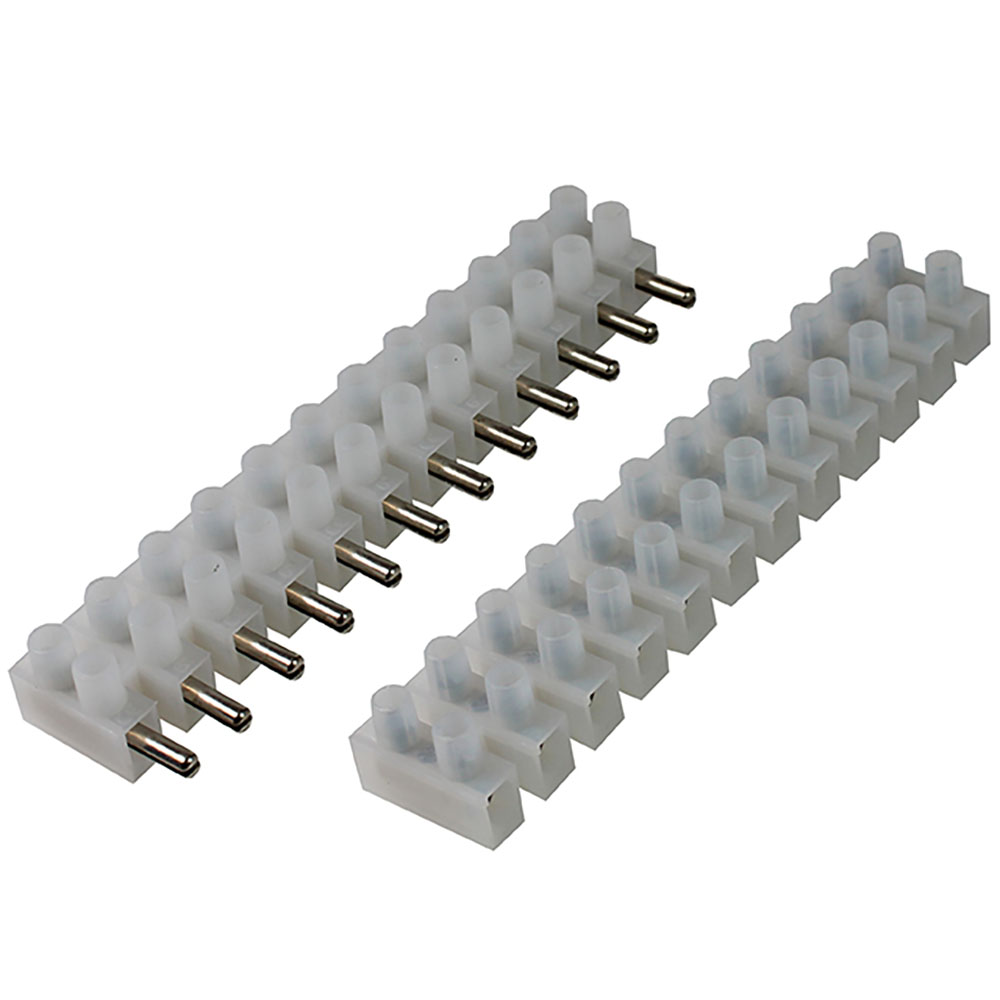

CTSN433/12MF - Pluggable Terminal Strip
Male and Female Set of Pluggable Terminal Strips, 10mm Pitch, 12 Pole
- Moulded in natural UL94-V2 PA6
- Easily cut to size
- Available pre-cut to length
- Passes 960 Degree C glow-wire test according to EN 60695-2-11
| External Length (mm) | 119 |
| External Width (mm) | 41 |
| External Height (mm) | 16 |
| Weight (G) | 68 |
| Base Material | Nylon |
| Material Type | Polyamide 6 |
| Colour | Natural |
| UL Rating | UL94-V2 |
| General Current Rating (A) | 24 |
| UL Current Rating (A) | 10 |
| UL Voltage Rating (V) | 450 |
| VDE Current Rating (A) | 24 |
| VDE Voltage Rating (V) | 450 |
| Clamping Method | Wire Protector |
| Max Wire size (mm) | 25 |
| Operating Temperature | -30 Deg C to 110 Deg C |
| Pitch (mm) | 10 |
| No. of Poles | 12 |
3D Step Drawing
