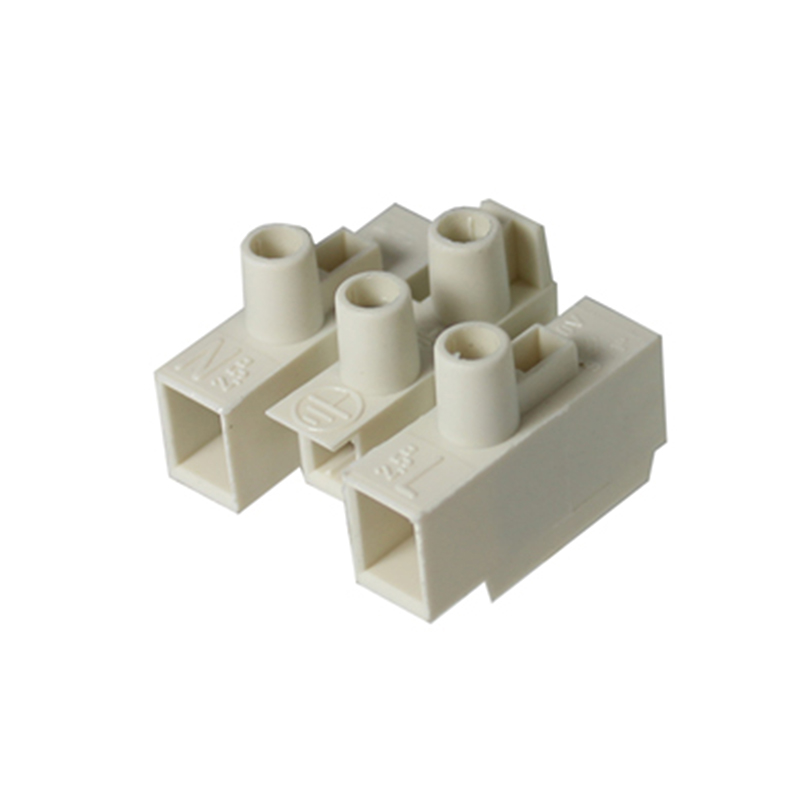

CTS4P/3ES - Screw to Screwless Terminal Strip
Screw to Screwless Terminal Strip, 4 Conductors, 3 Pole
- Moulded in UL94-V2 self-extinguishing PA66
- Fast connection of two or four solid conductors
- Screw to screw earth terminal
- Raised screws for easier insertion of conductors
- 12-poles, 2-poles plus earth, 3-poles plus earth or 4-poles plus earth
- 12-pole types can be pre-cut to specified number of poles
- All earth types marked with symbols for Live, Earth, and Neutral
- Passes 960 Degree C glow-wire test according to EN 60695-2-11
| External Length (mm) | 26.5 |
| External Width (mm) | 27.5 |
| External Height (mm) | 20 |
| Weight (G) | 9.7 |
| Base Material | Nylon |
| Material Type | Polyamide 66 |
| Colour | Cream |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 24 |
| VDE Current Rating (A) | 24 |
| VDE Voltage Rating (V) | 450 |
| Clamping Method | Screwless/Screw |
| Max Wire size (mm) | 25 |
| Operating Temperature | -30 Deg C to 110 Deg C |
| No. of Poles | 3 |
3D Step Drawing
