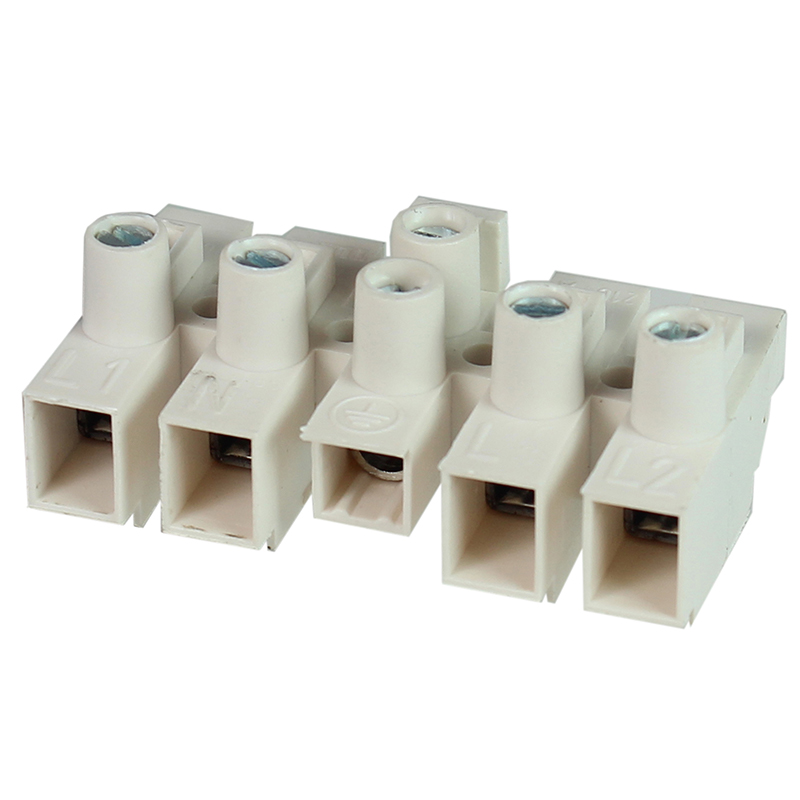

CTS2P/5E - Screw to Screwless Terminal Strip
Screw to Screwless Terminal Strip, 2 Conductors, 5 Pole
- Moulded in UL94-V2 self-extinguishing PA66
- Fast connection of two or four solid conductors
- Screw to screw earth terminal
- 12-poles, 2-poles plus earth, 3-poles plus earth or 4-poles plus earth
- 12-pole types can be pre-cut to specified number of poles
- All earth types marked with symbols for Live, Earth, and Neutral
- Passes 960 Degree C glow-wire test according to EN 60695-2-11
| External Length (mm) | 27.5 |
| External Width (mm) | 47 |
| External Height (mm) | 20 |
| Weight (G) | 15.8 |
| Base Material | Nylon |
| Material Type | Polyamide 66 |
| Colour | Cream |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 24 |
| VDE Current Rating (A) | 24 |
| VDE Voltage Rating (V) | 450 |
| Clamping Method | Screwless/Screw |
| Max Wire size (mm) | 25 |
| Operating Temperature | -30 Deg C to 110 Deg C |
| No. of Poles | 5 |
3D Step Drawing
Request
