CTBPTDVG/8 - Triple Decker Terminal Blocks, PCB Rising Clamp Terminal Block

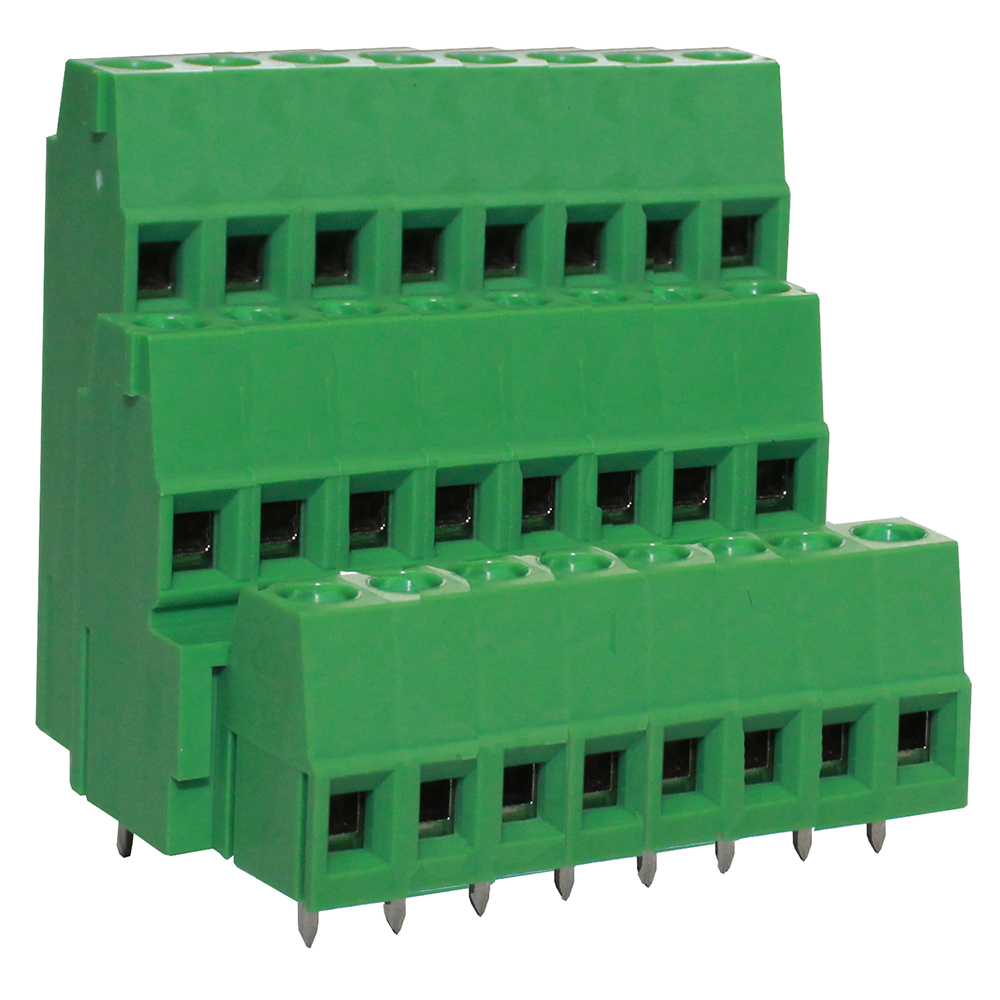

5mm Triple Decker Rising Clamp Terminal Block 24 Pole
- Triple decker terminals
- Moulded in green UL-94-V0 flame retardant PA66
- 1.5mm2 (30-14AWG)
- Professional rising clamp terminals
- Guided pin alignment
- UL & VDE approved
| External Length (mm) | 42.5 |
| External Width (mm) | 31.8 |
| External Height (mm) | 36.6 |
| Weight (G) | 41.6 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 15 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 18 |
| VDE Voltage Rating (V) | 250 |
| Clamping Method | Rising Clamp |
| Orientation | Vertical |
| Max Wire size (mm) | 15 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 5 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 30 to 14 |
| Cable Entry Solid Wire (mm2) | 1.5 |
| Cable Entry Stranded Wire (mm2) | 1.5 |
| No. of Poles | 24 |
| No. of Decks | 3 |
| Interlocking | Yes |
