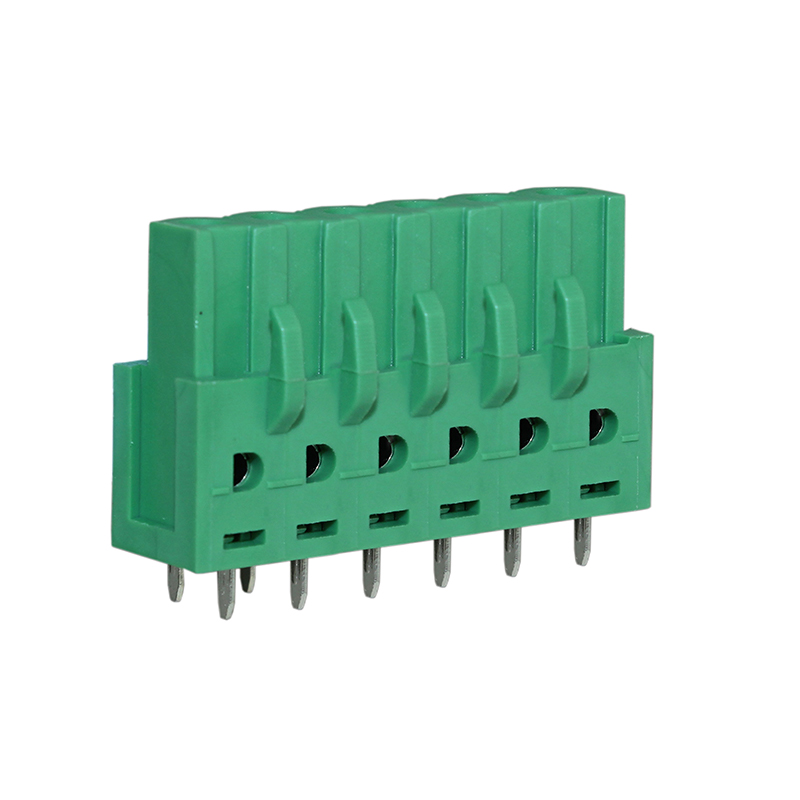

CTBP97VJ/6 - Female Vertical Connector, PCB Pluggable Rising Clamp Terminal Block
5.08mm Inverted/Reverse Terminal Block PCB Mounting Female Vertical Connector 6 Pole
- Horizontal & vertical orientations
- Polarized moldings
- Dual low pins for extra stability
- Also available in 5mm pitch
- Molded in green UL94-V0 flame retardant PA 66
- 1.5mm2 (28-14AWG)
- UL Approved
| External Length (mm) | 32.48 |
| External Width (mm) | 8.5 |
| External Height (mm) | 19 |
| Weight (G) | 8 |
| Base Material | Plastic |
| Material Type | Polyamide 66 |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 15 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| Orientation | Vertical |
| Max Wire size (mm) | 15 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 5.08 |
| CE Approval | Yes |
| UL Approval | Yes |
| Cable Size (AWG) | 28 to 14 |
| Cable Entry Solid Wire (mm2) | 1.5 |
| Cable Entry Stranded Wire (mm2) | 1.5 |
| No. of Poles | 6 |
| No. of Decks | 1 |
| PCB Plug or PCB Socket | Plug |
