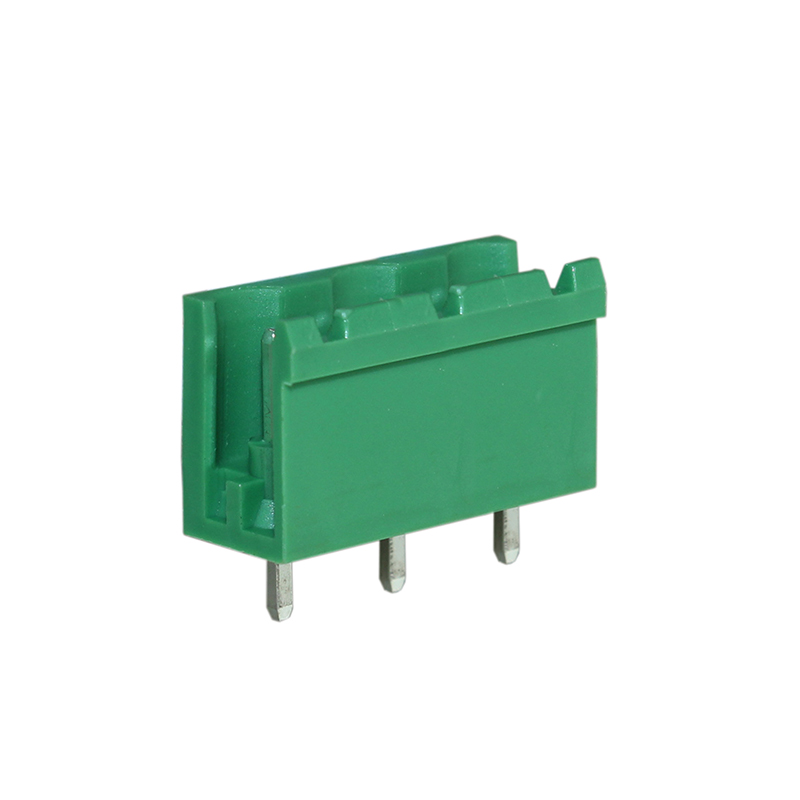

CTBP9508/3AO - Male Pluggable Terminal Blocks, PCB Pluggable Terminal Block
7.62mm Pluggable Terminal Block Male Header Open Ends 3 Pole
- 2-12 pole solid block
- Pluggable male-female connectors
- Open & closed headers
- Horizontal female plug style
- Polarised mouldings
- Moulded in green UL94-V0 flame retardant PA66
- Professional rising clamp terminals
- 1.5mm2 (28-14AWG) solid & stranded cable
- Anti solder wicking
- UL & VDE approved
| External Length (mm) | 20.9 |
| External Width (mm) | 8.5 |
| External Height (mm) | 12 |
| Weight (G) | 1.275 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 15 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 20 |
| VDE Voltage Rating (V) | 450 |
| Orientation | Horizontal |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 7.62 |
| CE Approval | Yes |
| UL Approval | Yes |
| No. of Poles | 3 |
| No. of Decks | 1 |
| PCB Plug or PCB Socket | Socket |
