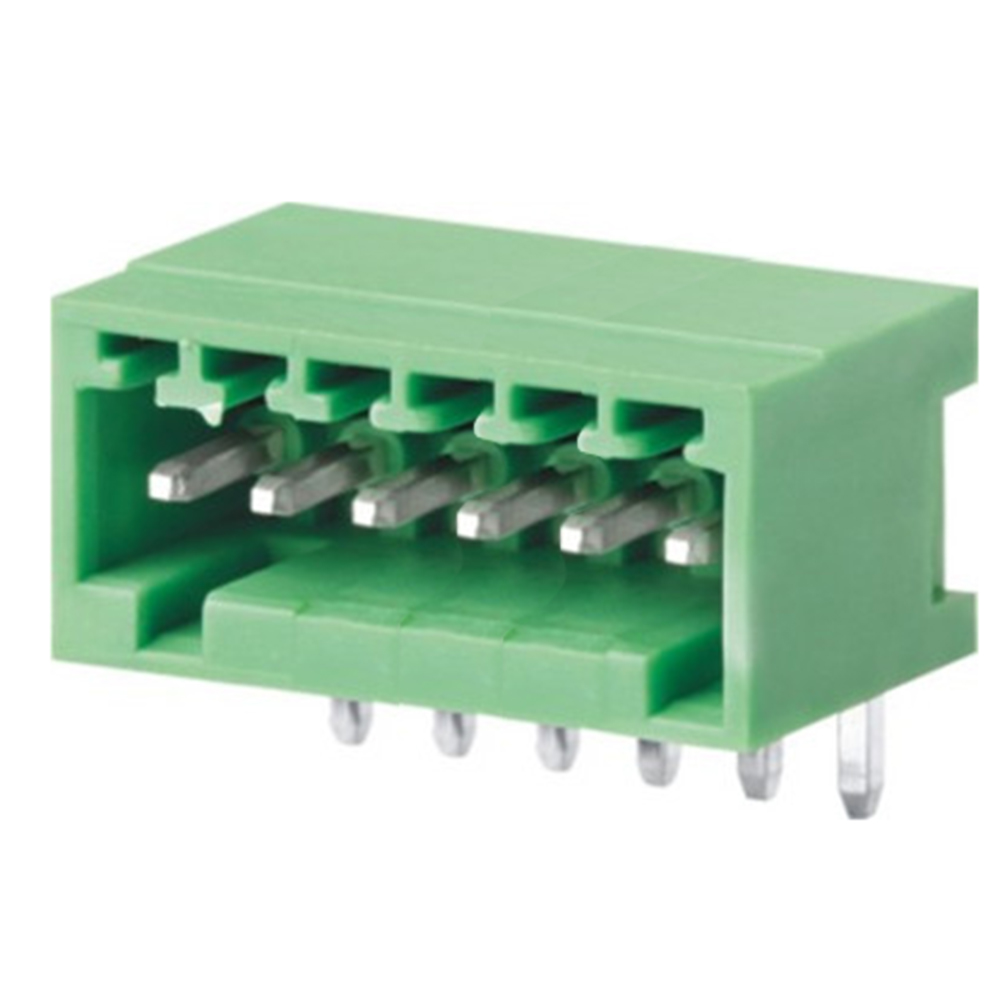

CTBP93HC/6 - Male Pluggable Terminal Blocks, PCB Pluggable Terminal Block
2.5mm Pluggable Terminal Block 90 Degree Male Header 6 Pole
- 2-12 pole solid block
- Screwless connectivity
- 0.12mm2 - 0.5mm2 (26-20AWG) Solid cable
- Pluggable male-female Connectors
- Polarised mouldings
- Moulded in green UL94-V0, flame retardant PA66
- UL approved
External Length (mm) | 16.9 |
External Width (mm) | 8.1 |
External Height (mm) | 10.1 |
Weight (G) | 1.2 |
Base Material | Plastic |
Material Type | Polyamide 66 |
Colour | Green |
UL Rating | UL94-V0 |
General Current Rating (A) | 4 |
UL Current Rating (A) | 4 |
UL Voltage Rating (V) | 150 |
Orientation | Horizontal |
Operating Temperature | -40 Deg C to 105 Deg C |
Pitch (mm) | 2.5 |
CE Approval | Yes |
UL Approval | Yes |
No. of Poles | 6 |
No. of Decks | 1 |
PCB Plug or PCB Socket | Socket |
