CTBP93HC/11 - Male Pluggable Terminal Blocks, PCB Pluggable Terminal Block

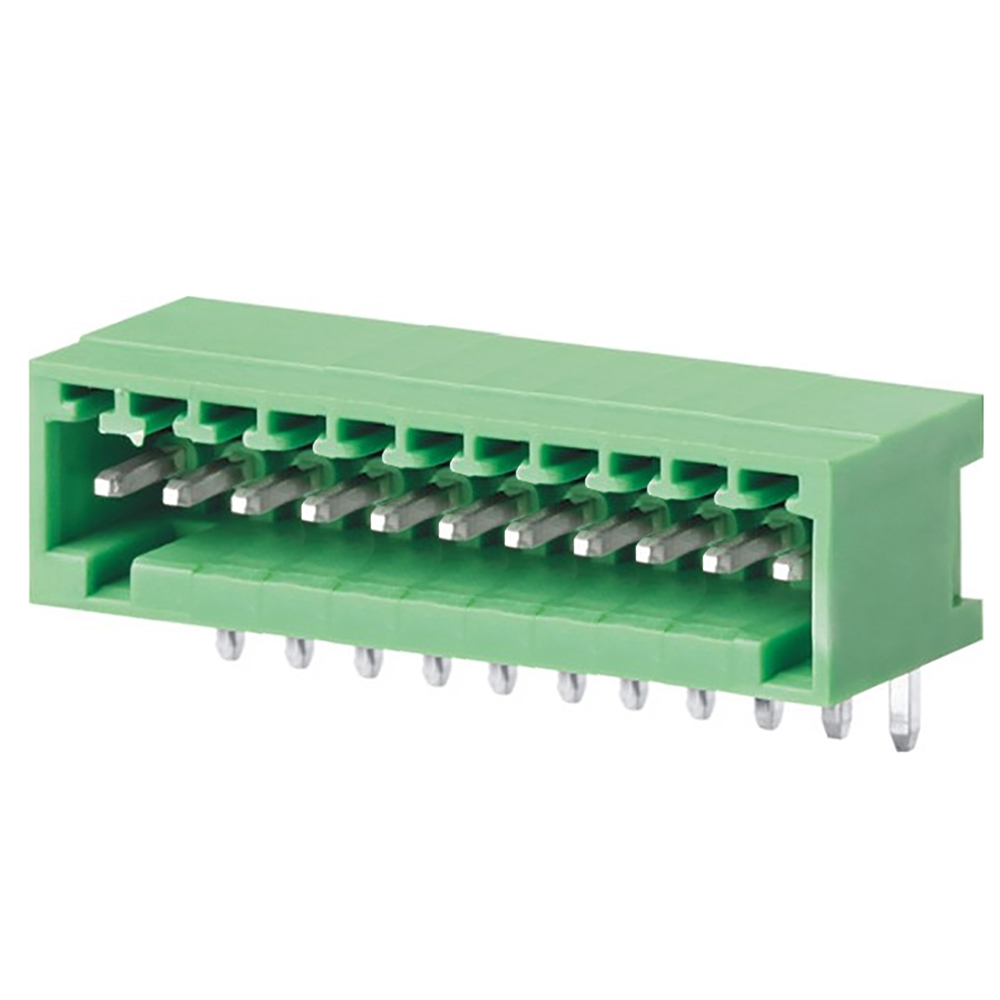

2.5mm Pluggable Terminal Block 90 Degree Male Header 11 Pole
- 2-12 pole solid block
- Screwless connectivity
- 0.12mm2 - 0.5mm2 (26-20AWG) Solid cable
- Pluggable male-female Connectors
- Polarised mouldings
- Moulded in green UL94-V0, flame retardant PA66
- UL approved
| External Length (mm) | 29.4 |
| External Width (mm) | 8.1 |
| External Height (mm) | 10.1 |
| Weight (G) | 2.2 |
| Base Material | Plastic |
| Material Type | Polyamide 66 |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 4 |
| UL Current Rating (A) | 4 |
| UL Voltage Rating (V) | 150 |
| Orientation | Horizontal |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 2.5 |
| CE Approval | Yes |
| UL Approval | Yes |
| No. of Poles | 11 |
| No. of Decks | 1 |
| PCB Plug or PCB Socket | Socket |
3D Step Drawing
