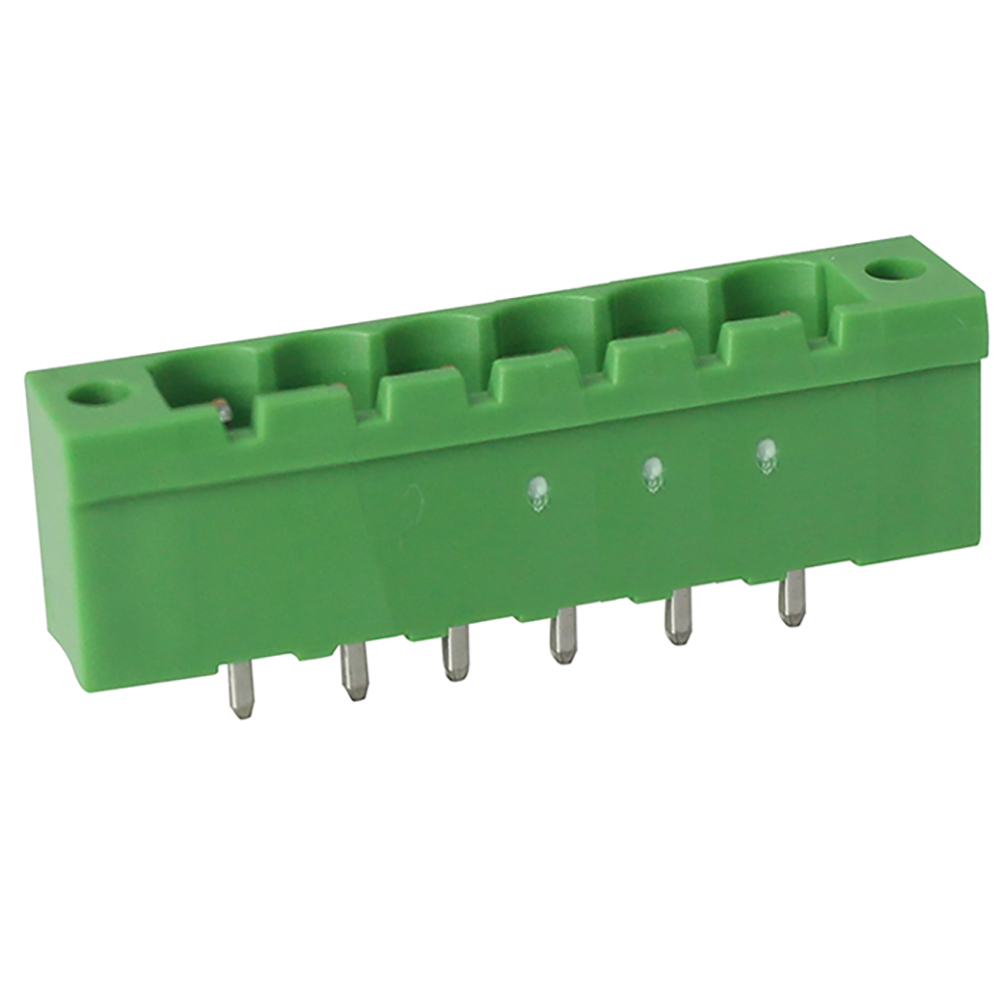

CTBP9308/6FL - Male Pluggable Flanged Terminal Blocks, PCB Pluggable Terminal Block
5.08mm Pluggable Terminal Block Male Header Flanged 6 Pole
- 2-12 pole solid block
- Pluggable male-female connectors
- Screw Flanges
- Horizontal & vertical female plug styles
- Polarised mouldings
- Moulded in green UL94-V0 flame retardant PA66
- Professional rising clamp terminals
- 0.8 to 2.08mm2 (28-14 AWG)
- Anti solder wicking
- UL & VDE approved
| External Length (mm) | 40.64 |
| External Width (mm) | 8.5 |
| External Height (mm) | 12 |
| Weight (G) | 3 |
| Base Material | Plastic |
| Material Type | Polyamide 66 |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 20 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 20 |
| VDE Voltage Rating (V) | 450 |
| Orientation | Vertical |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 5.08 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| No. of Poles | 6 |
| No. of Decks | 1 |
| Flanges/Lugs | Yes |
| PCB Plug or PCB Socket | Socket |
3D Step Drawing
