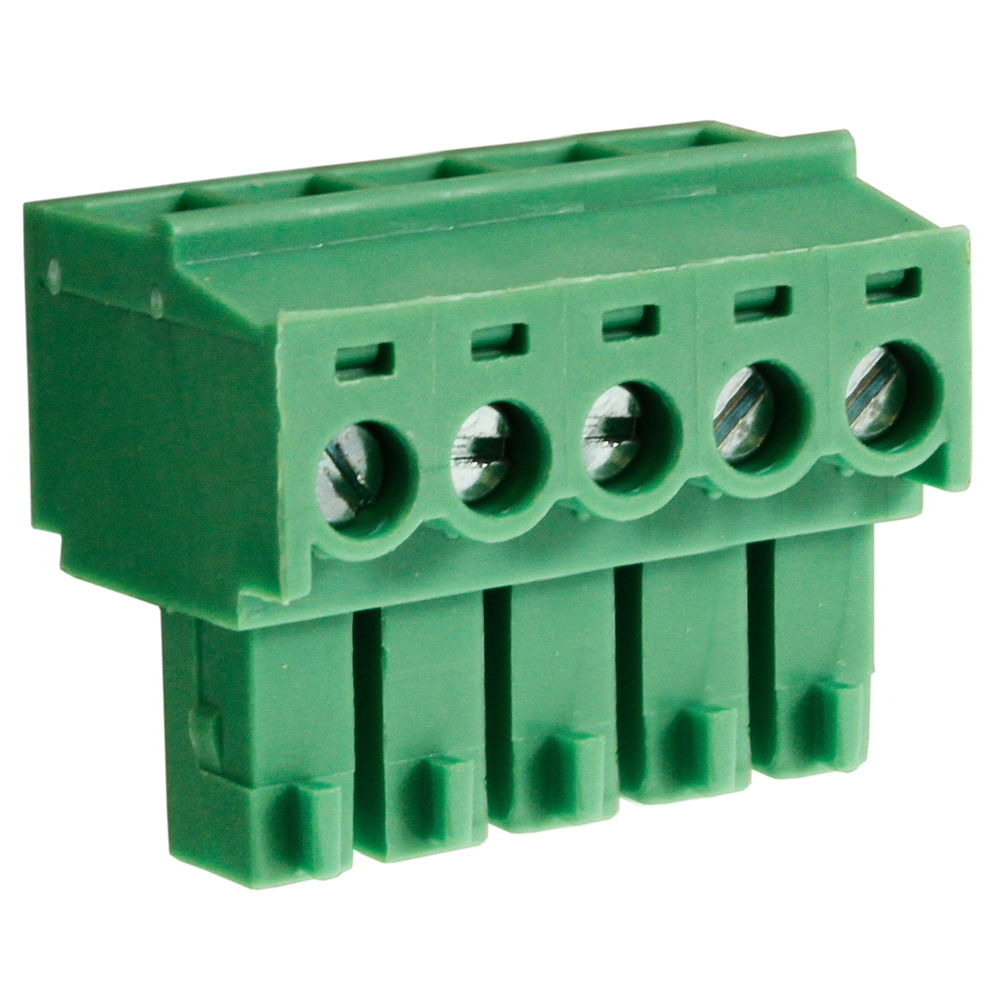

CTBP92HE/5 - Female Pluggable Terminal Blocks, PCB Pluggable Rising Clamp Terminal Block
3.81mm Pluggable Terminal Block Female Plug Horizontal 5 Pole
- 2-12 pole solid block
- Pluggable male-female connectors
- Closed headers
- Polarised mouldings
- Moulded in green UL94-V0 flame retardant PA66
- Professional rising clamp terminals
- 1.0mm2 (28-16AWG) solid & stranded cable
- Anti solder wicking
- Guided pin alignment
- UL & VDE approved
| External Length (mm) | 19.8 |
| External Width (mm) | 11.2 |
| External Height (mm) | 16.4 |
| Weight (G) | 3.42 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 8 |
| UL Current Rating (A) | 8 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 10 |
| VDE Voltage Rating (V) | 250 |
| Clamping Method | Rising Clamp |
| Orientation | Horizontal |
| Max Wire size (mm) | 1 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 3.81 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 28 to 16 |
| Cable Entry Solid Wire (mm2) | 1 |
| Cable Entry Stranded Wire (mm2) | 1 |
| No. of Poles | 5 |
| No. of Decks | 1 |
| PCB Plug or PCB Socket | Plug |
3D Step Drawing
