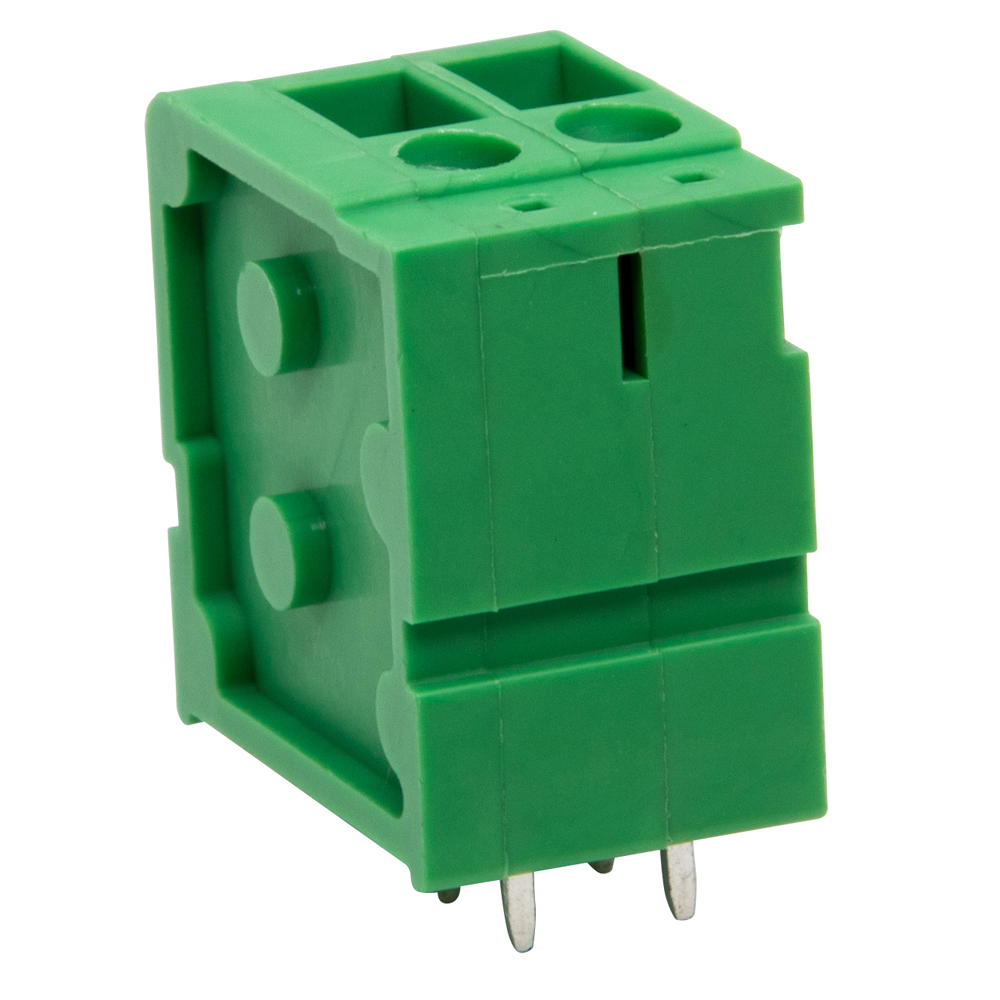

CTBP90HG/2 - Inline Screw Terminal Block
5mm Inline Vertical PCB Terminal Block 2 Pole
- 1 to 12 pole interlocking terminals in 5mm pitch
- System provides same-side access as wire entry
- Useful in applications with restricted vertical access
- Moulded in green UL94-V0 flame retardant PA66
- 2.5mm2 (24-12AWG)
- Double row pins for enhanced board stability
- UL & VDE approved
| External Length (mm) | 12.5 |
| External Width (mm) | 18.5 |
| External Height (mm) | 19.5 |
| Weight (G) | 6.9 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 20 |
| UL Current Rating (A) | 20 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 24 |
| VDE Voltage Rating (V) | 450 |
| Clamping Method | Screw Terminal |
| Orientation | Vertical |
| Max Wire size (mm) | 25 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 5 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 24 to 12 |
| Cable Entry Solid Wire (mm2) | 2.5 |
| Cable Entry Stranded Wire (mm2) | 2.5 |
| No. of Poles | 2 |
| No. of Decks | 1 |
| Interlocking | Yes |
3D Step Drawing
