CTBP77VP/5 - Very High Power Terminal Blocks, PCB Rising Clamp Terminal Block

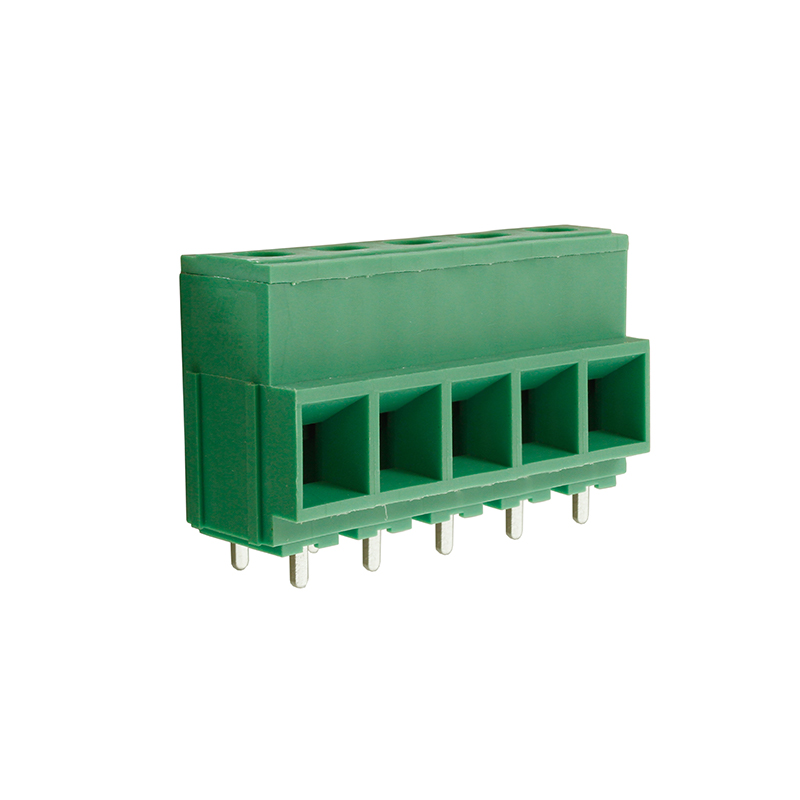

10.16mm Very High Power Rising Clamp PCB Terminal Block 5 Pole
- 2 & 3 pole double interlocking mechanism for increased strength
- Captive screws
- Moulded in green UL94-V0 flame retardant PA66
- Professional rising clamp terminals
- 10mm2 (20-6AWG)
- UL & VDE approved
| External Length (mm) | 51 |
| External Width (mm) | 18.7 |
| External Height (mm) | 29.6 |
| Weight (G) | 40.5 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 52 |
| UL Current Rating (A) | 52 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 57 |
| VDE Voltage Rating (V) | 750 |
| Clamping Method | Rising Clamp |
| Orientation | Vertical |
| Special Features | High Power |
| Max Wire size (mm) | 10 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 10.16 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 20 to 6 |
| Cable Entry Solid Wire (mm2) | 10 |
| Cable Entry Stranded Wire (mm2) | 10 |
| No. of Poles | 5 |
| No. of Decks | 1 |
| Interlocking | Yes |
