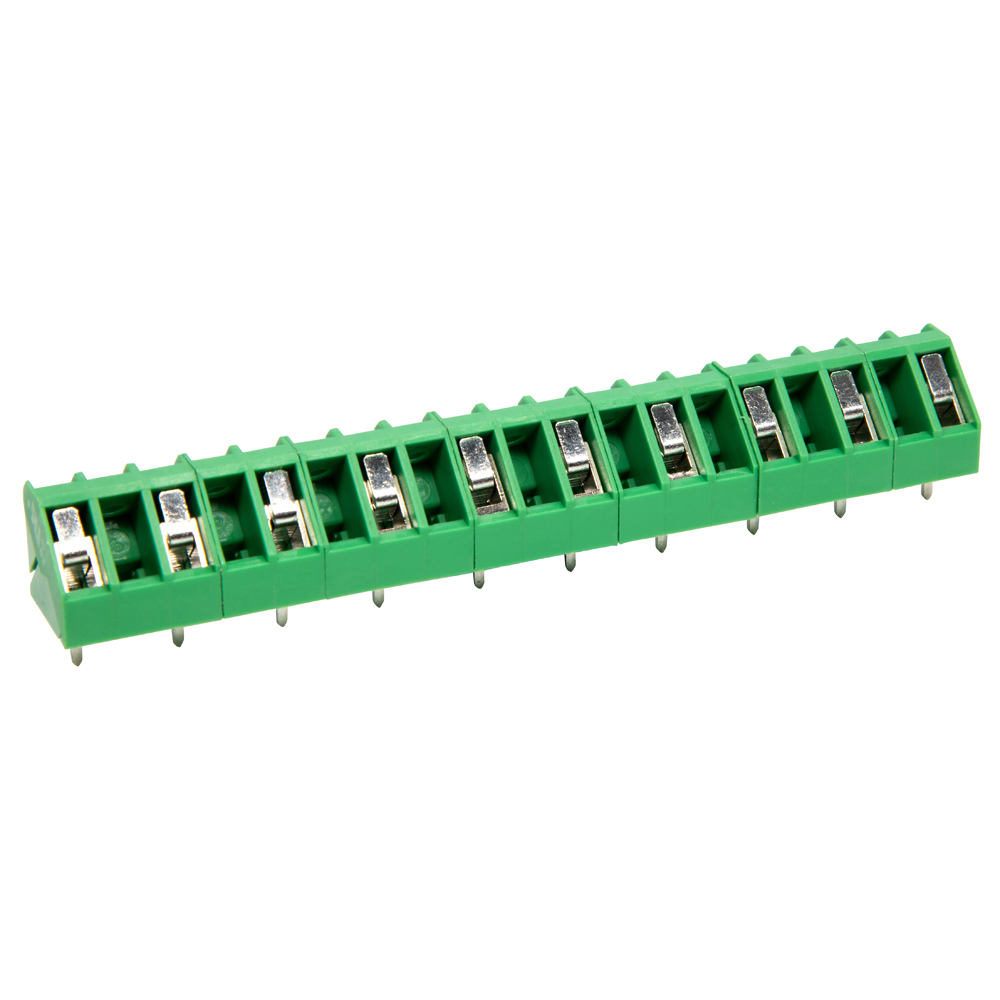

CTBP4000/10 - 45 Degree Terminal Blocks, PCB Rising Clamp Terminal Block
10mm Low Profile 45 Degree Rising Clamp Terminal Block 10 Pole
- 1 and 12 pole interlocking mechanism
- 45? mounting
- Captive screws
- Moulded in green UL94-V0 flame retardant PA
- Cable acceptance - 0.32-1.6mm2 (28-14 AWG)
- UL approved
| External Length (mm) | 95 |
| External Width (mm) | 12.35 |
| External Height (mm) | 12.3 |
| Weight (G) | 12 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 15 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| Clamping Method | Rising Clamp |
| Orientation | Vertical |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 10 |
| UL Approval | Yes |
| Cable Size (AWG) | 28-14 |
| Cable Entry Solid Wire (mm2) | 0.32-1.6mm2 |
| Cable Entry Stranded Wire (mm2) | 0.32-1.6mm2 |
| No. of Poles | 10 |
| Interlocking | Yes |
