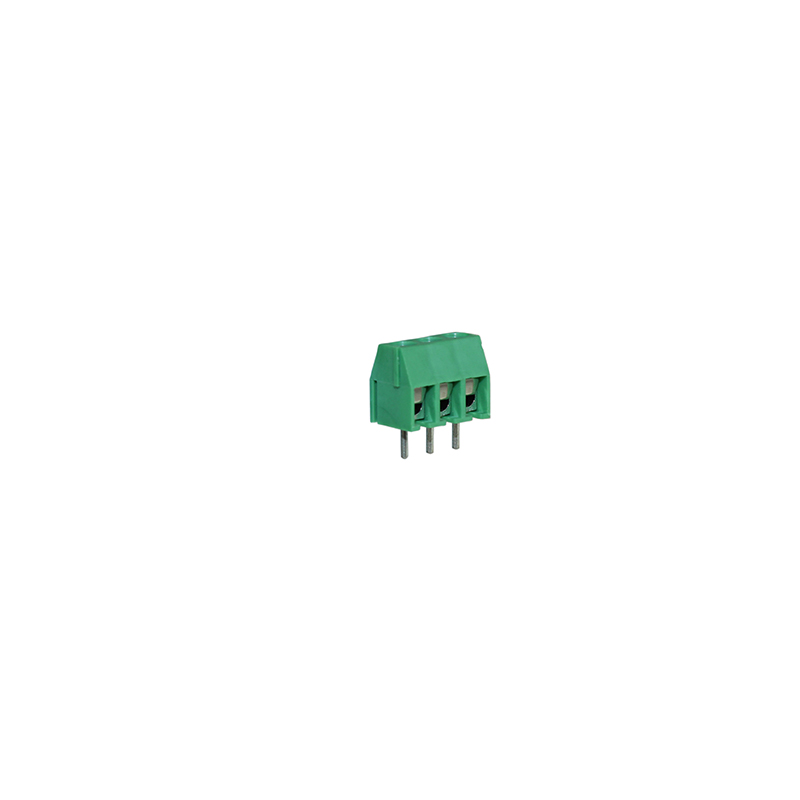

CTBP3051/3 - Ultra Low Profile Terminal Blocks, PCB Wire Protector Terminal Block
3.5mm Ultra Low Profile Wire Protector Terminal Block 3 Pole
- Ultra-low profile.
- 2-12 pole interlocking.
- Moulded in green UL94-V0 flame retardant PA.
- Double interlocking mechanism for increased strength.
- 0.2-1.0mm2 (24-18AWG)
- Captive screws.
- Guided pin alignment.
- Double interlock mechanism for increased strength.
- UL and VDE?approved
| External Length (mm) | 10.5 |
| External Width (mm) | 7 |
| External Height (mm) | 8.5 |
| Weight (G) | 1.2 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 10 |
| UL Current Rating (A) | 10 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 10 |
| VDE Voltage Rating (V) | 250 |
| Clamping Method | Wire Protector |
| Orientation | Vertical |
| Max Wire size (mm) | 1 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 3.5 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 24 to 18 |
| Cable Entry Solid Wire (mm2) | 0.5-1.0 |
| Cable Entry Stranded Wire (mm2) | 0.5-1.0 |
| No. of Poles | 3 |
| No. of Decks | 1 |
| Interlocking | Yes |
