CTBP2050/6 - Standard Profile Terminal Blocks, PCB Wire Protector Terminal Blocks

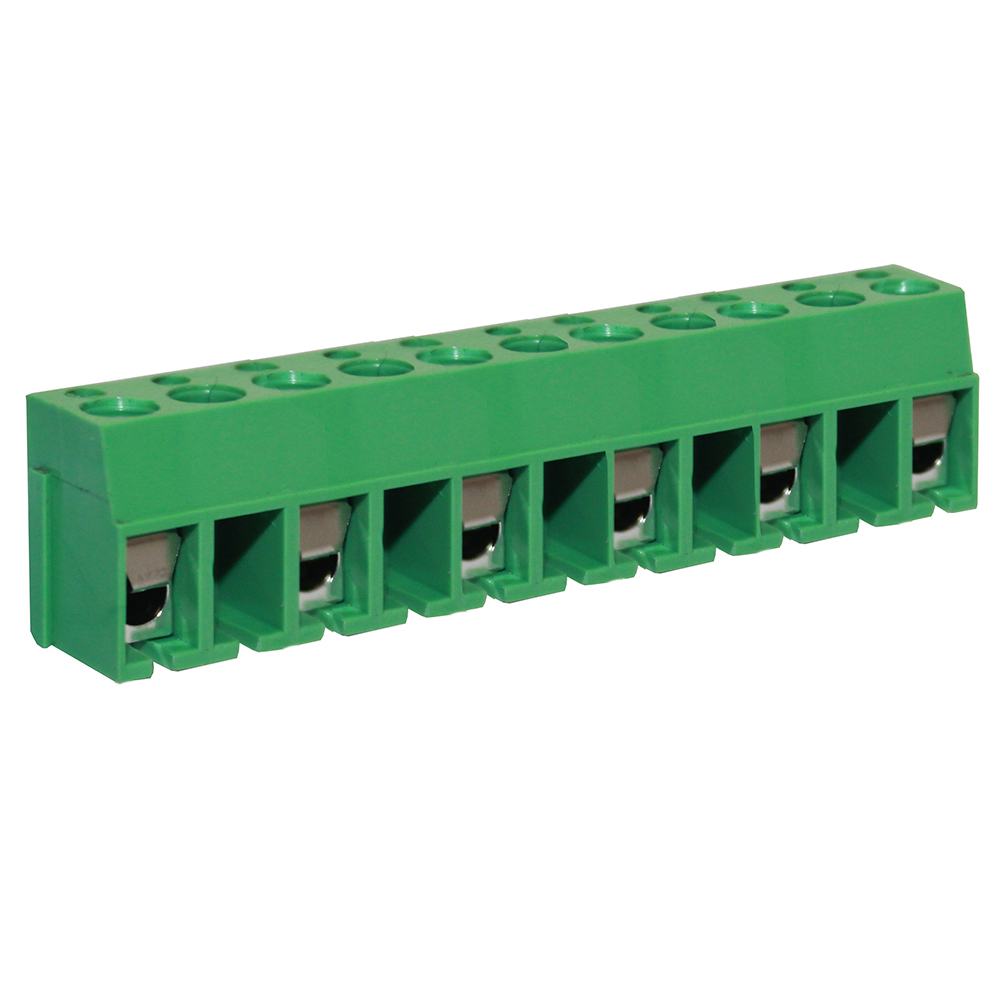

10mm Standard Profile 90 Degree Wire Protector Terminal Block 6 Pole
- 1 and 2 pole interlocking mechanism
- 3-6 pole solid block end stackable
- 90 degree mounting
- Moulded in green UL94-V0 flame retardant PA
- Cable acceptance - 0.33-2mm2 (22-14 AWG)
- Wire protector terminals
- Guided pin alignment
- Captive screws
- Anti solder wicking terminals
- UL approved
| External Length (mm) | 55 |
| External Width (mm) | 12.5 |
| External Height (mm) | 9 |
| Weight (G) | 7.602 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 16 |
| UL Current Rating (A) | 16 |
| UL Voltage Rating (V) | 250 |
| Clamping Method | Wire Protector |
| Orientation | Horizontal |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 10 |
| UL Approval | Yes |
| Cable Size (AWG) | 22-14 |
| Cable Entry Solid Wire (mm2) | 0.33-2mm2 |
| Cable Entry Stranded Wire (mm2) | 0.33-2mm2 |
| No. of Poles | 6 |
| Interlocking | Yes |
| Wire Protector | Yes |
