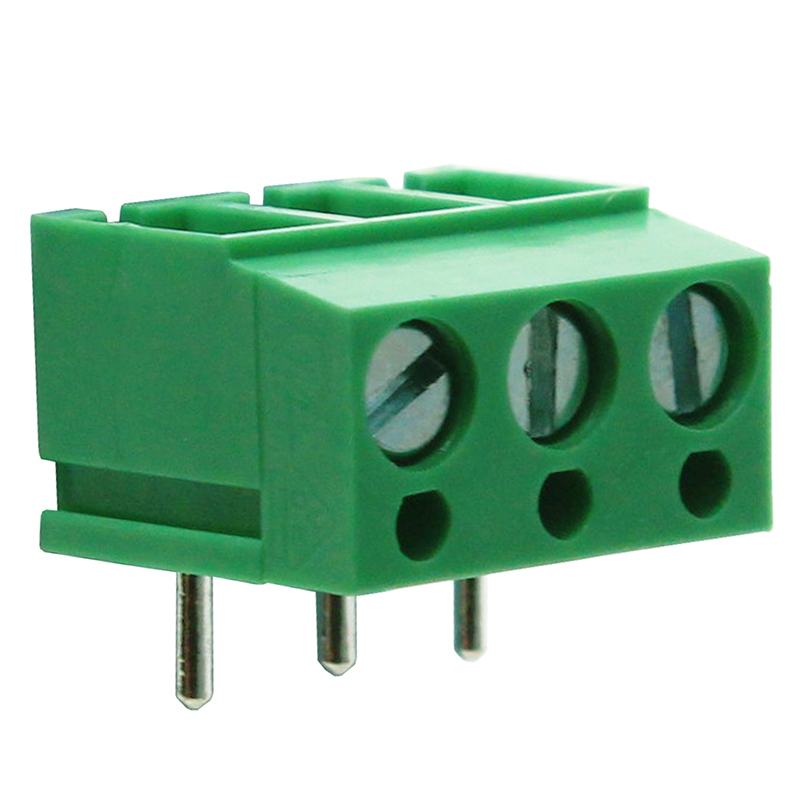

CTBP1050/3 - Standard Profile 90 Degree Terminal Blocks, PCB Wire Protector Terminal Block
5mm 90 Degree Wire Protector Terminal Block 3 Pole
- 2 & 3 pole interlocking
- Guided pin alignment
- Moulded in UL94-V0 Flame retardant PC
- Wire protector terminals
- 1.5mm2 (22-14AWG)
- Anti-solder wicking terminals
- UL & VDE approved
| External Length (mm) | 15 |
| External Width (mm) | 9 |
| External Height (mm) | 12.5 |
| Weight (G) | 4.5 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 16 |
| UL Current Rating (A) | 16 |
| UL Voltage Rating (V) | 250 |
| VDE Current Rating (A) | 24 |
| VDE Voltage Rating (V) | 250 |
| Clamping Method | Wire Protector |
| Orientation | Horizontal |
| Max Wire size (mm) | 15 |
| Operating Temperature | -30 Deg C to 120 Deg C |
| Pitch (mm) | 5 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 22 to 14 |
| Cable Entry | 90 Degree |
| Cable Entry Solid Wire (mm2) | 0.5-1.5 |
| Cable Entry Stranded Wire (mm2) | 0.5-1.5 |
| No. of Poles | 3 |
| No. of Decks | 1 |
| Interlocking | Yes |
