CTBP0558/4 - Low Profile 90 Degree Terminal Blocks, PCB Rising Clamp Terminal Block

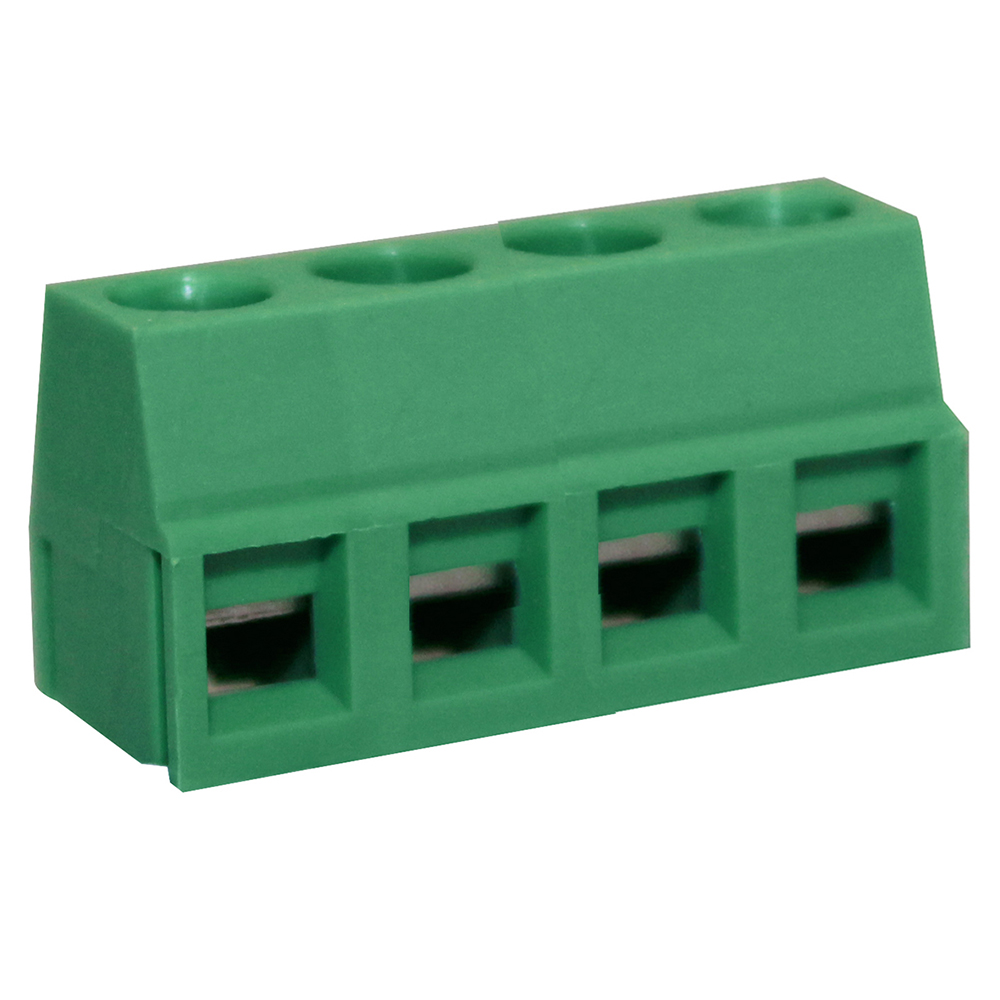

5.08mm Low Profile 90 Degree Rising Clamp Terminal Block 4 Pole
- 2 and 3 pole double interlocking mechanism for increased strength
- 4-12 pole solid block
- Moulded in green UL94-V0 flame retardant PA66
- Professional rising clamp terminals
- Cable acceptance - 0.1-2.8mm2 (26-14AWG)
- Guided pin alignment
- Captive screw
- UL approved
| External Length (mm) | 20.32 |
| External Width (mm) | 10.8 |
| External Height (mm) | 8.5 |
| Weight (G) | 3.6 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 12 |
| UL Current Rating (A) | 12 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 17.5 |
| VDE Voltage Rating (V) | 250 |
| Clamping Method | Rising Clamp |
| Orientation | Horizontal |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 5.08 |
| UL Approval | Yes |
| Cable Size (AWG) | 26-14 |
| Cable Entry Solid Wire (mm2) | 0.1-2.8mm2 |
| Cable Entry Stranded Wire (mm2) | 0.1-2.8mm2 |
| No. of Poles | 4 |
| Interlocking | Yes |
3D Step Drawing
