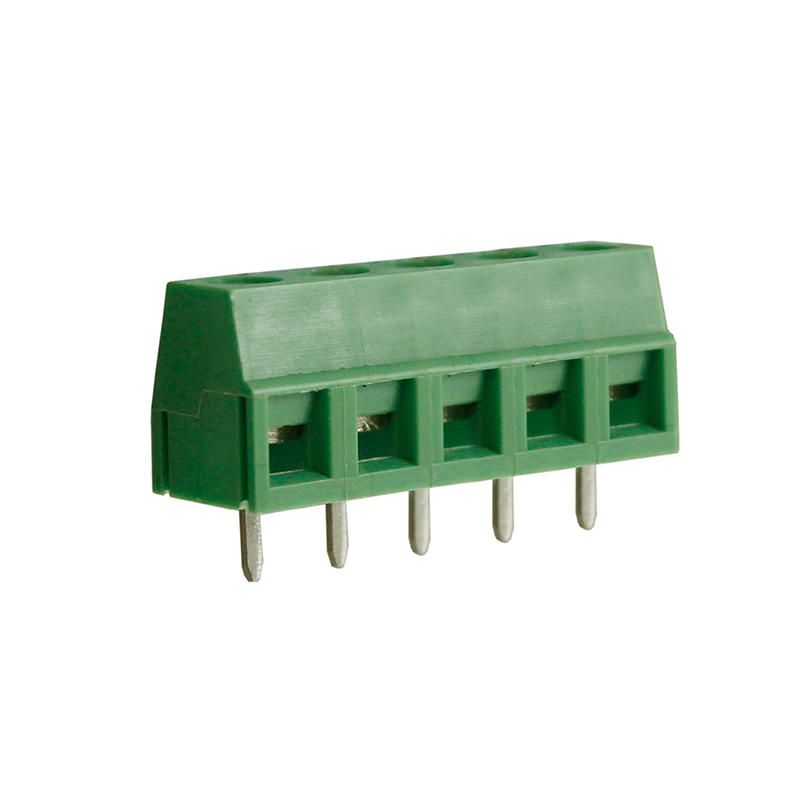

CTBP0508/5 - Low Profile Terminal Blocks, PCB Rising Clamp Terminal Block
5.08mm Low Profile Rising Clamp Terminal Block 5 Pole
- 2 & 3 pole double interlocking mechanism for increased strength
- Moulded in green UL94-V0 flame retardant PA66
- Professional rising clamp terminals
- 1.5mm2 (26-16AWG)
- Guided pin alignment
- Captive screw
- UL & VDE approved
| External Length (mm) | 25.4 |
| External Width (mm) | 8.5 |
| External Height (mm) | 10.2 |
| Weight (G) | 4.5 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 8 |
| UL Current Rating (A) | 8 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 15 |
| VDE Voltage Rating (V) | 250 |
| Clamping Method | Rising Clamp |
| Orientation | Vertical |
| Max Wire size (mm) | 15 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 5.08 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 26 to 16 |
| Cable Entry Solid Wire (mm2) | 1.5 |
| Cable Entry Stranded Wire (mm2) | 1.5 |
| No. of Poles | 5 |
| No. of Decks | 1 |
| Interlocking | Yes |
