CTBP04VY/7 - High Power Terminal Blocks, PCB Rising Clamp Terminal Block

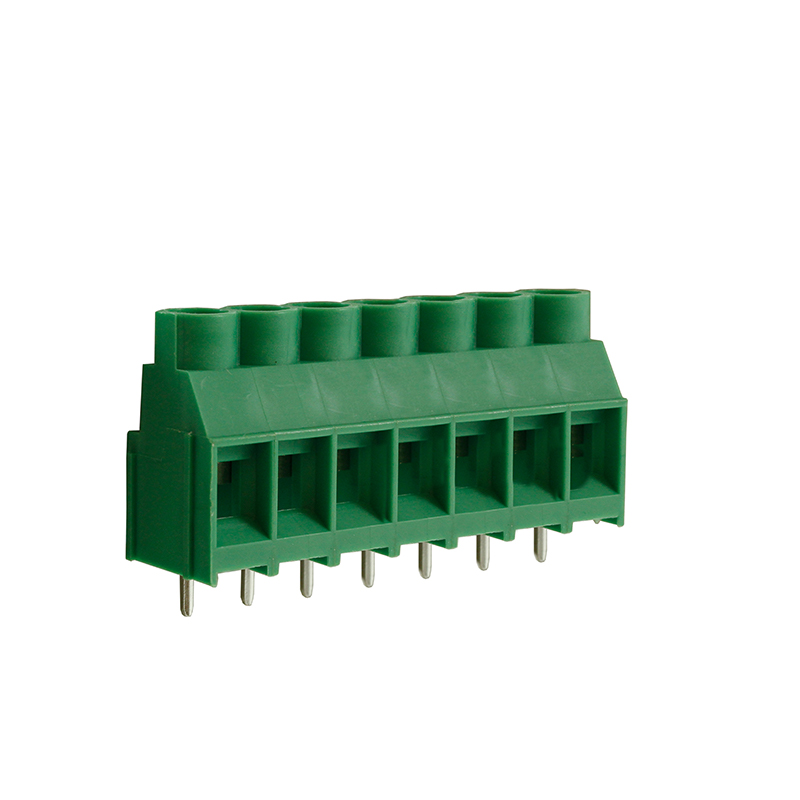

6.35mm High Power Rising Clamp Terminal Block 7 Pole
- 2 & 3 pole double interlocking mechanism for increased strength
- Moulded in green UL94-V0 flame retardant PA66
- Professional rising clamp terminals
- 4mm2 (26-10AWG)
- Guided pin alignment
- UL & VDE approved
| External Length (mm) | 44.47 |
| External Width (mm) | 12.7 |
| External Height (mm) | 21.5 |
| Weight (G) | 17.969 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 30 |
| UL Current Rating (A) | 30 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 32 |
| VDE Voltage Rating (V) | 450 |
| Clamping Method | Rising Clamp |
| Orientation | Vertical |
| Special Features | High Power |
| Max Wire size (mm) | 4 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 6.35 |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 26 to 10 |
| Cable Entry Solid Wire (mm2) | 4 |
| Cable Entry Stranded Wire (mm2) | 4 |
| No. of Poles | 7 |
| No. of Decks | 1 |
| Interlocking | Yes |
