CTBP0305/8 - Low Profile Terminal Blocks, PCB Wire Protector Terminal Block

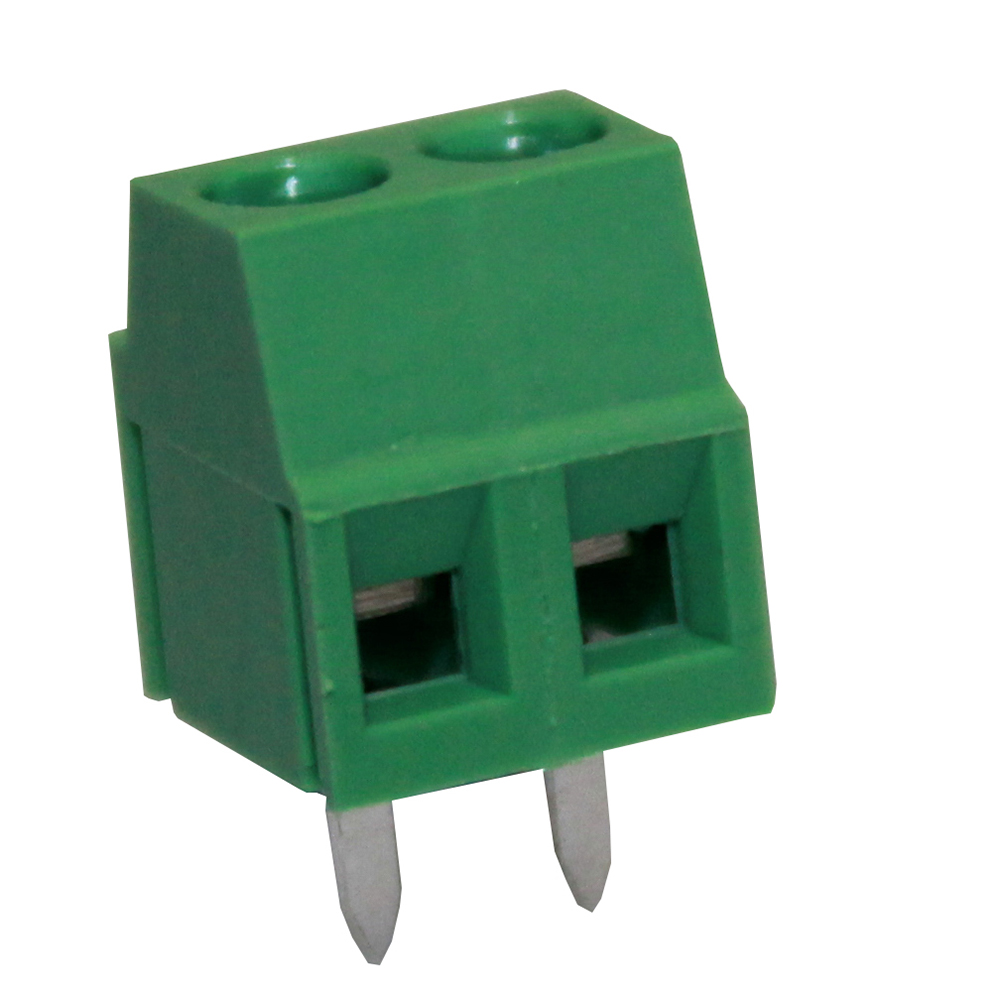

3.5mm Low Profile Rising Clamp Terminal Block 8 pole
- 2-12 pole interlocking
- 4-12 pole pre-assembled
- Ultra low profile
- Moulded in green UL94-V0 flame retardant PA
- Professional rising clamp terminals
- 0.32-1.3mm2 (28-16AWG) cable
- Captive screws
- Guided pin alignment
- Double interlock mechanism for increased strength
- UL approved
| External Length (mm) | 28 |
| External Width (mm) | 7.4 |
| External Height (mm) | 8.5 |
| Weight (G) | 4.16 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 15 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 15 |
| VDE Voltage Rating (V) | 250 |
| Clamping Method | Rising Clamp |
| Orientation | Vertical |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 3.5 |
| UL Approval | Yes |
| VDE Approval | Yes |
| Cable Size (AWG) | 28-16 |
| Cable Entry Solid Wire (mm2) | 0.32-1.3mm2 |
| Cable Entry Stranded Wire (mm2) | 0.32-1.3mm2 |
| No. of Poles | 8 |
| Interlocking | Yes |
