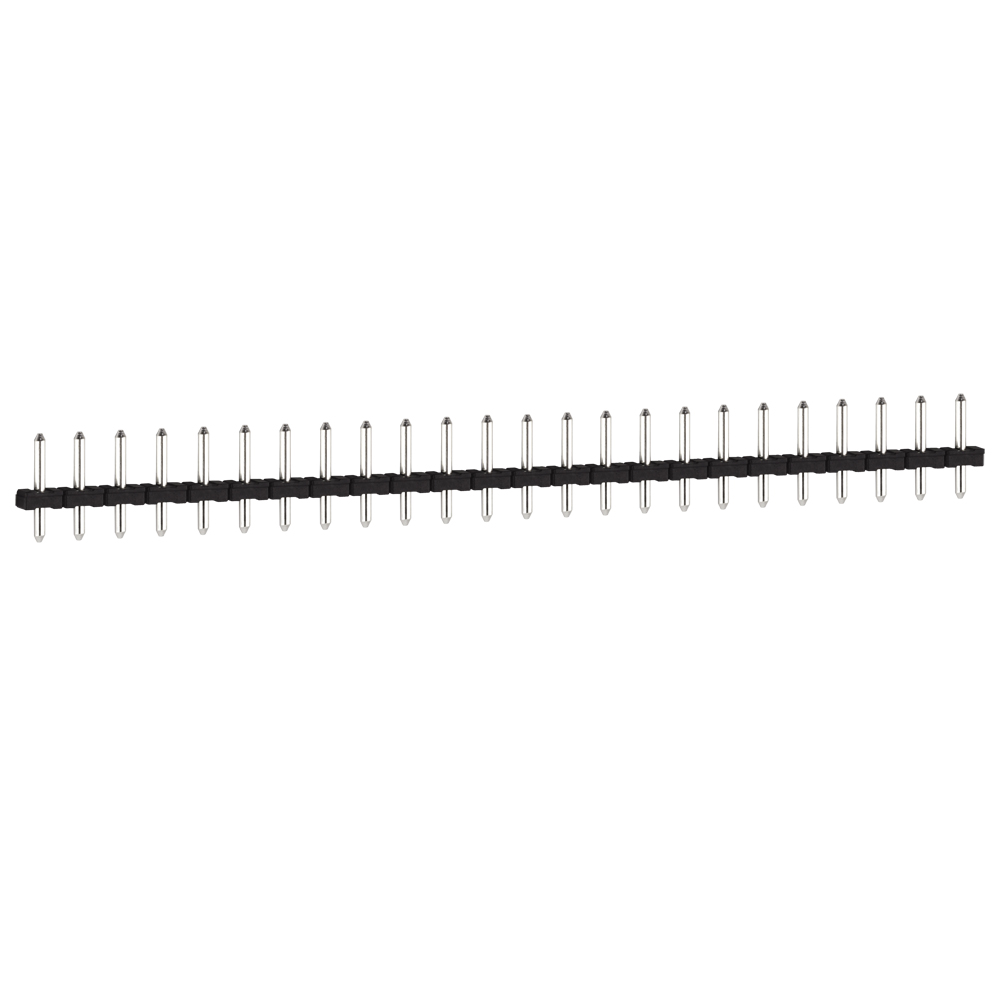

CTBA1301/PS24 - Pin Strip Header, PCB Pluggable Rising Clamp Terminal Block
5mm Pin Strip Header 24 Pole
- Supplied in 24 way
- Easily cut to required length
- Can be supplied pre-cut
- Flame retardant PBT material
- Anti solder wicking
- Guided pin alignment
| External Length (mm) | 120 |
| External Width (mm) | 2.8 |
| External Height (mm) | 12.5 |
| Weight (G) | 4 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Black |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 10 |
| UL Current Rating (A) | 15 |
| UL Voltage Rating (V) | 300 |
| VDE Current Rating (A) | 10 |
| VDE Voltage Rating (V) | 300 |
| Clamping Method | Wire Protector |
| Orientation | Vertical/Horizontal |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Pitch (mm) | 5 |
| UL Approval | Yes |
| No. of Poles | 24 |
| No. of Decks | 1 |
3D Step Drawing
