CSTBP9208/10 - Female Pluggable Screwless Terminal Blocks, PCB Screwless Terminal Block

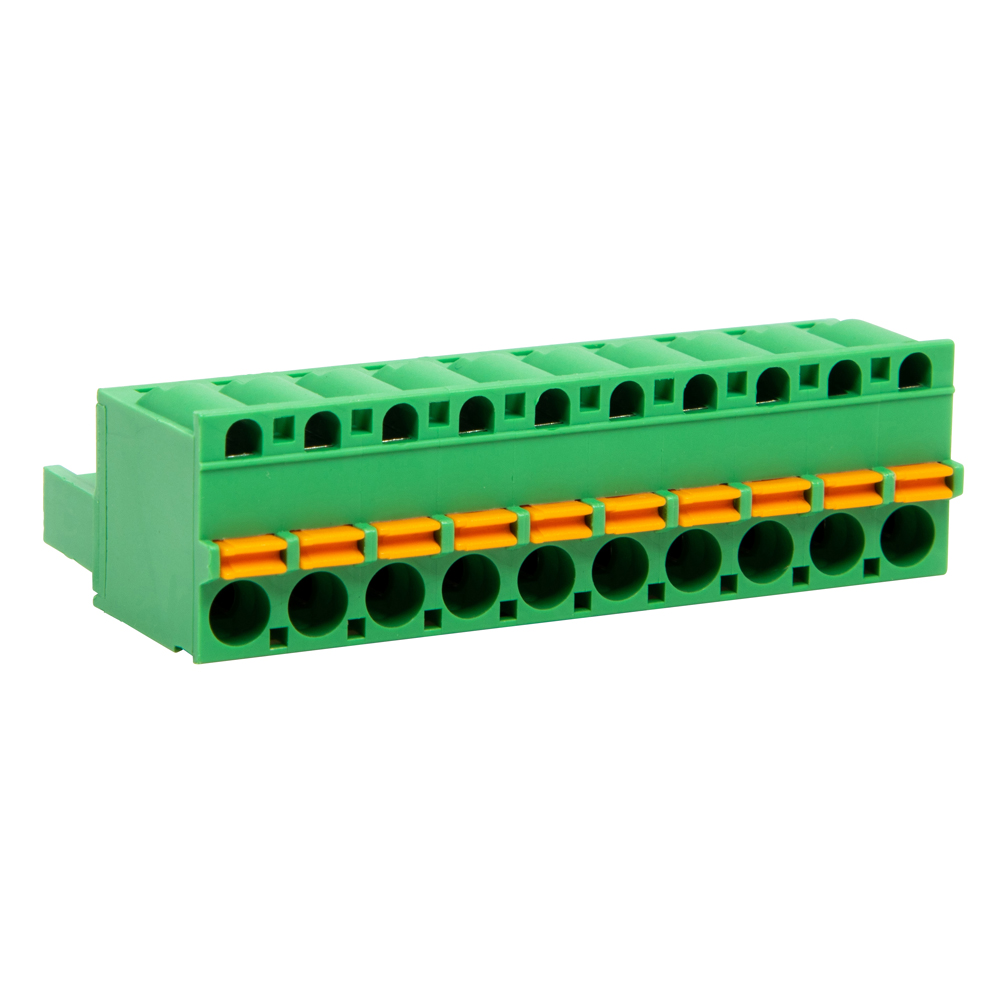

5.08mm Pitch Female Pluggable Screwless Terminal Block 10 Pole
- 2-12 pole solid block
- Screwless connectivity
- Moulded in green UL94-V0, flame retardant PA66
- Cable acceptance - 0.08 - 2.08mm2 (28-14 AWG) solid and stranded cable
- Compatible with all 5.08 pluggable male headers
- Pluggable female connectors
- Polarised mouldings
- UL approved
| External Length (mm) | 51.4 |
| External Width (mm) | 24.4 |
| External Height (mm) | 15 |
| Weight (G) | 16.5 |
| Base Material | Plastic |
| Material Type | Polyamide 66 |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 10 |
| UL Current Rating (A) | 10 |
| UL Voltage Rating (V) | 300 |
| Clamping Method | Screwless/Screw |
| Orientation | Horizontal |
| Operating Temperature | -40 deg C to +105 deg C |
| Pitch (mm) | 5.08 |
