CSTBP762H/7 - Screwless Terminal Blocks, PCB Screwless Terminal Block

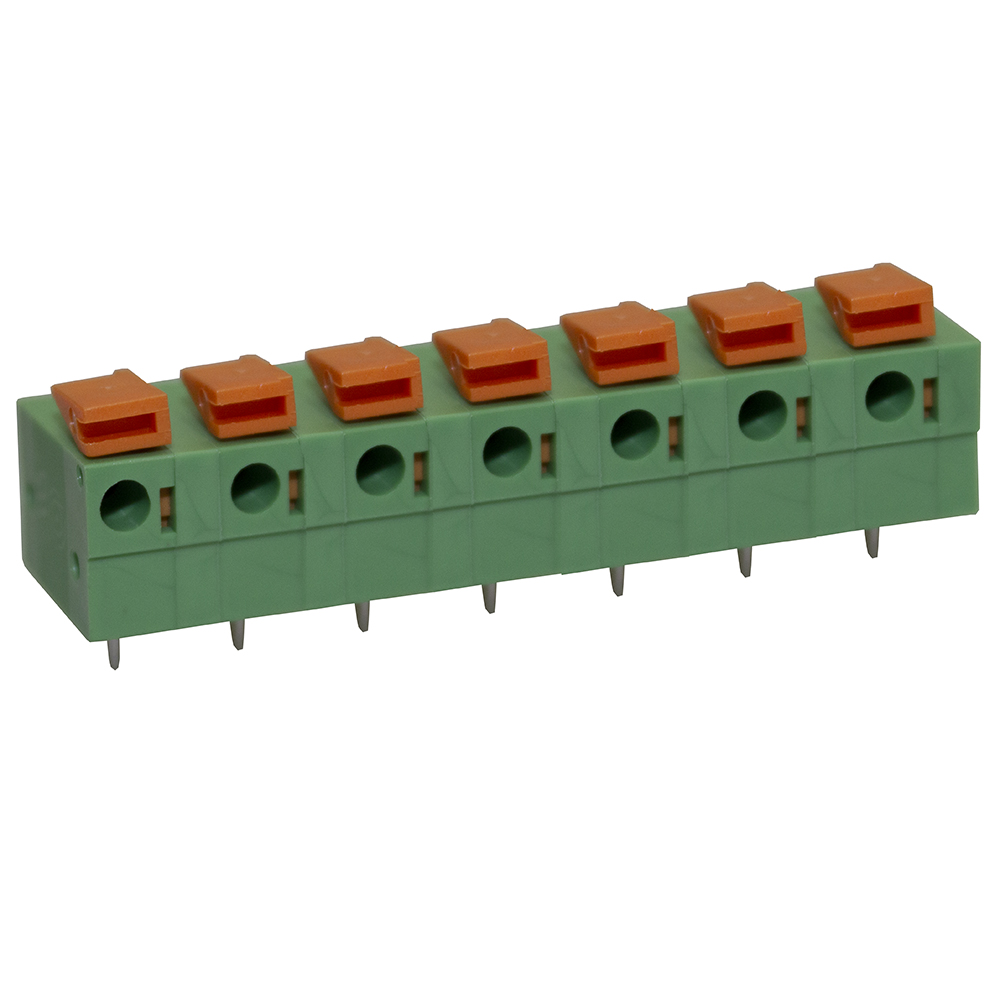

7.62mm Pitch Horizontal Screwless Terminal Block 7 Pole
- Interlocking Modules
- Easily breakable to desired number of poles
- Guided pin alignment
- Choice of vertical or horizontal cable entry
- Guided pin alignment
- Moulded in green UL94-V0 PA66
- 0.08-1.3mm2 cable (28-16AWG)
- UL Approved
| External Length (mm) | 55.88 |
| External Width (mm) | 14.2 |
| External Height (mm) | 13.55 |
| Weight (G) | 9.1 |
| Base Material | Plastic |
| Material Type | Polyamide 66 |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 10 |
| UL Current Rating (A) | 300 |
| UL Voltage Rating (V) | 300 |
| Clamping Method | Screwless |
| Max Wire size (mm) | 13 |
| Operating Temperature | -40?C to +115?C |
| Pitch (mm) | 7.62 |
| UL Approval | Yes |
| Cable Size (AWG) | 28 to 16 |
| Cable Entry Solid Wire (mm2) | 0.32-2.5mm2 |
| Cable Entry Stranded Wire (mm2) | 0.32-2.5mm2 |
| No. of Poles | 7 |
