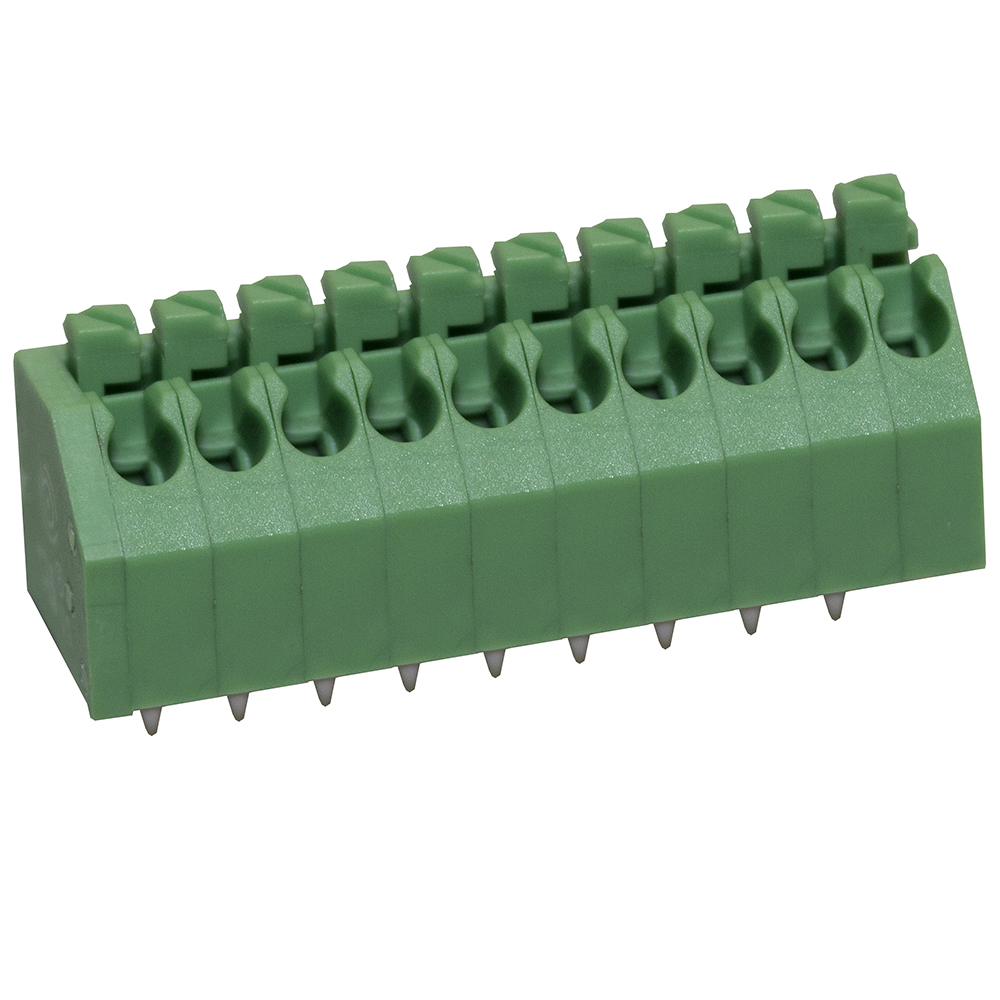

CSTBP45VDB/10 - Screwless Terminal Blocks, PCB Screwless Terminal Block
3.5mm Pitch Screwless Terminal Block 10 Pole Pin Setting B
- Interlocking Modules
- Easily breakable to desired number of poles
- 45 degree cable entry
- Kinked pins for soldering retention
- Guided pin alignment
- Offset pinout allows greater voltage clearance
- Choice of 2 pin settings
- Moulded in green UL94-V0 PA66
- 0.34 - 0.75mm2 cable (22-18AWG)
- UL Approved
| External Length (mm) | 36.6 |
| External Width (mm) | 12 |
| External Height (mm) | 13.1 |
| Weight (G) | 5 |
| Base Material | Plastic |
| Material Type | Polyamide 66 |
| Colour | Green |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 10 |
| UL Current Rating (A) | 300 |
| UL Voltage Rating (V) | 300 |
| Clamping Method | Screwless |
| Max Wire size (mm) | 75 |
| Operating Temperature | -40?C to +115?C |
| Pitch (mm) | 3.5 |
| UL Approval | Yes |
| Cable Size (AWG) | 22 to 18 |
| Cable Entry Solid Wire (mm2) | 0.34 - 0.75mm2 |
| Cable Entry Stranded Wire (mm2) | 0.34 - 0.75mm2 |
| No. of Poles | 10 |
