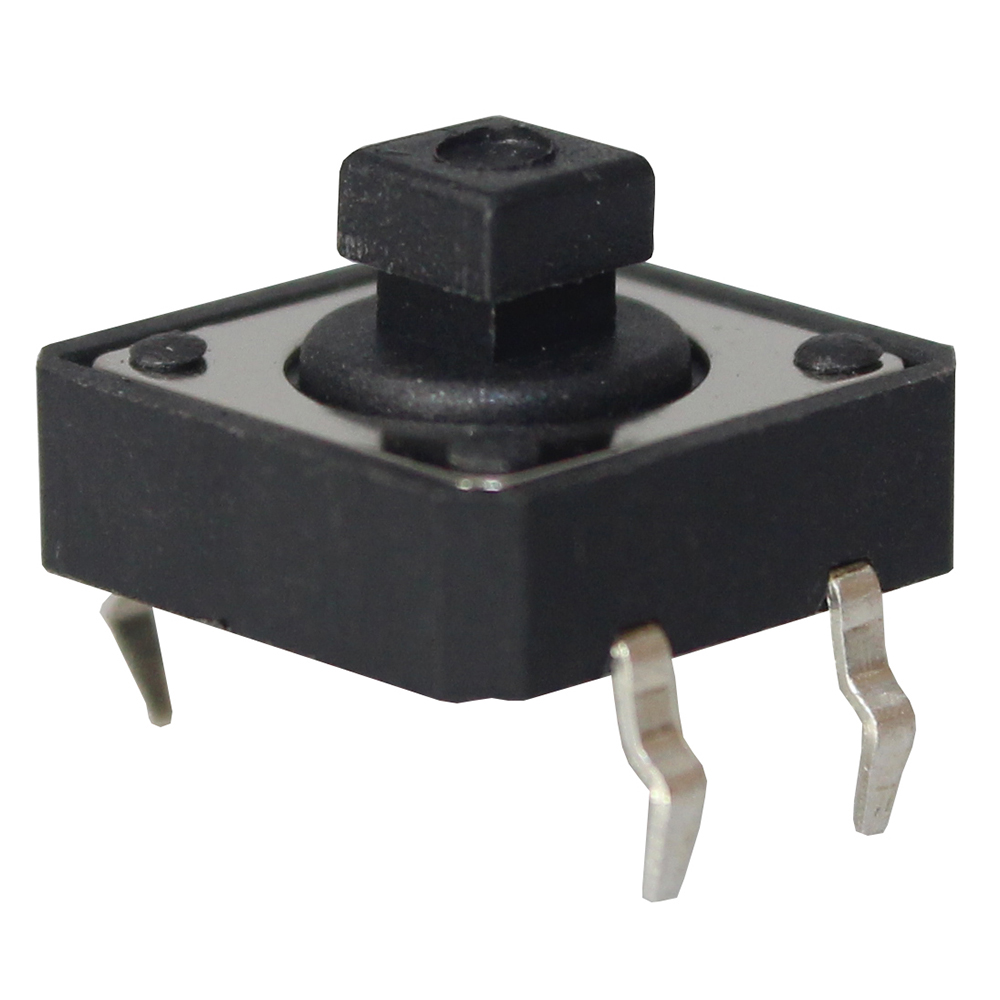

CST12S0AT - 12x12mm Tact Switch
12 x 12mm Through-Hole Tactile Switch, 7.3mm Button Height
- Advanced switch technology
- Positive tactile action
- Tamper proof application
- Flow solder wash-away cleaning
- Through-hole PCB & surface mount terminals
- Square & round button styles
- Choice of button caps
- Can be supplied taped for auto-insertion, add suffix /T
| External Length (mm) | 12 |
| External Width (mm) | 12 |
| External Height (mm) | 7.3 |
| Base Material | Nylon |
| Colour | Black |
| General Current Rating (A) | 0.05 |
| Terminal Type | Through-Hole |
| Operating Temperature | -10 Deg C to 60 Deg C |
| Actuator Height over PCB (mm) | 7.3 |
3D Step Drawing
Request
