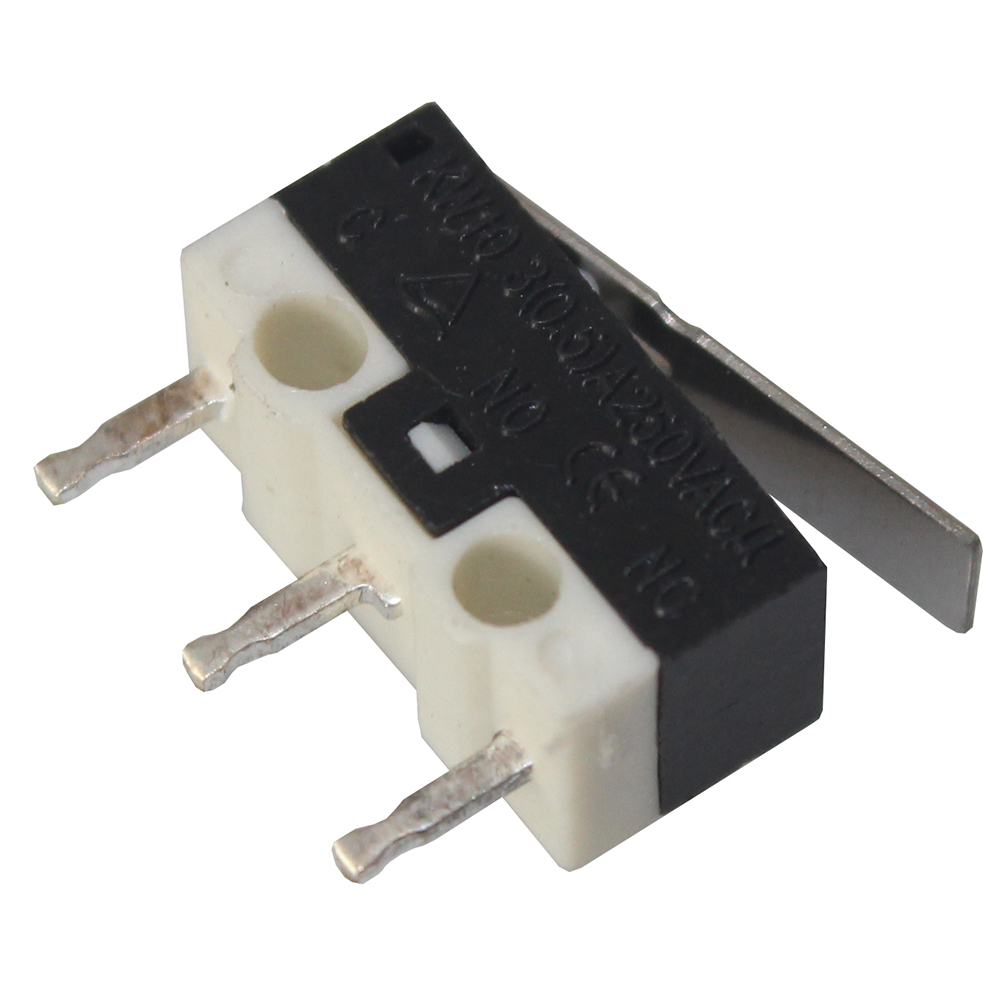

CSMU0106 - Ultra Miniature Microswitch
Ultra Miniature Microswitch, 3A, Parallel Lever Actuator, PCB Mount
- Rated 3A switching S.P.D.T.
- Space saving
- Button , lever or roller actuators
- PCB mounting
- 90 degree pins available to order
| External Length (mm) | 12.8 |
| External Width (mm) | 5.8 |
| External Height (mm) | 12 |
| Weight (G) | 1 |
| Base Material | PBT |
| Colour | Black |
| General Current Rating (A) | 3 |
| UL Current Rating (A) | 3 |
| UL Voltage Rating (V) | 125 |
| VDE Current Rating (A) | 3 |
| VDE Voltage Rating (V) | 125 |
| Terminal Type | PCB Mount |
| Special Features | Parallel Lever |
| Operating Temperature | -10 Deg C to 85 Deg C |
| Actuator | Parallel Lever |
3D Step Drawing
