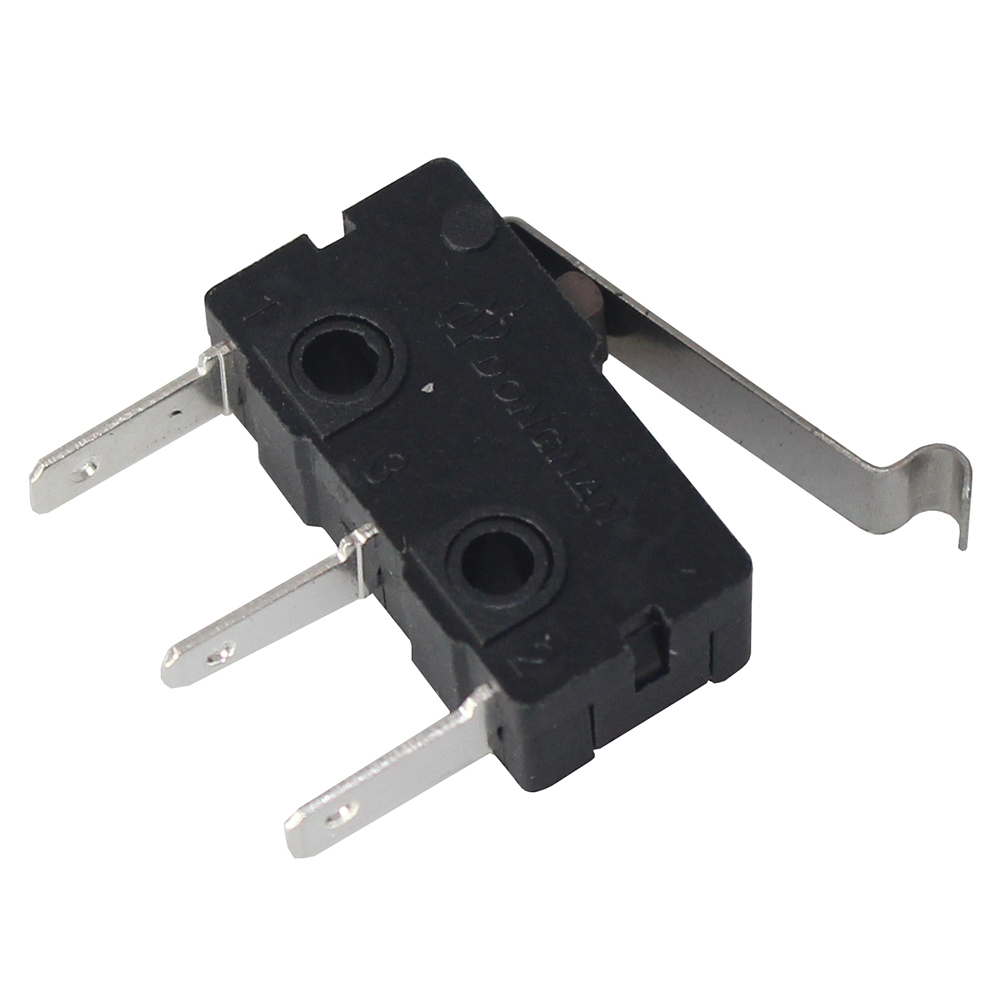

CSM40540E - V4 Type Microswitch
V4 Type Sub Miniature Microswitches 5A, Simulated Roller, 2.8mm Quick Connect Terminals
- Rated 5A switching S.P.D.T.
- Long life coil spring mechanism
- Solder, PCB, 90 degree PCB mounting, or 2.8mm quick connect terminals
- Button, lever or roller actuators
- UL approved
| External Length (mm) | 20 |
| External Width (mm) | 6.5 |
| External Height (mm) | 10.6 |
| Weight (G) | 2 |
| Base Material | PBT |
| Colour | Black |
| General Current Rating (A) | 5 |
| UL Current Rating (A) | 5 |
| UL Voltage Rating (V) | 250 |
| Terminal Type | 2.8mm Quick Connect |
| Special Features | Simulated Roller |
| Operating Temperature | -10 Deg C to 125 Deg C |
| Actuator | Simulated Roller |
3D Step Drawing
