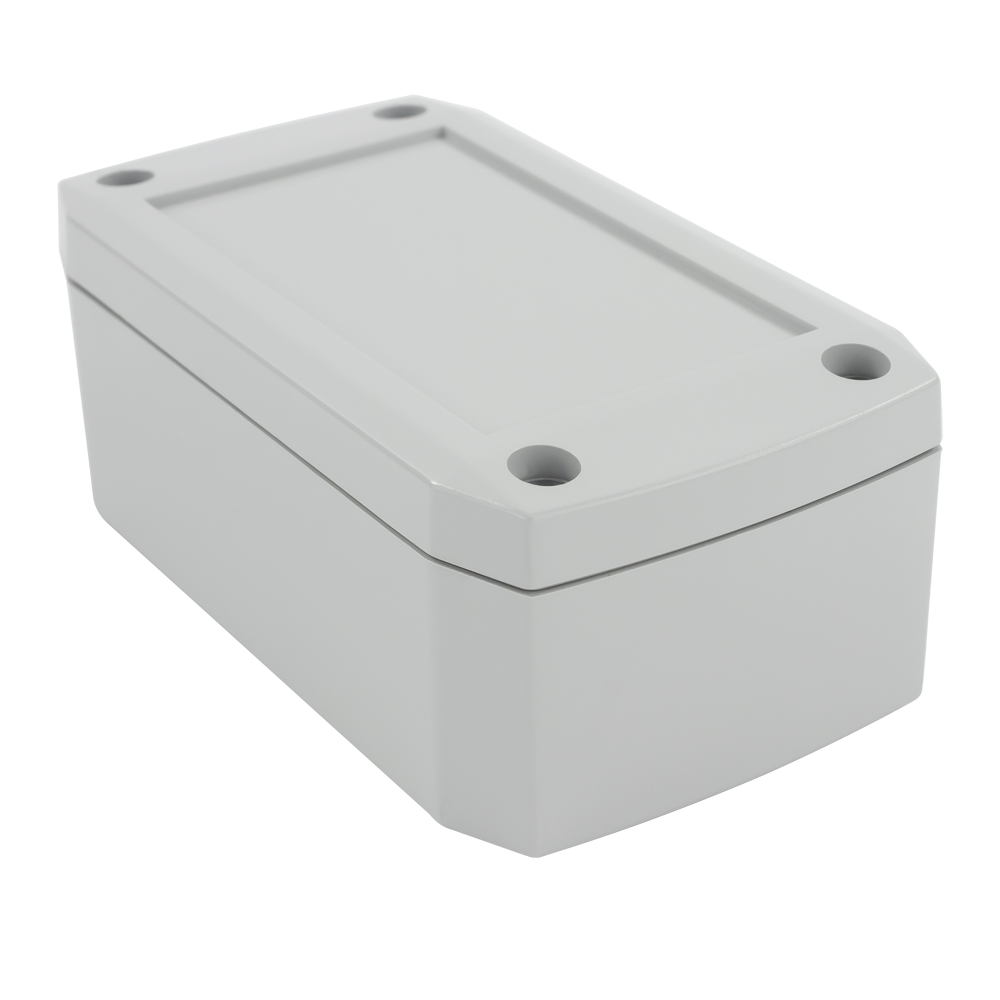

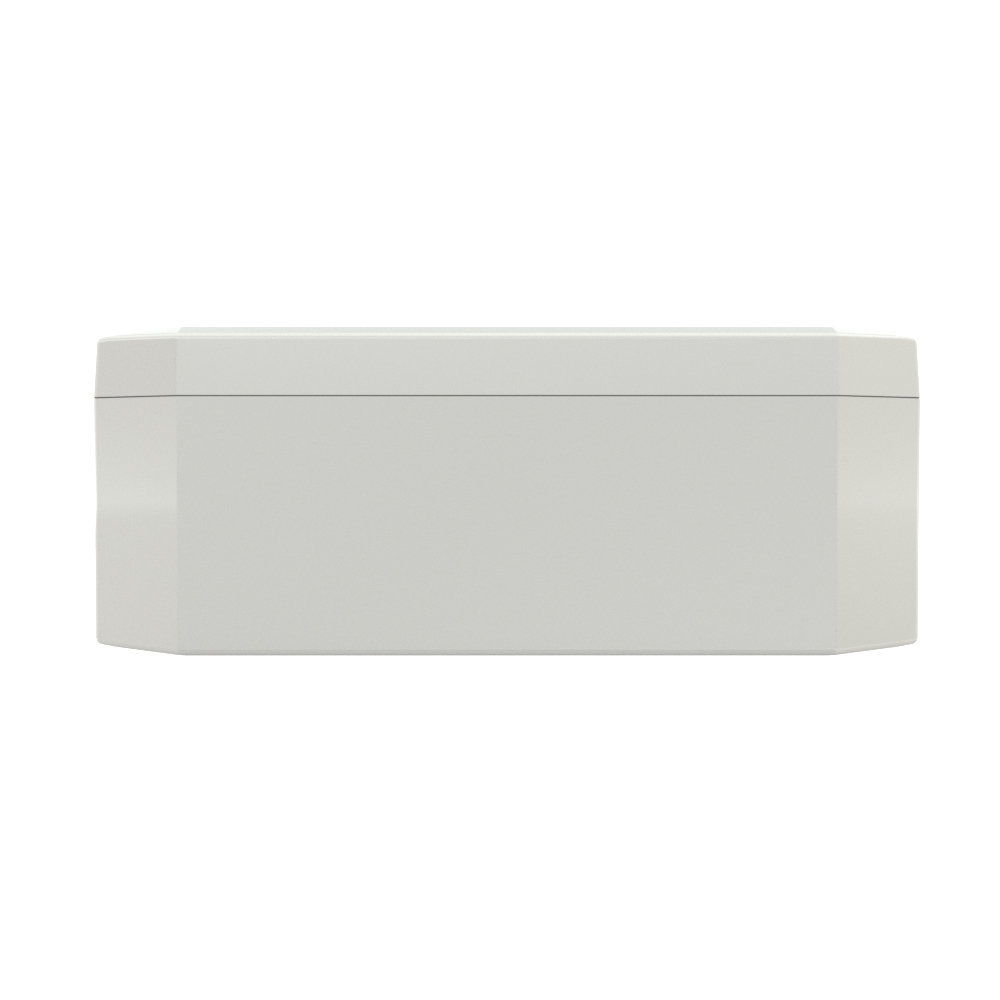

CSACST001 - 1100 Series Recessed Electronics Enclosure with Solid Lid, Grey, ABS UL94-V0, 90x50x35mm
1100 Series Recessed Electronics Enclosure is ideal for a range of user facing electronics devices and technology in industries such as industrial, medical and IoT.
- Designed with aesthetically pleasing external bevelled edges and smooth curved ends and straight sides
- Lid and base moulded in UL94-V0 ABS

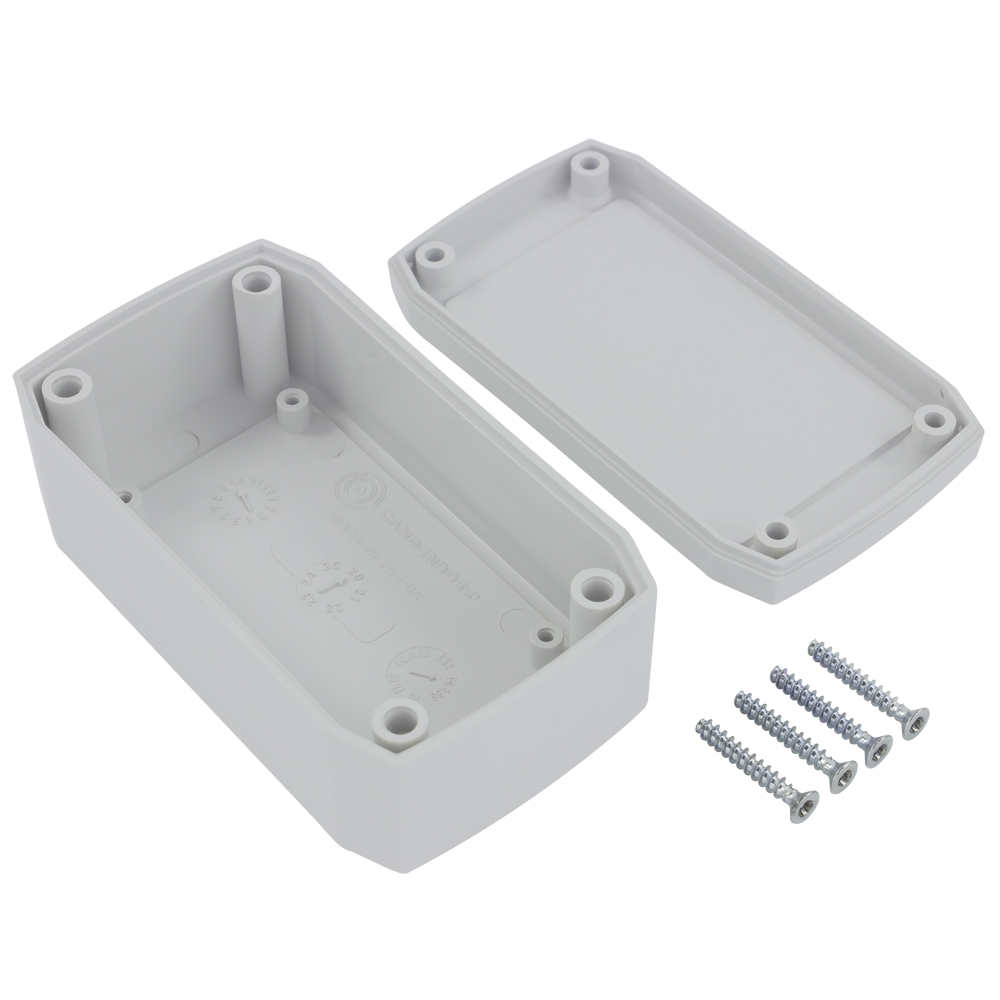

- Lid mounted by four thread forming screws

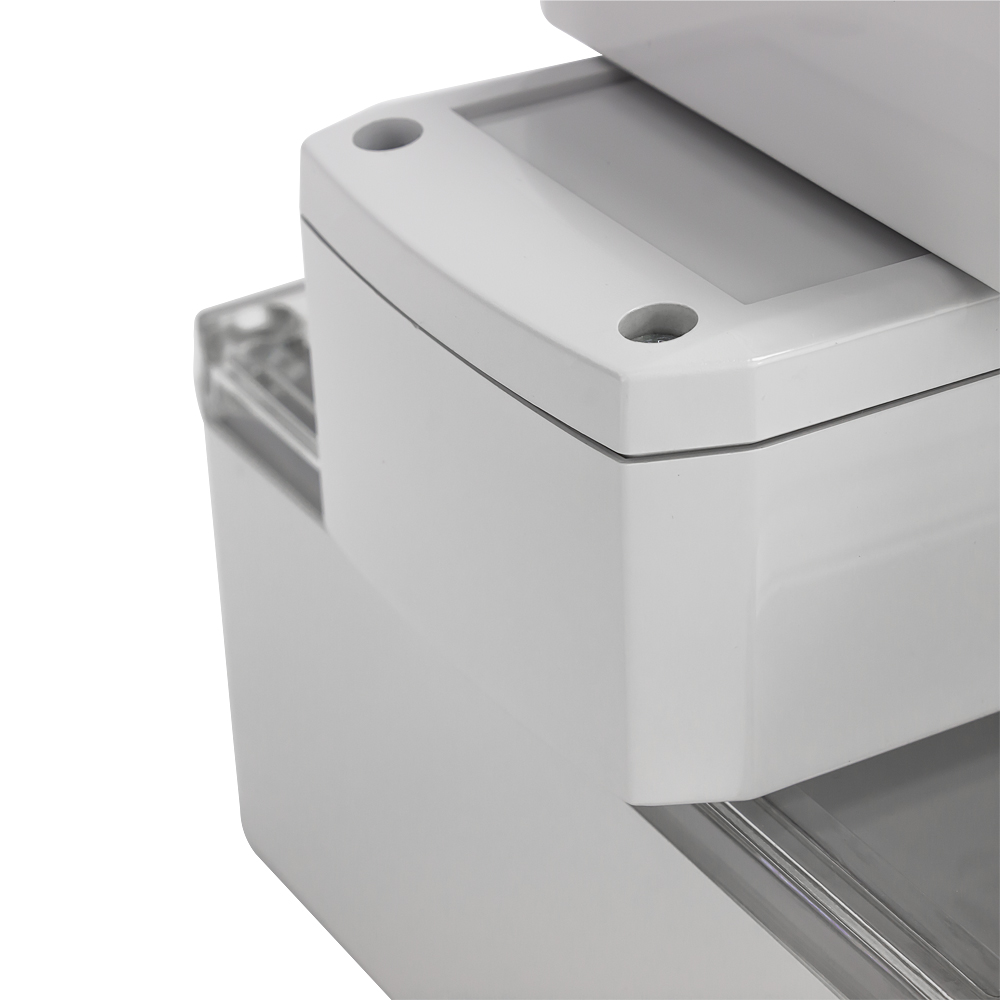

- 1.2mm recess in both the lid and base for product labels and overlays
- Deep profile maximises the internal volume for increased component and PCB space
- This enclosure is 100% recyclable and manufactured in the UK
- Plastic standoffs in base for mounting of PCBs
- Excellent properties for machining and customisation

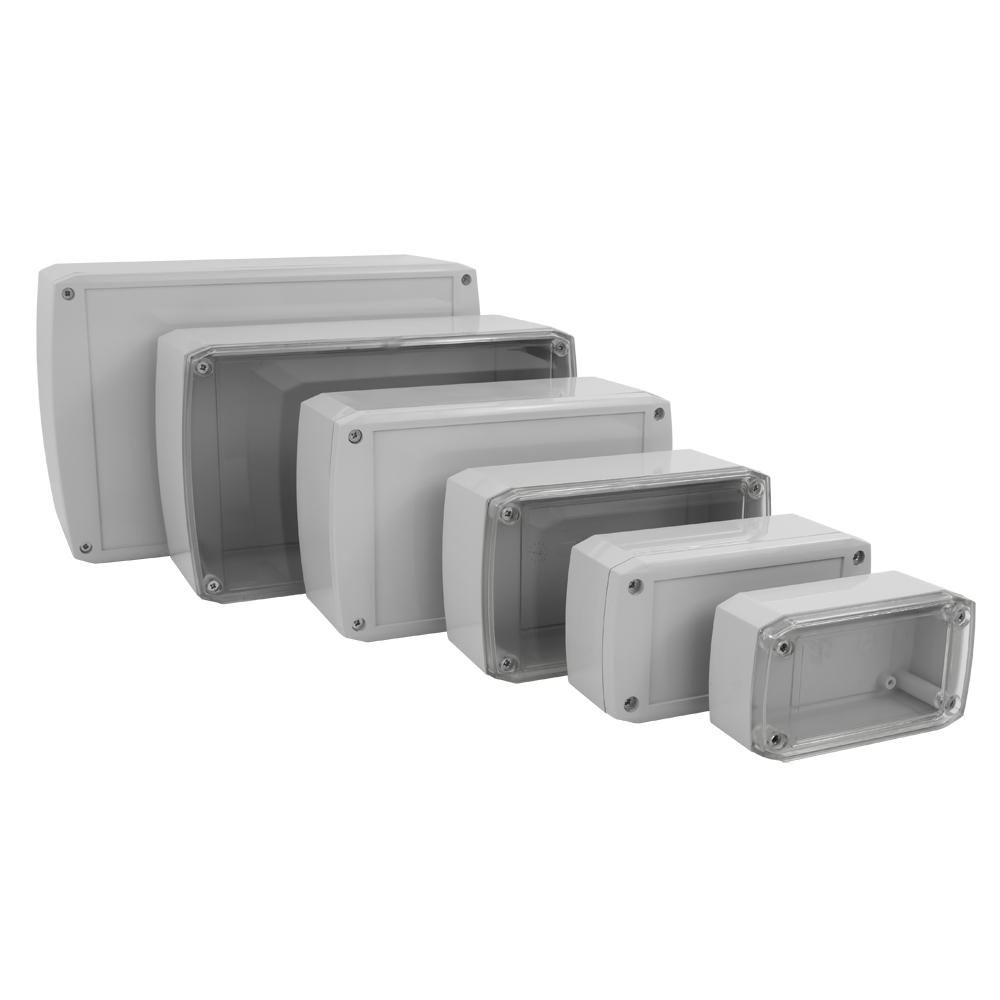

- Also available with a transparent lid
- 1100 series has been designed to meet the requirements of IP54
| External Length (mm) | 90 |
| External Width (mm) | 50 |
| External Height (mm) | 35 |
| Internal Length (mm) | 85 |
| Internal Width (mm) | 45 |
| Internal Height (mm) | 2.5 |
| Weight (G) | 54 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP54 |
| Brand | CamdenBoss |
| Size | 90 x 50 x 35 |
| Development Board | N/A |
| Wall Thickness (mm) | 2.5 |
| Country Of Origin | Great Britain (GB) |
1100 Series Recessed Electronics Enclosure
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
